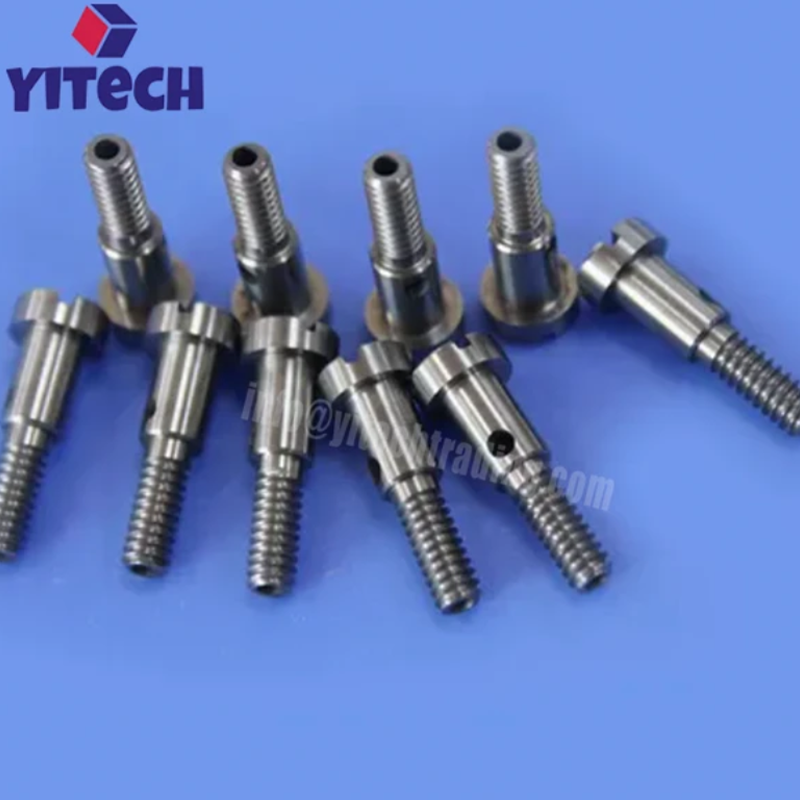

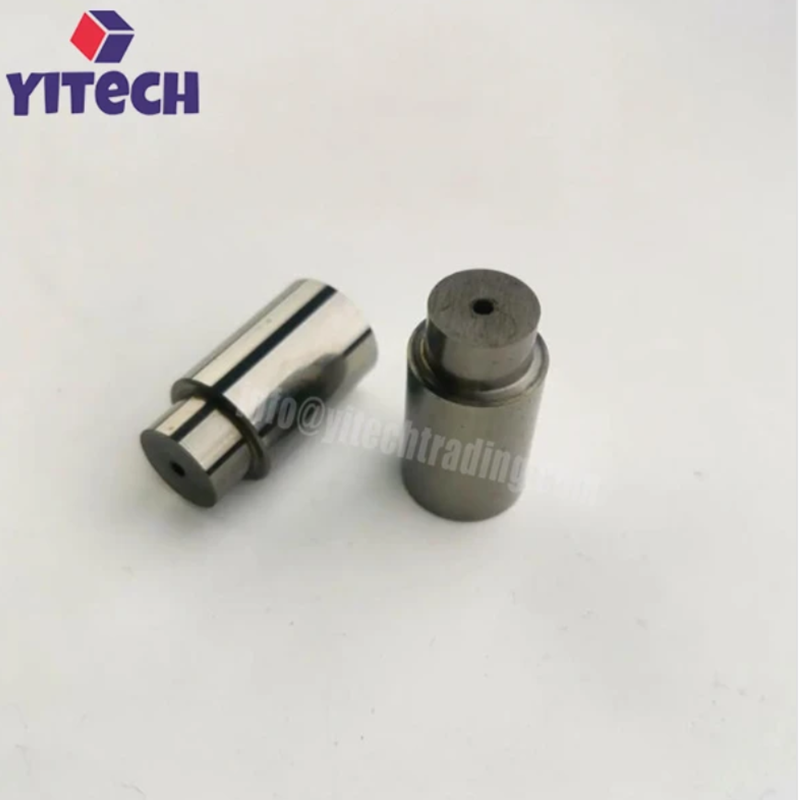

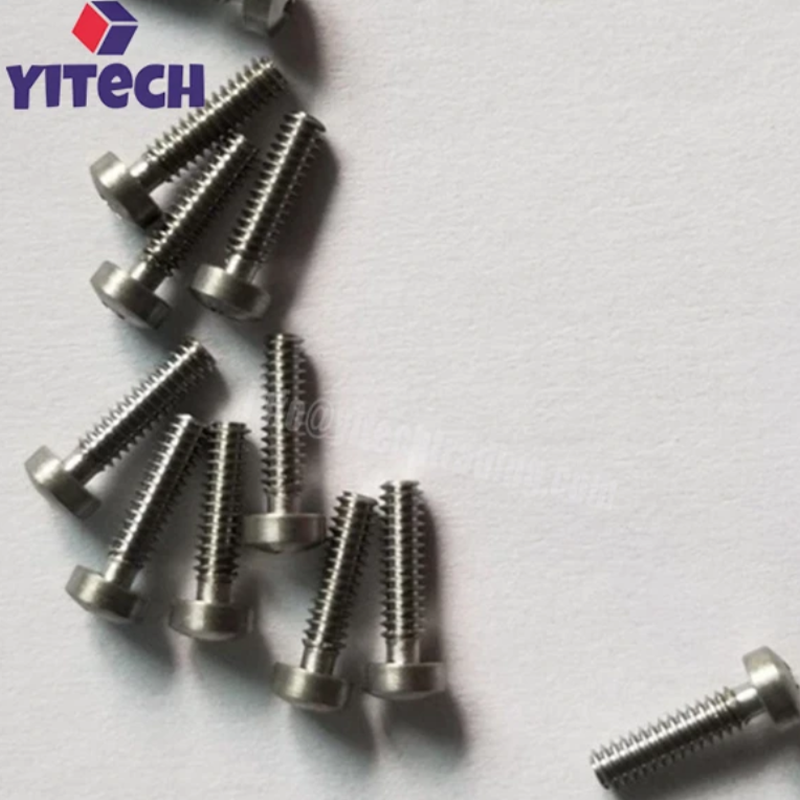

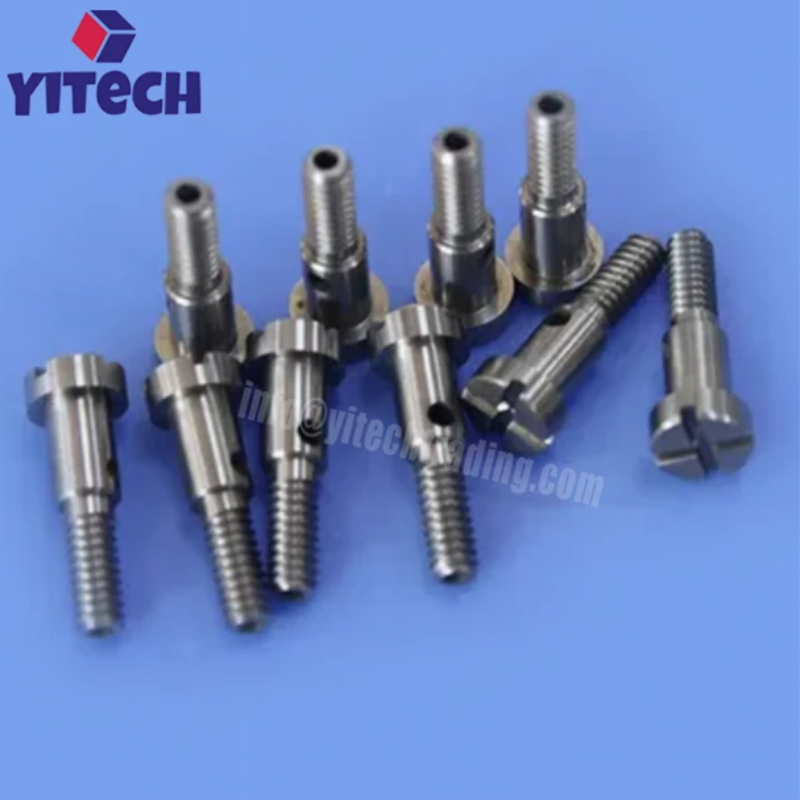

Wear Resistant Tungsten Carbide Fasteners
- High hardness HRA 86–93 for superior abrasion resistance
- Excellent corrosion resistance in acids, alkalis, and harsh chemicals
- High-temperature stability up to 800°C in vacuum or inert gas
- High compressive strength up to 6,000 MPa for high-load fastening
- Available in bolts, nuts, screws, studs, washers, and special shapes
- Tight tolerances down to ±0.005mm
- Coatings available: TiN, TiAlN, DLC, nickel
Description Of Wear Resistant Tungsten Carbide Fasteners
Wear Resistant Tungsten Carbide Fasteners are precision-engineered fastening components manufactured from tungsten carbide (WC) with a metallic cobalt or nickel binder through powder metallurgy and HIP (Hot Isostatic Pressing) sintering processes. These fasteners are specifically designed for applications where extreme wear, abrasion, and corrosion cause conventional steel or stainless steel fasteners to fail prematurely.
The exceptional wear resistance of tungsten carbide fasteners comes from the material’s extreme hardness (HRA 86–93) and high density (14.0–15.0 g/cm³). In abrasive environments — such as those found in chemical processing, mining, oil and gas drilling, and industrial machinery — carbide fasteners maintain their dimensions and clamping force far longer than steel fasteners. Depending on the application, tungsten carbide fasteners can outlast steel fasteners by 10 to 50 times.
Tungsten carbide fasteners also offer excellent corrosion resistance, making them suitable for chemical processing, marine, and other corrosive environments. Nickel-bonded grades (YWN series) provide enhanced corrosion resistance for highly aggressive media. For high-temperature applications, tungsten carbide fasteners maintain their mechanical properties at temperatures up to 800°C in vacuum or inert gas atmospheres.
Features Of Wear Resistant Tungsten Carbide Fasteners
Extreme Wear Resistance: Tungsten carbide fasteners outlast steel fasteners by 10 to 50 times in abrasive environments, significantly reducing replacement frequency and downtime.
Extreme Hardness: Hardness of HRA 86–93 provides superior abrasion resistance, maintaining dimensions and clamping force far longer than steel fasteners.
Excellent Corrosion Resistance: Tungsten carbide offers outstanding resistance to acids, alkalis, and harsh chemicals. Nickel-bonded grades are available for highly corrosive environments.
High-Temperature Stability: Tungsten carbide fasteners maintain their mechanical properties at temperatures up to 800°C in vacuum or inert gas atmospheres.
High Compressive Strength: With compressive strength up to 6,000 MPa, carbide fasteners withstand high loads without deformation.
Precision Machining: Tight tolerances down to ±0.005mm ensure proper fit and reliable performance in precision assemblies.
Wide Range of Fastener Types: Bolts, nuts, screws, studs, washers, and special-shaped fasteners are available.
Coatings Available: TiN, TiAlN, DLC, and nickel plating can be applied for enhanced performance.
100% Virgin Raw Materials: Manufactured from 100% virgin tungsten carbide powder, ensuring consistent quality and superior performance.
HIP Sintering Process: Advanced HIP sintering produces fasteners with uniform microstructure, minimal porosity, and superior mechanical properties.
Specifications Of Wear Resistant Tungsten Carbide Fasteners
| Parameter | Specification |
|---|---|
| Material | Tungsten carbide (WC) with cobalt or nickel binder |
| Hardness (HRA) | 86 – 93 (depending on grade) |
| Density | 13.9 – 15.1 g/cm³ (depending on grade) |
| TRS (N/mm²) | 1,450 – 3,500 (depending on grade) |
| Compressive Strength | Up to 6,000 MPa |
| Operating Temperature | Up to 800°C (vacuum/inert gas) |
| Tolerance | ±0.005 mm to ±0.01 mm |
| Thread Forms | Metric, UNC, UNF, BSP, custom |
| Fastener Types | Bolts, nuts, screws, studs, washers, special shapes |
| Sintering Process | HIP (Hot Isostatic Pressing) |
| Standard Compliance | ISO 9001:2015 |
