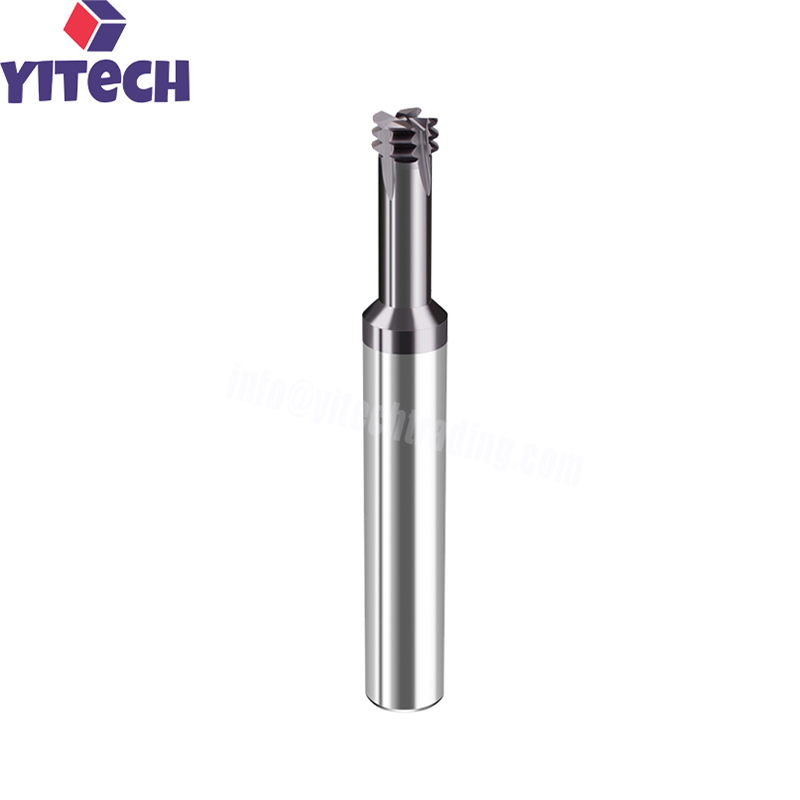

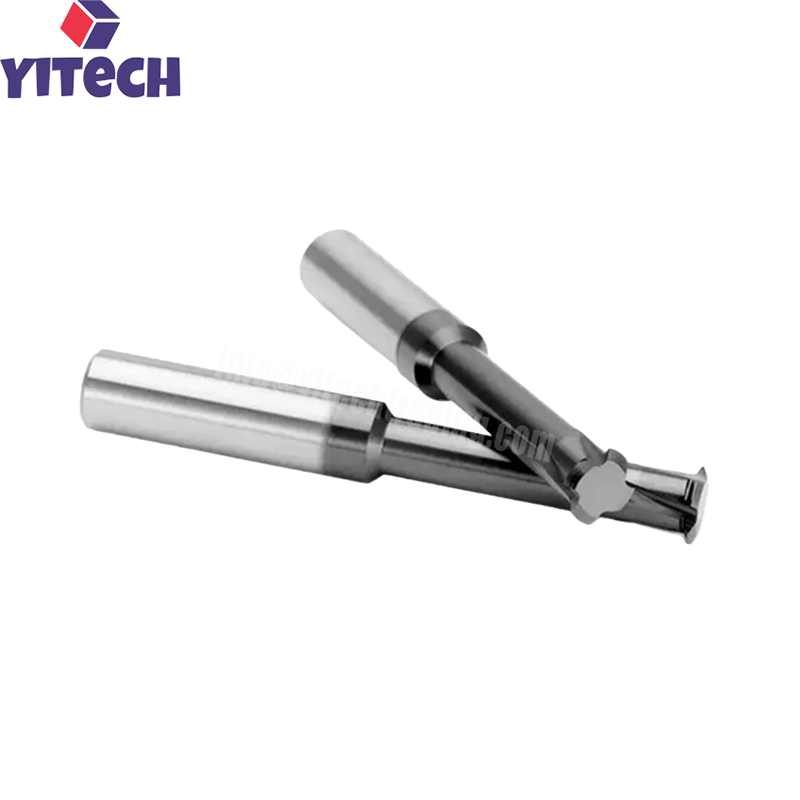

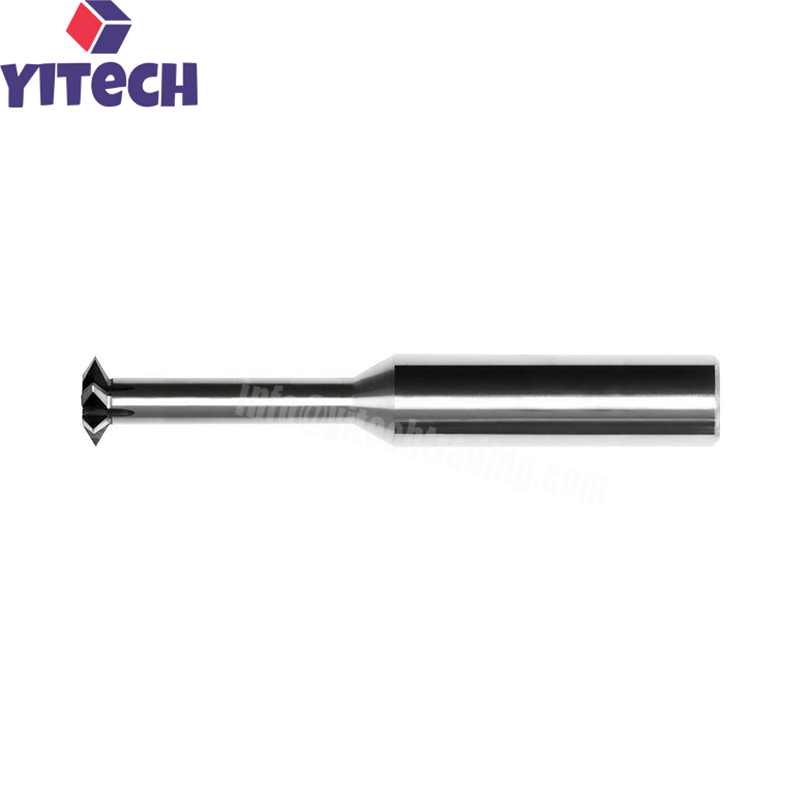

Tungsten Carbide Thread Milling Cutter Tool

Description Of Tungsten Carbide Thread Milling Cutter Tool

Tungsten Carbide Thread Milling Cutter Tool is a precision rotary cutting tool manufactured from tungsten carbide (WC) with a metallic cobalt binder through advanced powder metallurgy and HIP (Hot Isostatic Pressing) sintering processes. These tools are designed for CNC machining centers to produce internal and external threads by helical interpolation, offering significant advantages over traditional tapping methods.

Thread milling is a machining process where the tool rotates and follows a helical path to cut threads into a workpiece. Unlike taps, which cut the full thread profile in one pass and require reversal to remove, thread milling uses a single tool that gradually forms the thread as it moves along the helical path. This approach offers several key advantages: reduced cutting forces, better chip evacuation, the ability to machine threads in large diameters or thin-walled parts, and the ability to produce threads with the same tool across a range of diameters by adjusting the helical interpolation path.

The manufacturing process for tungsten carbide thread milling cutters begins with high-purity tungsten carbide powder (100% virgin raw material) with an ultra-fine grain size (typically 0.2–0.8 μm), mixed with a cobalt binder. The powder is ball-milled, pressed into cutter blanks, vacuum-sintered at high temperatures, and HIP-densified to achieve uniform microstructure and near-theoretical density. The tools are then precision-ground on advanced CNC grinding machines using diamond wheels to achieve the exact thread profile, rake angle, relief angle, and edge preparation. Coatings such as TiAlN, TiCN, or DLC are applied to further enhance tool life.

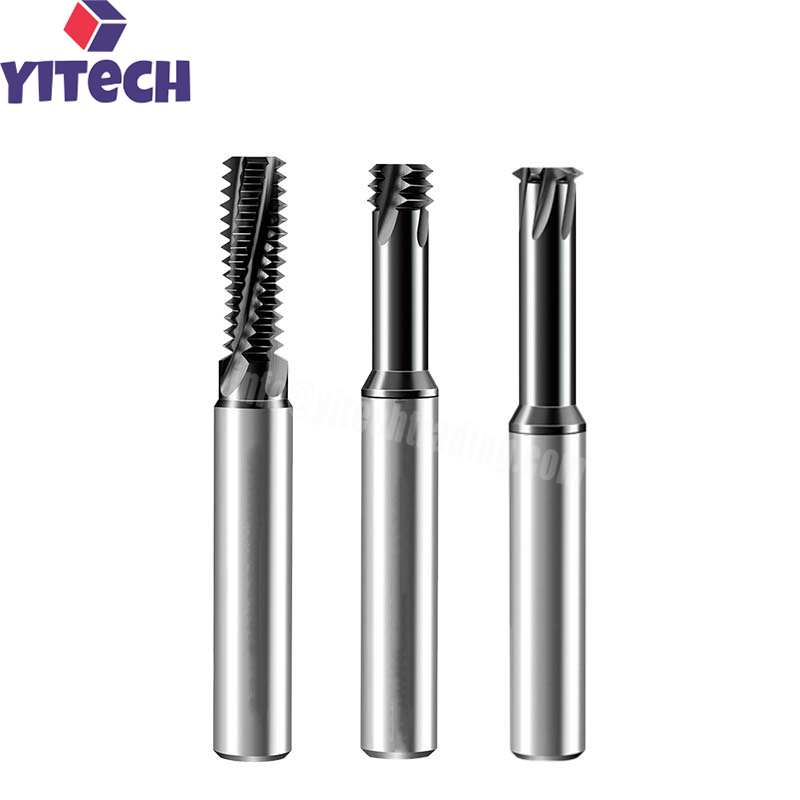

Tungsten carbide thread milling cutters are available in single-profile, multi-profile, and full-profile designs to suit different thread types, sizes, and machining requirements.

Features Of Tungsten Carbide Thread Milling Cutter Tool

Ultra-Fine Grain Structure: Grain size typically 0.2–0.8 μm, providing higher hardness, better edge retention, and improved surface finish for thread milling applications.

Extreme Hardness: Hardness up to HRA 93.5, enabling superior wear resistance and extended tool life in hard materials.

Single-Profile Design: One tool can machine multiple thread diameters and pitches by adjusting the helical interpolation path, reducing tool inventory and setup time.

Multi-Profile Design: Multiple cutting edges along the tool length enable faster thread milling and improved productivity for through-holes.

Full-Profile Design: Cutting edges match the complete thread form, producing threads in a single pass for maximum efficiency.

Reduced Cutting Forces: Thread milling generates significantly lower cutting forces than tapping, making it ideal for thin-walled parts, large diameters, and unstable setups.

Excellent Chip Evacuation: The helical cutting path and tool geometry promote efficient chip evacuation, reducing the risk of chip recutting and tool breakage.

Internal Coolant Options: Available with internal coolant holes for deep-hole threading and improved chip evacuation.

100% Virgin Raw Materials: Manufactured from 100% virgin tungsten carbide powder with ultra-fine grain size, ensuring consistent quality and superior performance.

Applications Of Tungsten Carbide Thread Milling Cutter Tool

CNC Thread Milling: Tungsten carbide thread milling cutters are widely used in CNC machining centers for producing internal and external threads in a single setup. They are essential for industries requiring high-precision threads, including aerospace, automotive, medical, and energy.

Large Diameter Threads: Thread milling is ideal for large diameter threads where taps would be too expensive or impractical. A single thread mill can produce a range of thread diameters by adjusting the helical interpolation path.

Thin-Walled and Unstable Parts: Carbide thread mills reduce cutting forces compared to taps, making them suitable for thin-walled components, irregular shapes, and parts that are difficult to clamp securely.

Hard Materials: Thread mills are effective for machining threads in hardened steel, titanium alloys, nickel-based alloys, and other difficult-to-cut materials.

Blind Holes and Difficult Access: Thread milling can produce threads in blind holes and hard-to-reach areas where tap breakage is a risk.

Repair and Rework: Thread mills are ideal for repairing damaged threads or reworking existing threads without the need for a full re-tap.
