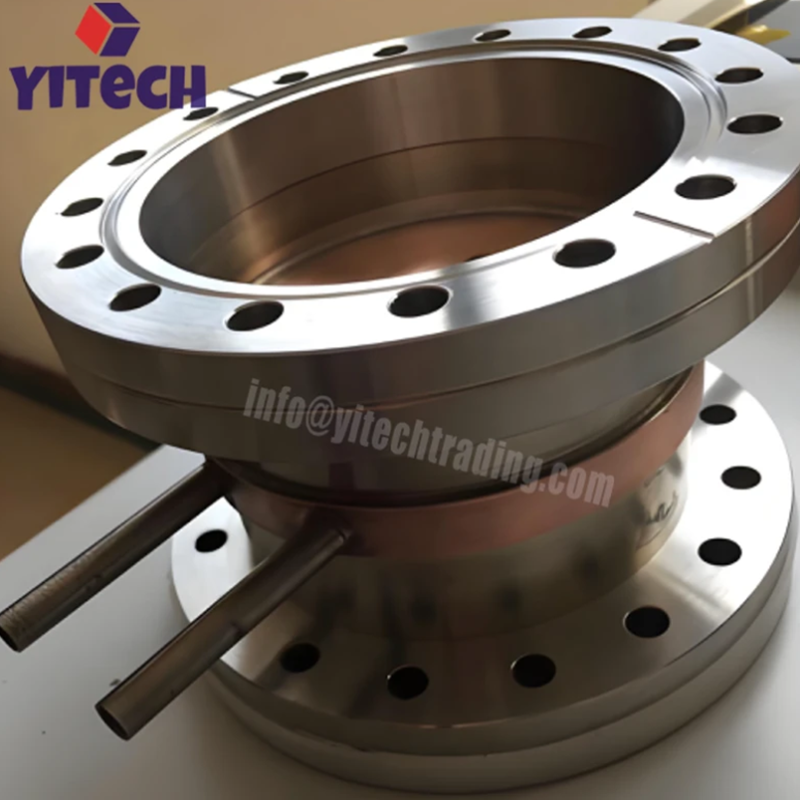

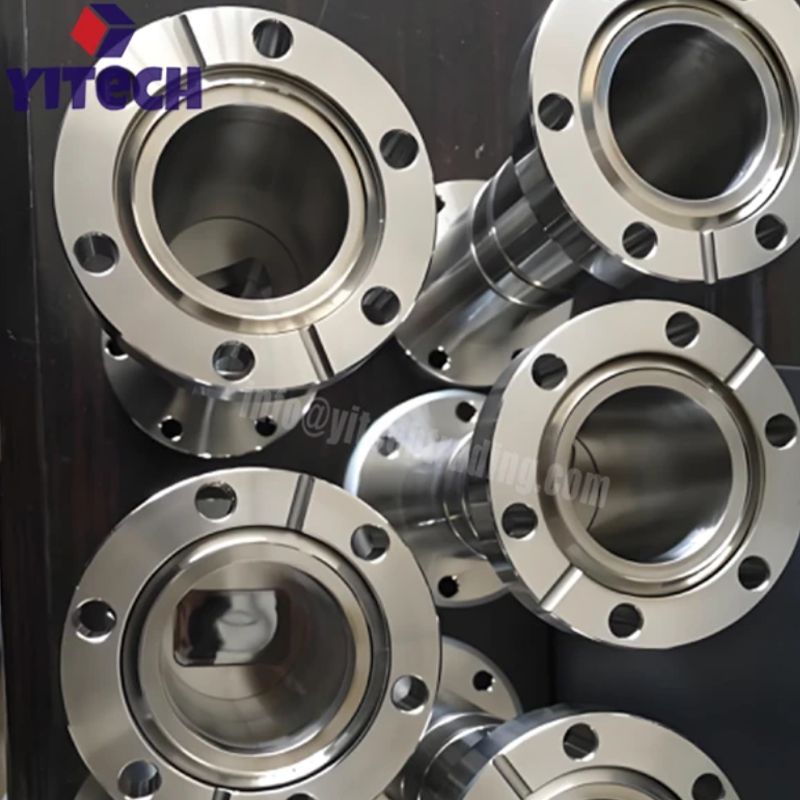

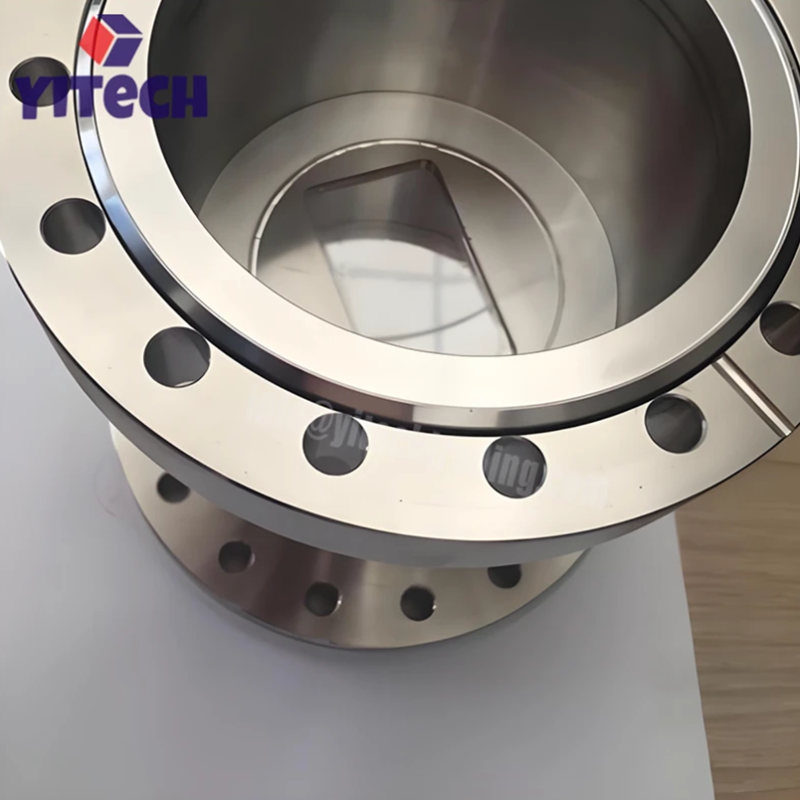

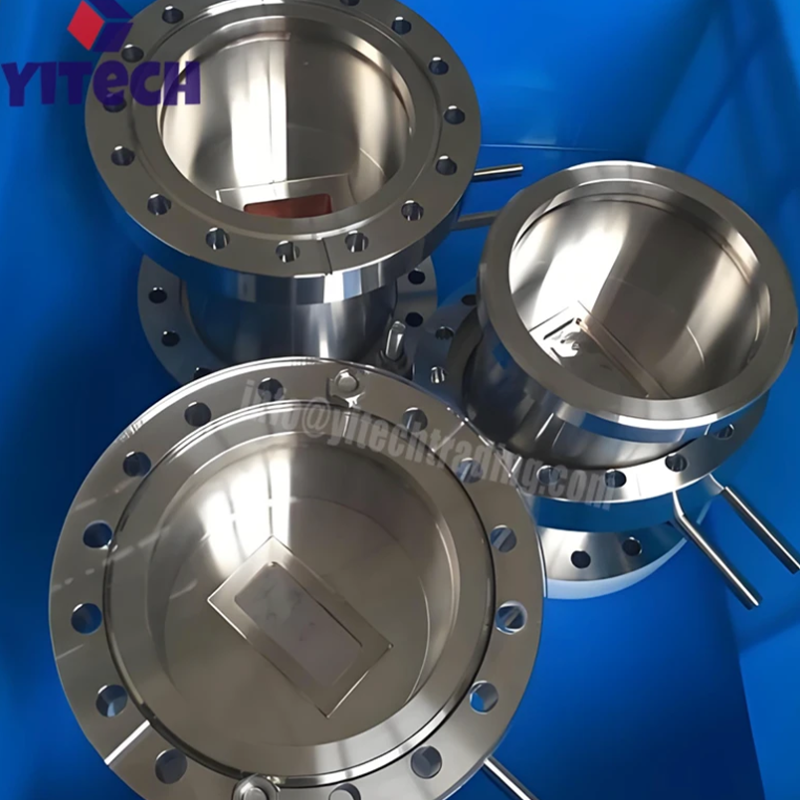

CF Flange Beryllium Window
- CF flange beryllium window for ultra-high vacuum (UHV) applications
- Diffusion bonded construction for reliable vacuum tightness
- Leak tested to < 3×10⁻¹⁰ mbar·L/s
- Available in IF-5 (99.5%) and PF-60 (99.0%) purity grades
- Thickness from 8μm for high X-ray transmissivity
- Compatible with standard CF flange sizes (CF35, CF63, CF100, etc.)
- Ideal for synchrotron beamlines, X-ray detectors, and semiconductor inspection
- Custom sizes and flange configurations available
- Cleaned and packaged for UHV service
- ISO 9001 certified manufacturing
Description Of CF Flange Beryllium Window
CF Flange Beryllium Window is a precision-engineered window assembly designed for ultra-high vacuum (UHV) applications. It consists of a high-purity beryllium foil diffusion bonded to a CF (ConFlat) flange, providing a reliable vacuum seal while allowing high X-ray transmissivity. Beryllium is a lightweight, silver-grey metal with a density of 1.848 g/cm³, excellent X-ray transmissivity, and superior mechanical strength.
The diffusion bonding process creates a metallurgical bond between the beryllium foil and the flange, eliminating the need for adhesives or gaskets that could outgas or fail in UHV conditions. This construction ensures reliable vacuum tightness with leak rates below 3×10⁻¹⁰ mbar·L/s, making it ideal for synchrotron beamlines, X-ray detectors, and semiconductor inspection equipment.
CF flange beryllium windows are available in standard CF flange sizes (CF35, CF63, CF100, etc.) and custom configurations. Beryllium foil thickness from 8μm is available, with purity grades including IF-5 (99.5%) and PF-60 (99.0%). All windows are cleaned and packaged for UHV service, with full material certification and leak testing.
Features Of CF Flange Beryllium Window
Diffusion Bonded Construction: Metallurgical bond between beryllium foil and CF flange, eliminating adhesives and gaskets.
Vacuum Tight: Leak rate < 3×10⁻¹⁰ mbar·L/s, suitable for UHV applications.
High Purity: Available in IF-5 (99.5%) and PF-60 (99.0%) grades.
Ultra-Thin Foil: Thickness from 8μm for high X-ray transmissivity.
Standard CF Flange Compatibility: Available in CF35, CF63, CF100, and other standard sizes.
Customizable: Custom sizes and flange configurations available.
Cleaned for UHV Service: Cleaned and packaged to minimize outgassing.
Leak Tested: Each window is individually leak tested and certified.
ISO 9001 Certified: Full traceability and quality assurance.
Specifications Of CF Flange Beryllium Window
| Parameter | Specification |
|---|---|
| Material | Beryllium (Be) foil, diffusion bonded to CF flange |
| Purity Grades | IF-5 (99.5%), PF-60 (99.0%) |
| Density | 1.848 g/cm³ |
| Melting Point | 1277°C |
| Thermal Conductivity | 2.01 W/cm/K |
| Thermal Expansion | 11.3 µm/(m·K) |
| Foil Thickness | From 8 μm (customizable) |
| Flange Type | CF (ConFlat) |
| Flange Sizes | CF35, CF63, CF100, custom |
| Leak Rate | < 3×10⁻¹⁰ mbar·L/s |
| Surface Finish | As-rolled, vacuum-tight |
| Certification | ISO 9001 |
