Beryllium Metal Disc | High Purity Beryllium Disc Supplier
- High-purity beryllium metal disc with 99.9% purity (3N grade)
- Low density 1.848 g/cm³ — ideal for X-ray window applications
- High X-ray transmissivity for low-energy X-ray detection
- Excellent vacuum tightness with leak rate < 3×10⁻¹⁰ mbar·L/s
- Available in ultra-thin gauges from 8μm
- Disc shape for direct mounting in X-ray detector windows
- Superior strength-to-weight ratio and corrosion resistance
- Ideal for X-ray detectors, EDXRF, WDXRF, XRD, and medical imaging
Description Of Beryllium Metal Disc

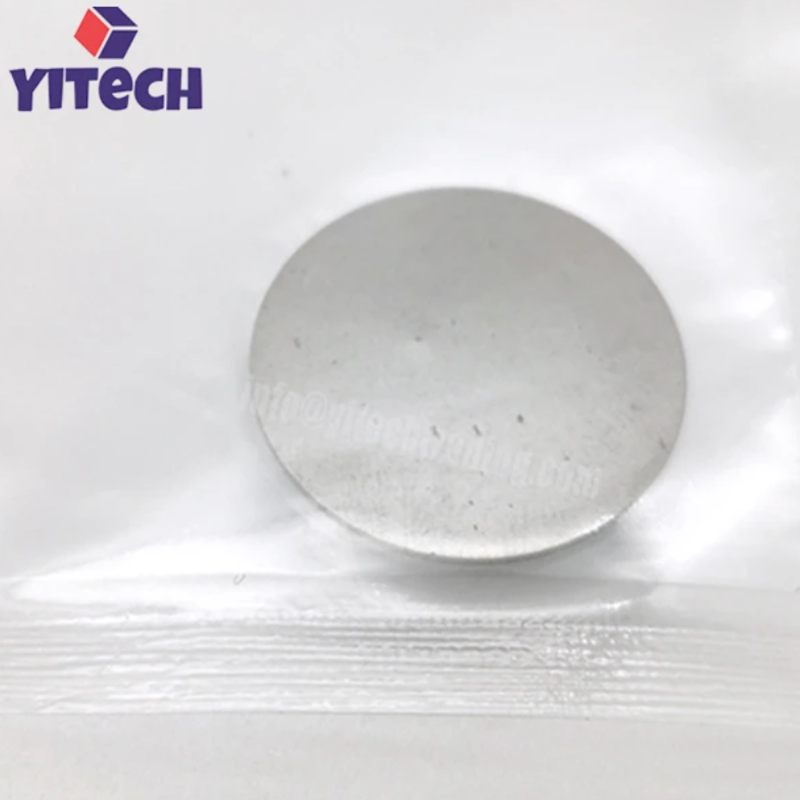

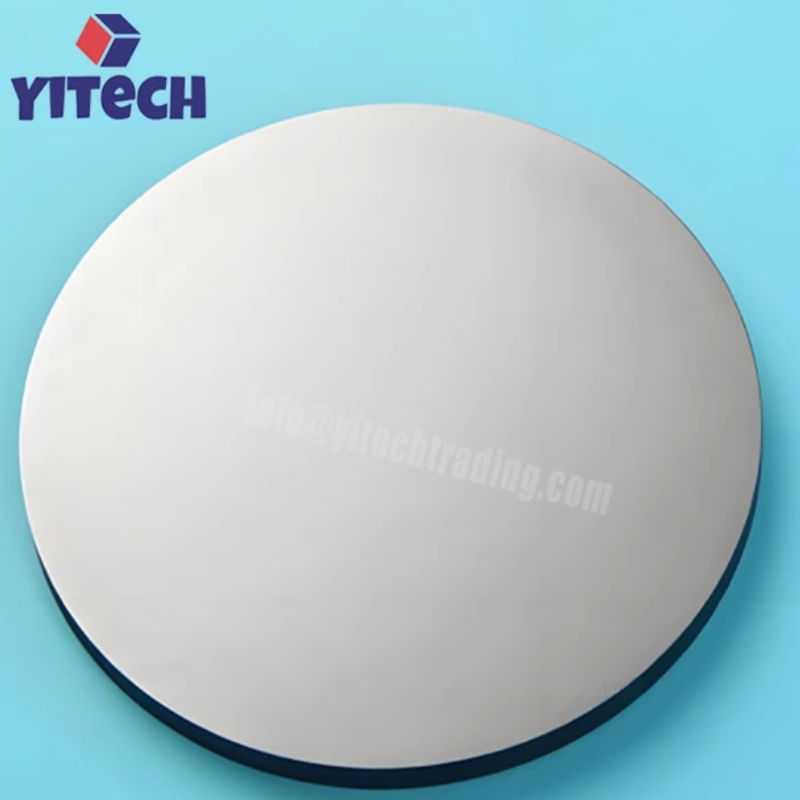

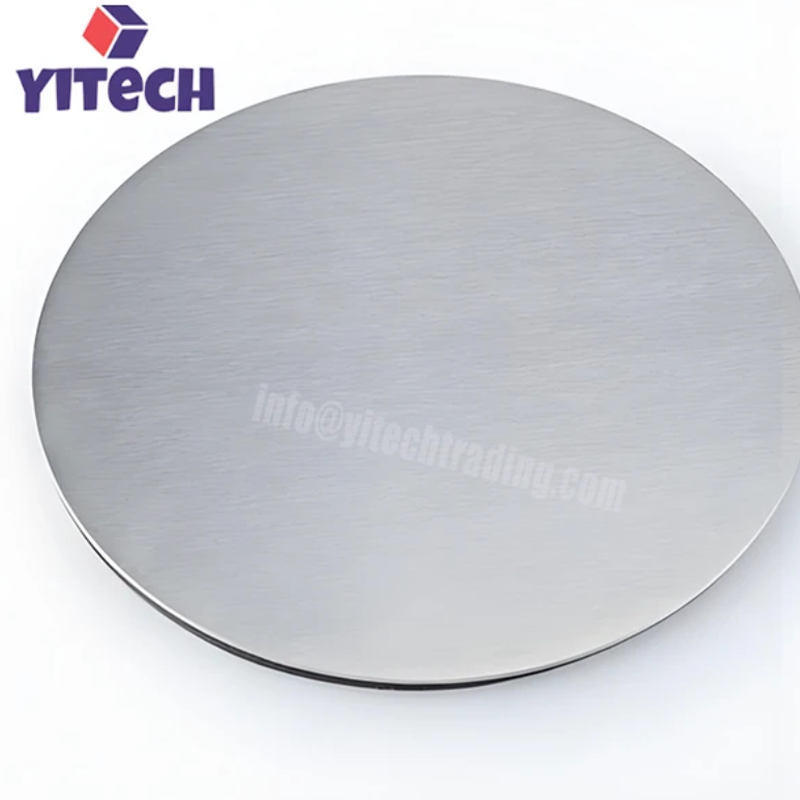

Beryllium Metal Disc is a high-purity beryllium metal disc specifically designed for X-ray window applications. Beryllium is a lightweight, silver-grey metal with a density of 1.848 g/cm³, excellent X-ray transmissivity, and superior mechanical strength. The disc shape allows for direct mounting into X-ray detector windows without additional cutting or shaping.
Beryllium offers a unique combination of properties that make it ideal for X-ray window applications. With low density and low atomic number (Z=4), beryllium provides high transmissivity for low-energy X-rays, minimizing spectral contamination and improving detection sensitivity. The material also offers high strength even in thin gauges, excellent vacuum tightness, and good thermal stability.
High purity beryllium metal discs are available in ultra-thin gauges from 8μm, with custom diameters and thicknesses available upon request. Surface finishes include as-rolled, vacuum-tight, and optically-dense. Typical applications include X-ray detectors (EDXRF, WDXRF, XRD), medical imaging systems, X-ray tubes, and analytical instruments.
Features Of Beryllium Metal Disc
High Purity: 99.9% purity (3N grade), ensuring minimal spectral contamination in X-ray analysis.
Disc Shape: Circular disc design for direct mounting into X-ray detector windows, eliminating additional cutting or shaping.
Low Density: 1.848 g/cm³, enabling high X-ray transmissivity for low-energy detection.
Ultra-Thin Gauges: Available from 8μm, ideal for high-resolution X-ray windows.
Excellent Vacuum Tightness: Leak rate < 3×10⁻¹⁰ mbar·L/s for reliable vacuum isolation.
High Strength: Superior mechanical strength even in thin gauges, withstanding pressure differentials.
Corrosion Resistance: Resists moisture, solvents, and many chemicals (coated options available).
Customizable Dimensions: Custom diameters and thicknesses available per customer requirements.
Surface Options: As-rolled, vacuum-tight, optically-dense.
ISO 9001 Certified: Full traceability and quality assurance.
Specifications Of Beryllium Metal Disc
| Parameter | Specification |
|---|---|
| Material | Beryllium (Be) |
| Purity | ≥99.9% (3N grade) |
| Density | 1.848 g/cm³ |
| Melting Point | 1277°C |
| Boiling Point | 2970°C |
| Young's Modulus | 287 GPa |
| Thermal Conductivity | 2.01 W/cm/K |
| Thermal Expansion | 11.3 µm/(m·K) |
| Electrical Resistivity | 4.0 µΩ·cm |
| Shape | Disc / Round |
| Thickness Range | From 8 μm (customizable) |
| Diameter Range | Customizable |
| Surface Finish | As-rolled, vacuum-tight, optically-dense |
| Certification | ISO 9001 |
