Description Of High Purity Beryllium X-Ray Wafer

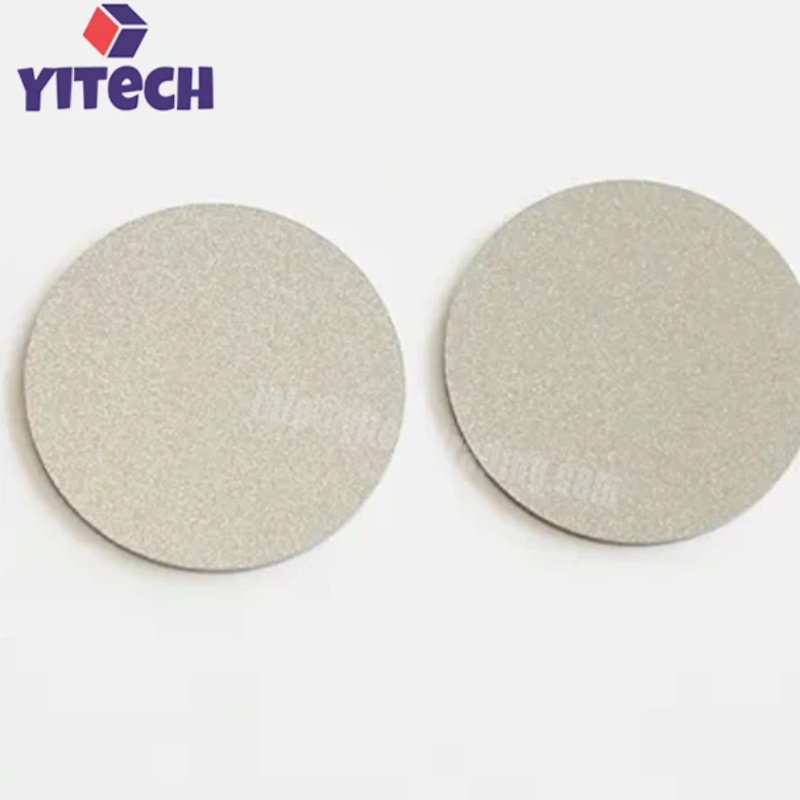

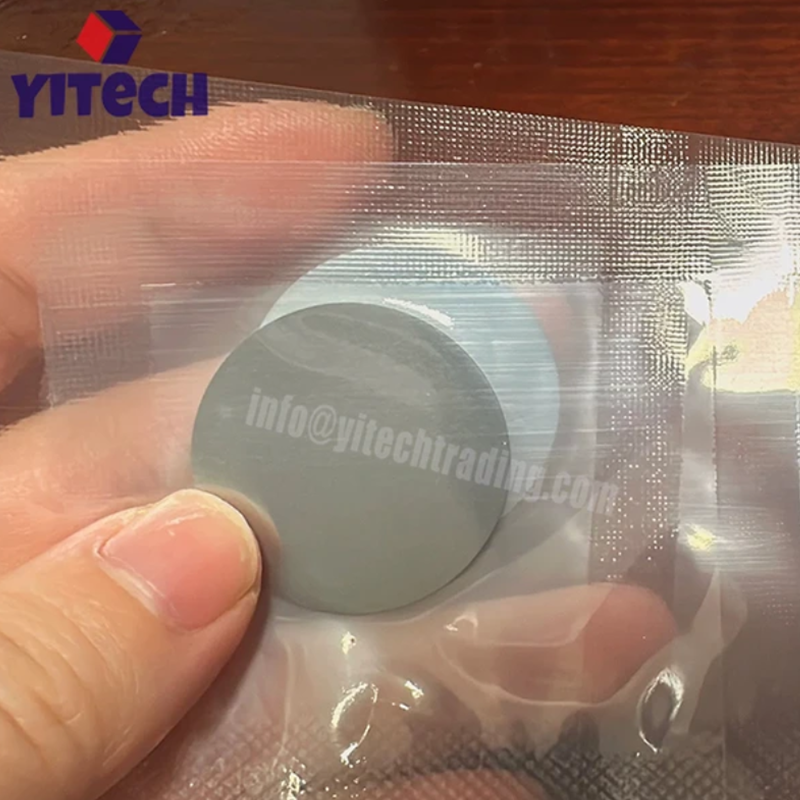

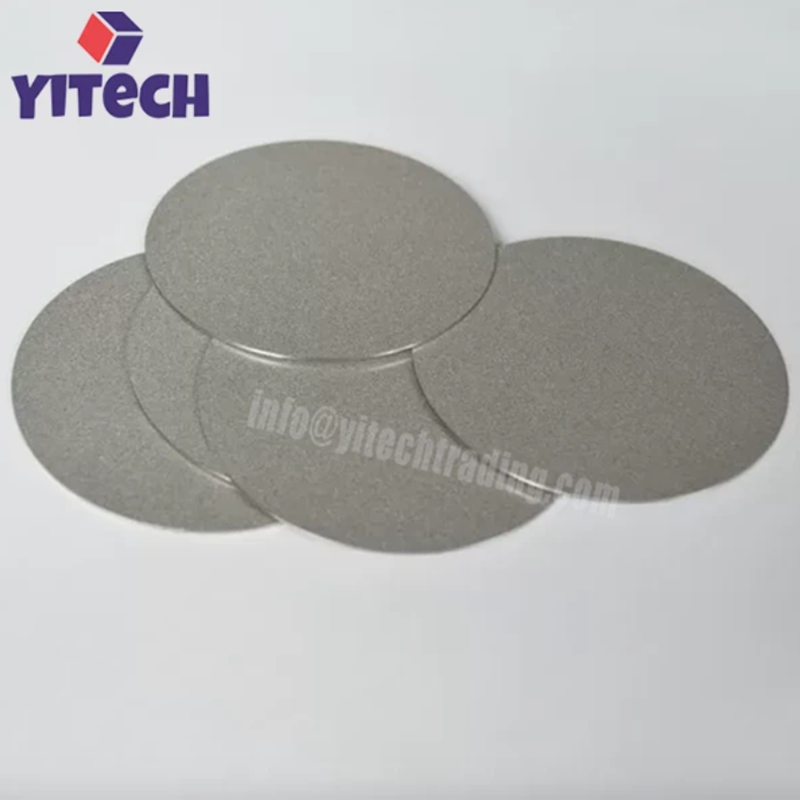

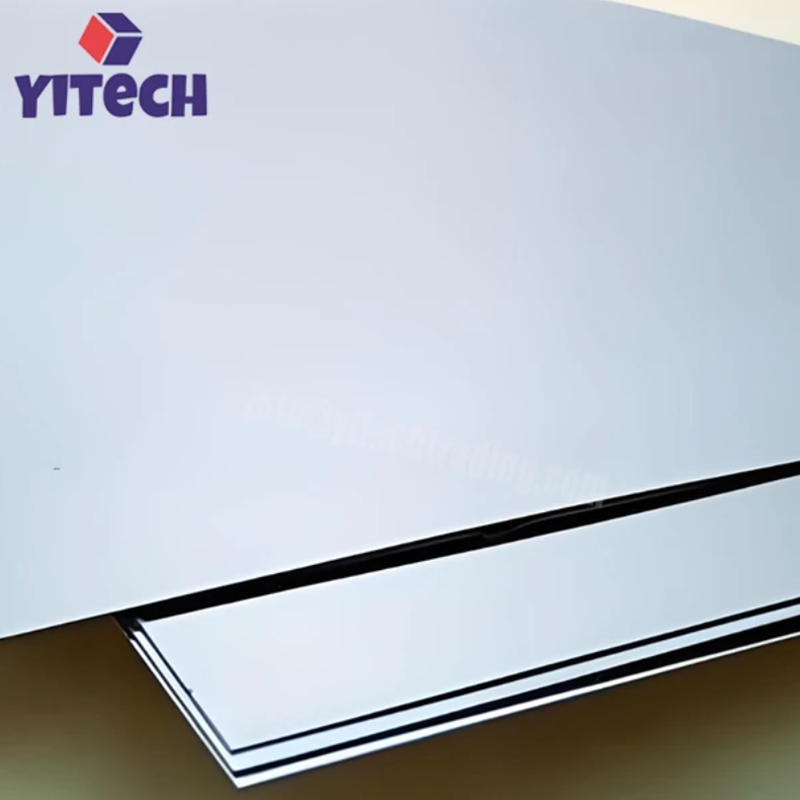

Beryllium X-Ray Window is a thin, high-purity beryllium component specifically designed for X-ray window applications. Beryllium is a lightweight, silver-grey metal with a density of 1.848 g/cm³, excellent X-ray transmissivity, and superior mechanical strength. These windows are widely used in X-ray detectors, spectrometers, and medical imaging equipment.

Beryllium offers a unique combination of properties that make it ideal for X-ray window applications. With low density and low atomic number (Z=4), beryllium provides high transmissivity for low-energy X-rays, minimizing spectral contamination and improving detection sensitivity. The material also offers high strength even in thin gauges, excellent vacuum tightness, and good thermal stability.

High purity beryllium X-ray windows and wafers are available in ultra-thin gauges from 8μm, with surface finishes including as-rolled, vacuum-tight, and optically-dense. Custom sizes and shapes are available upon request. Typical applications include X-ray detectors (EDXRF, WDXRF, XRD), medical imaging systems, X-ray tubes, and analytical instruments.

Features Of High Purity Beryllium X-Ray Wafer

• High Purity: 99.9% purity (3N grade), ensuring minimal spectral contamination in X-ray analysis.

• Low Density: 1.848 g/cm³, enabling high X-ray transmissivity for low-energy detection.

• Ultra-Thin Gauges: Available from 8μm, ideal for high-resolution X-ray windows.

• Excellent Vacuum Tightness: Leak rate < 3×10⁻¹⁰ mbar·L/s for reliable vacuum isolation.

• High Strength: Superior mechanical strength even in thin gauges, withstanding pressure differentials.

• Corrosion Resistance: Resists moisture, solvents, and many chemicals (coated options available).

Precautions Of High Purity Beryllium X-Ray Wafer

• Health Hazards: Beryllium is a toxic material. Inhalation of beryllium dust or fumes can cause serious lung disease (berylliosis). Use in well-ventilated areas or fume hoods. Wear appropriate personal protective equipment (PPE), including gloves and respirators.

• Handling and Storage: Handle beryllium X-ray windows with care to avoid generating dust or particles. Store in a dry, clean environment, away from strong acids and bases.

• Cleaning: Clean with high-purity solvents (methanol, isopropanol, or ethanol). Avoid abrasive cleaners that could damage the surface or generate dust.

• Temperature Limitations: Beryllium windows should be used within the recommended temperature range. Coated options provide better high-temperature endurance.
