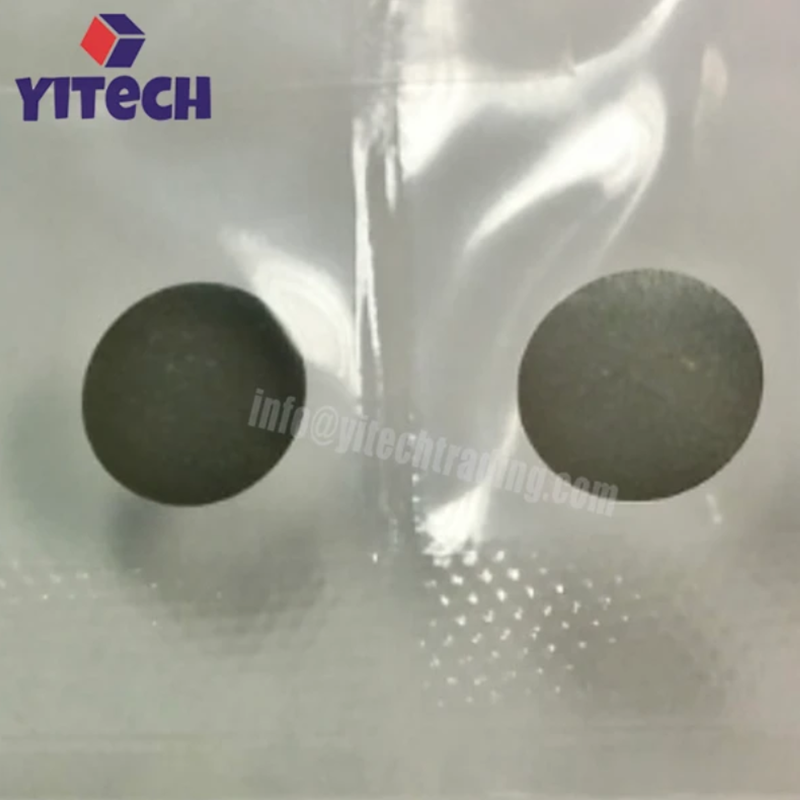

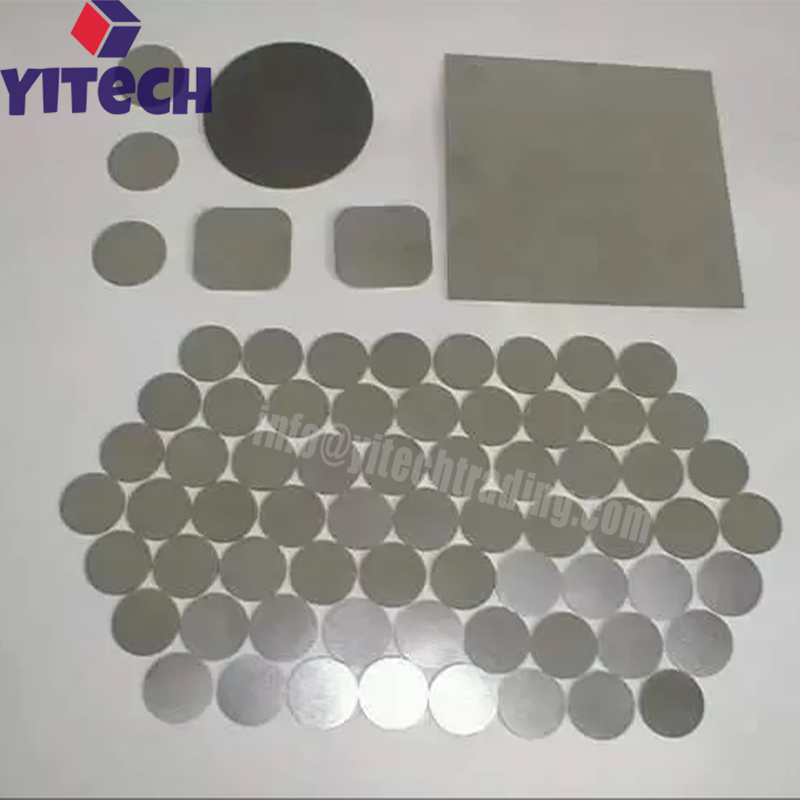

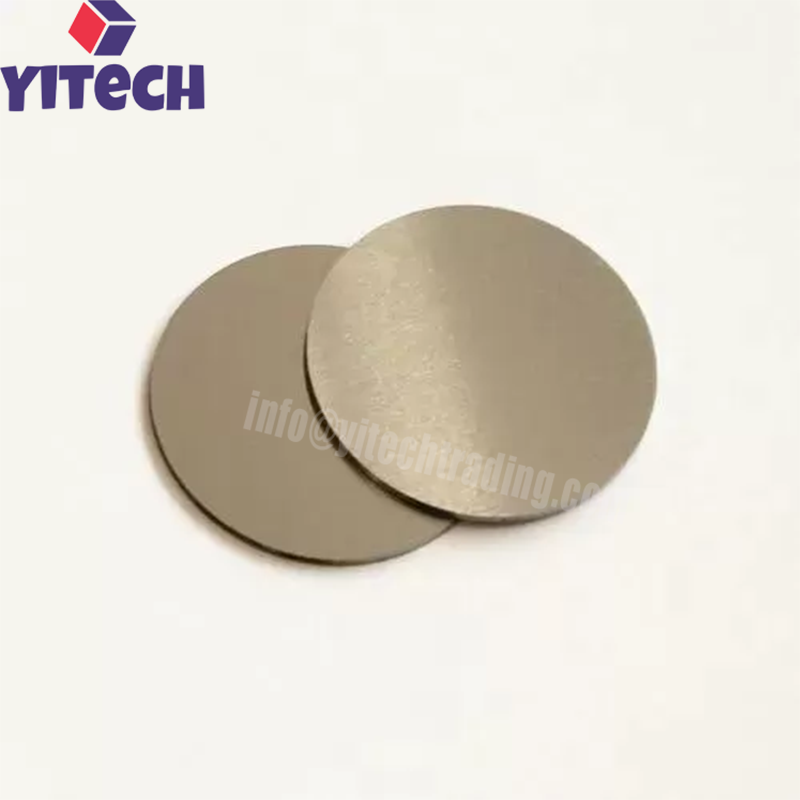

Beryllium Round Foil
- High-purity beryllium round foil with 99.9% purity (3N grade)
- Low density 1.848 g/cm³ — ideal for X-ray window applications
- High X-ray transmissivity for low-energy X-ray detection
- Excellent vacuum tightness with leak rate < 3×10⁻¹⁰ mbar·L/s
- Available in ultra-thin gauges from 8μm
- Round shape for direct mounting in X-ray detector windows
- Superior strength-to-weight ratio and corrosion resistance
- Ideal for X-ray detectors, EDXRF, WDXRF, XRD, and medical imaging
- Custom diameters and thicknesses available per customer requirements
- Surface finishes: as-rolled, vacuum-tight, optically-dense
- ISO 9001 certified manufacturing
Description Of Beryllium Round Foil
Beryllium Round Foil is a thin, high-purity beryllium metal foil in a circular shape, specifically designed for X-ray window applications. Beryllium is a lightweight, silver-grey metal with a density of 1.848 g/cm³, excellent X-ray transmissivity, and superior mechanical strength. The round shape allows for direct mounting into X-ray detector windows without additional cutting or shaping.
Beryllium offers a unique combination of properties that make it ideal for X-ray window applications. With low density and low atomic number (Z=4), beryllium provides high transmissivity for low-energy X-rays, minimizing spectral contamination and improving detection sensitivity. The material also offers high strength even in thin gauges, excellent vacuum tightness, and good thermal stability.
High purity beryllium round foils are available in ultra-thin gauges from 8μm, with custom diameters and thicknesses available upon request. Surface finishes include as-rolled, vacuum-tight, and optically-dense. Typical applications include X-ray detectors (EDXRF, WDXRF, XRD), medical imaging systems, X-ray tubes, and analytical instruments.
Features Of Beryllium Round Foil
High Purity: 99.9% purity (3N grade), ensuring minimal spectral contamination in X-ray analysis.
Round Shape: Circular design for direct mounting into X-ray detector windows, eliminating additional cutting or shaping.
Low Density: 1.848 g/cm³, enabling high X-ray transmissivity for low-energy detection.
Ultra-Thin Gauges: Available from 8μm, ideal for high-resolution X-ray windows.
Excellent Vacuum Tightness: Leak rate < 3×10⁻¹⁰ mbar·L/s for reliable vacuum isolation.
High Strength: Superior mechanical strength even in thin gauges, withstanding pressure differentials.
Corrosion Resistance: Resists moisture, solvents, and many chemicals (coated options available).
Customizable Dimensions: Custom diameters and thicknesses available per customer requirements.
Surface Options: As-rolled, vacuum-tight, optically-dense.
Applications Of Beryllium Round Foil
X-Ray Detectors: Beryllium round foils are used as X-ray windows in EDXRF, WDXRF, and XRD detectors, providing high transmissivity for low-energy X-rays.
Medical Imaging: Beryllium round foils are used in X-ray tubes and detectors for mammography, CT scan systems, and other medical imaging equipment.
Analytical Instruments: Beryllium round foils are used in X-ray spectroscopy, electron microscopy, and other analytical equipment.
Semiconductor Inspection: Beryllium round foils are used in semiconductor inspection equipment for X-ray analysis.
Baggage Inspection: Beryllium round foils are used in baggage inspection and security screening equipment.
Aerospace and Research: Beryllium round foils are used in high-energy physics research and aerospace applications.
Specifications Of Beryllium Round Foil
| Parameter | Specification |
|---|---|
| Material | Beryllium (Be) |
| Purity | ≥99.9% (3N grade) |
| Density | 1.848 g/cm³ |
| Melting Point | 1277°C |
| Boiling Point | 2970°C |
| Young's Modulus | 287 GPa |
| Thermal Conductivity | 2.01 W/cm/K |
| Thermal Expansion | 11.3 µm/(m·K) |
| Electrical Resistivity | 4.0 µΩ·cm |
| Shape | Round / Disc |
| Thickness Range | From 8 μm (customizable) |
