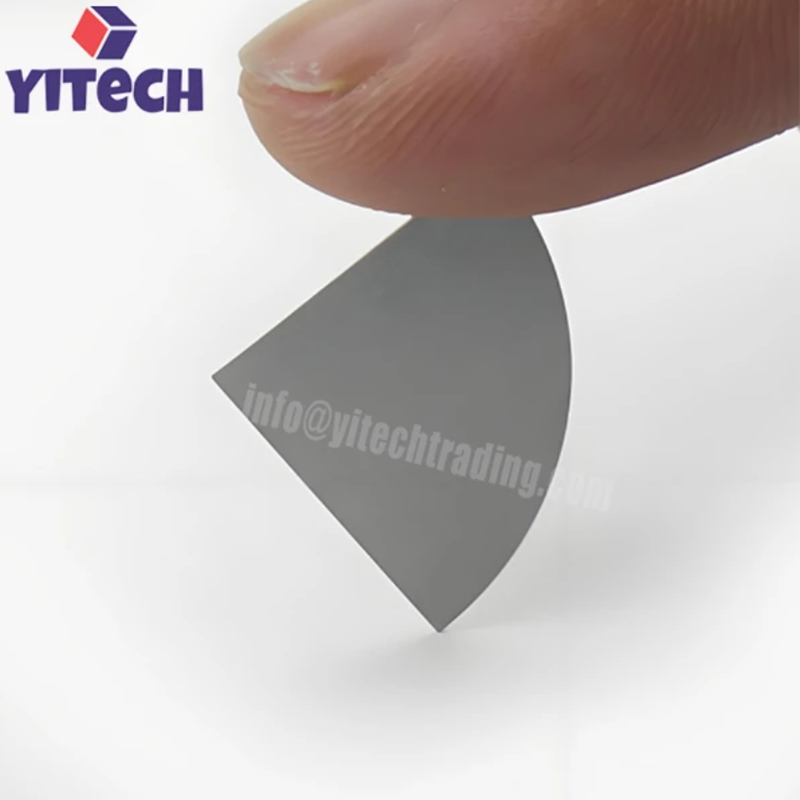

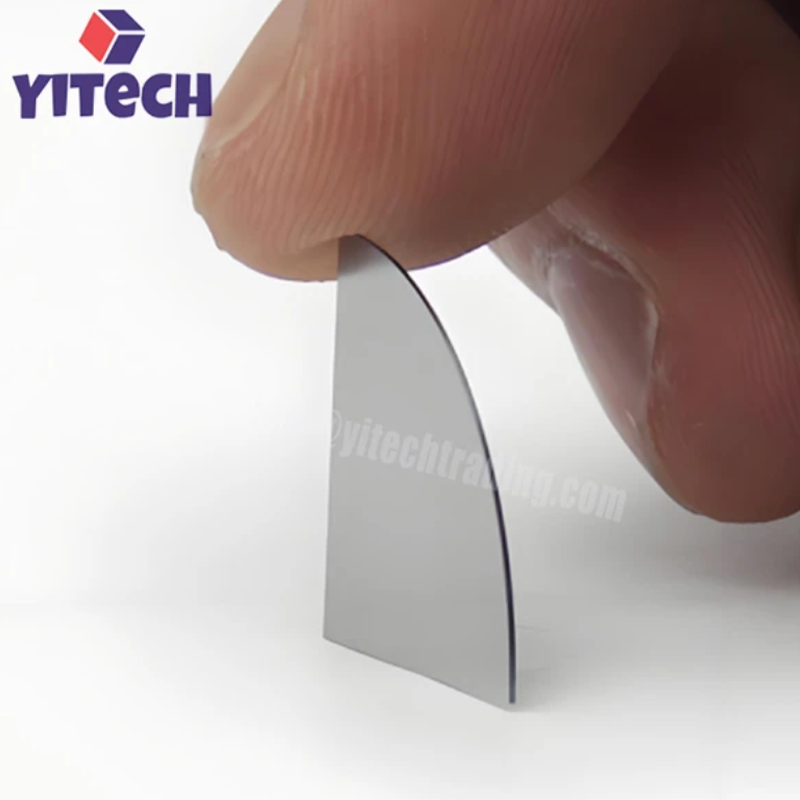

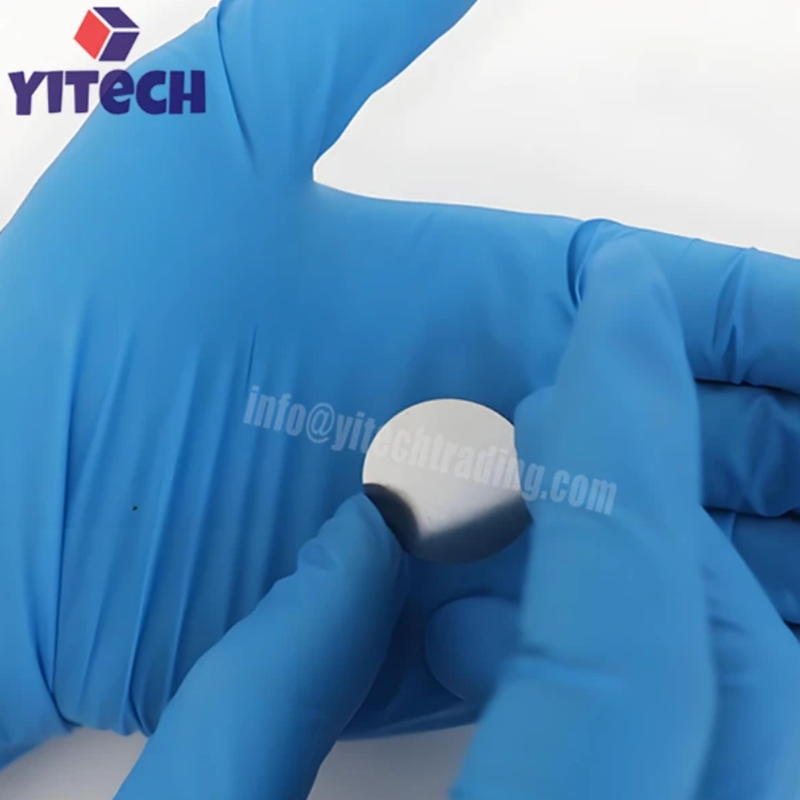

High Purity Beryllium Foil 99.9%
- High-purity beryllium foil with 99.9% purity (3N grade)
- Low density 1.848 g/cm³ — ideal for X-ray window applications
- High X-ray transmissivity for low-energy X-ray detection
- Excellent vacuum tightness with leak rate < 3×10⁻¹⁰ mbar·L/
- Available in ultra-thin gauges from 8μm
- Superior strength-to-weight ratio and corrosion resistance
- Ideal for X-ray detectors, EDXRF, WDXRF, XRD, and medical imaging
- Custom sizes and shapes available per customer requirements
- Surface finishes: as-rolled, vacuum-tight, optically-dense
Description Of High Purity Beryllium Foil 99.9%
High Purity Beryllium Foil 99.9% is a thin, high-purity beryllium metal foil manufactured from pure beryllium with 99.9% purity. Beryllium is a lightweight, silver-grey metal with a density of 1.848 g/cm³, excellent X-ray transmissivity, and superior mechanical strength. These foils are widely used as X-ray windows in detectors, spectrometers, and medical imaging equipment.
Beryllium offers a unique combination of properties that make it ideal for X-ray window applications. With low density and low atomic number (Z=4), beryllium provides high transmissivity for low-energy X-rays, minimizing spectral contamination and improving detection sensitivity. The material also offers high strength even in thin gauges, excellent vacuum tightness, and good thermal stability.
High purity beryllium foils are available in ultra-thin gauges from 8μm, with surface finishes including as-rolled, vacuum-tight, and optically-dense. Custom sizes and shapes are available upon request. Typical applications include X-ray detectors (EDXRF, WDXRF, XRD), medical imaging systems, X-ray tubes, and analytical instruments.
Features Of High Purity Beryllium Foil 99.9%
High Purity: 99.9% purity (3N grade), ensuring minimal spectral contamination in X-ray analysis.
Low Density: 1.848 g/cm³, enabling high X-ray transmissivity for low-energy detection.
Ultra-Thin Gauges: Available from 8μm, ideal for high-resolution X-ray windows.
Excellent Vacuum Tightness: Leak rate < 3×10⁻¹⁰ mbar·L/s for reliable vacuum isolation.
High Strength: Superior mechanical strength even in thin gauges, withstanding pressure differentials.
Corrosion Resistance: Resists moisture, solvents, and many chemicals (coated options available).
Customizable Dimensions: Custom sizes and shapes available per customer requirements.
Surface Options: As-rolled, vacuum-tight, optically-dense.
ISO 9001 Certified: Full traceability and quality assurance.
Applications Of High Purity Beryllium Foil 99.9%
X-Ray Detectors: Beryllium foils are used as X-ray windows in EDXRF, WDXRF, and XRD detectors, providing high transmissivity for low-energy X-rays.
Medical Imaging: Beryllium foils are used in X-ray tubes and detectors for mammography, CT scan systems, and other medical imaging equipment.
Analytical Instruments: Beryllium foils are used in X-ray spectroscopy, electron microscopy, and other analytical equipment.
Semiconductor Inspection: Beryllium foils are used in semiconductor inspection equipment for X-ray analysis.
Baggage Inspection: Beryllium foils are used in baggage inspection and security screening equipment.
Aerospace and Research: Beryllium foils are used in high-energy physics research and aerospace applications.
Specifications Of High Purity Beryllium Foil 99.9%
| Parameter | Specification |
|---|---|
| Material | Beryllium (Be) |
| Purity | ≥99.9% (3N grade) |
| Density | 1.848 g/cm³ |
| Melting Point | 1277°C |
| Boiling Point | 2970°C |
| Young's Modulus | 287 GPa |
| Thermal Conductivity | 2.01 W/cm/K |
| Thermal Expansion | 11.3 µm/(m·K) |
| Electrical Resistivity | 4.0 µΩ·cm |
| Thickness Range | From 8 μm (customizable) |
| Surface Finish | As-rolled, vacuum-tight, optically-dense |
