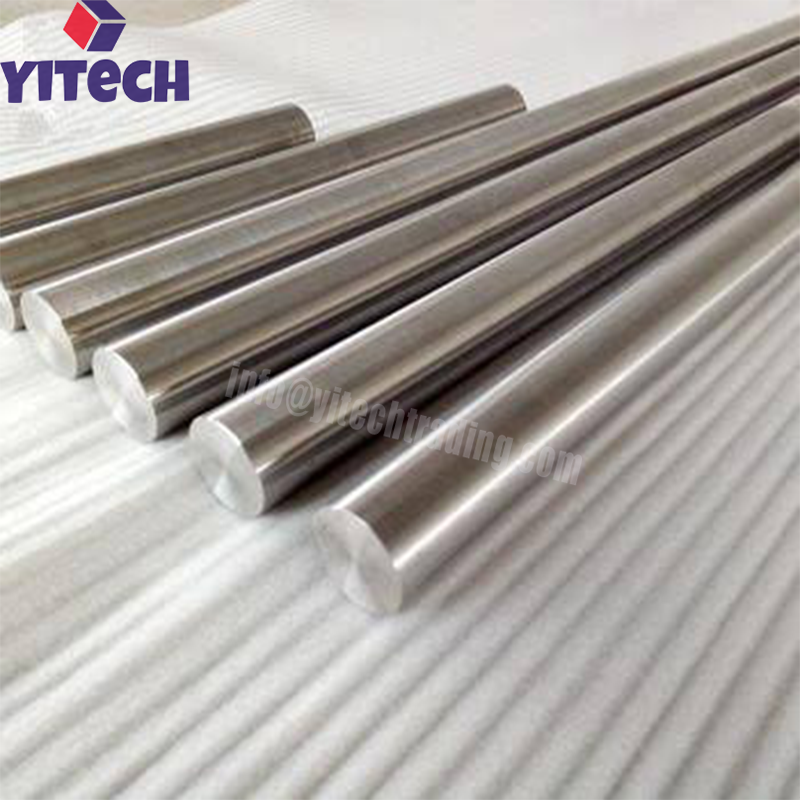

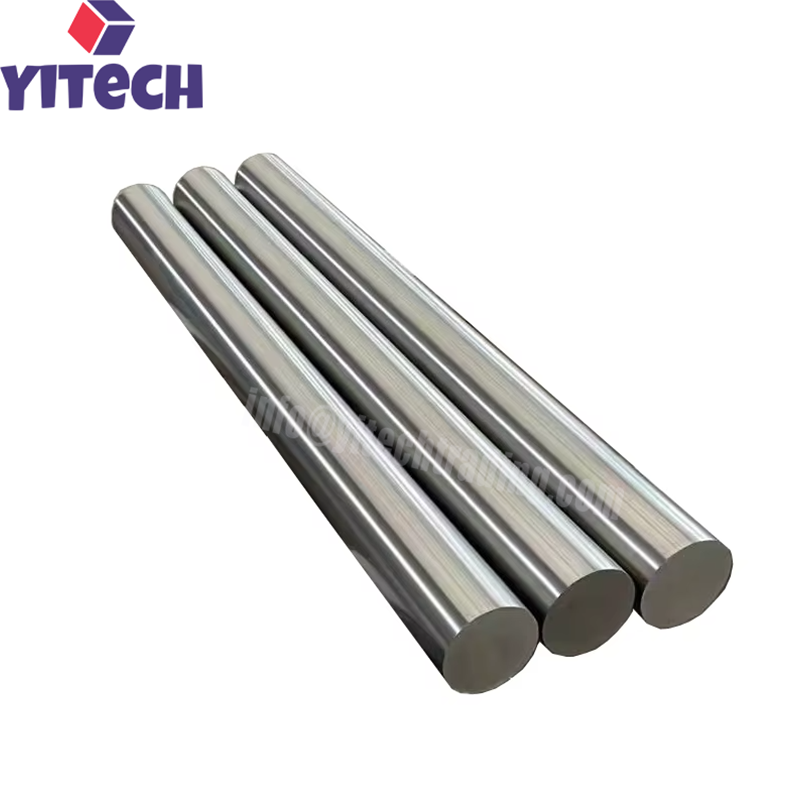

Niobium Titanium Alloy Rod Nb47Ti
- Nb47Ti niobium titanium alloy rod with Ti content 46%–48% (nominal 47%)
- Manufactured to ASTM B884 standard for superconducting applications
- Excellent superconducting properties — the most widely used superconductor material
- High strength and toughness match — ideal for wire manufacturing
- Good ductility for processing into wires and complex shapes
- Critical material for MRI, NMR, particle accelerators, and ITER fusion projects
- Also used as intermediate alloy for titanium alloys TA31, TC20, TB18
- Custom diameters available, including large-size bars (≥Ф140mm)
Description Of Niobium Titanium Alloy Rod Nb47Ti
Niobium Titanium Alloy Rod Nb47Ti is a binary niobium-titanium alloy bar manufactured to ASTM B884 standard. The alloy contains 46%–48% titanium (nominal 47%) with niobium as the balance, specifically designed for superconducting applications. Nb47Ti is the most widely used superconducting material, combining excellent superconducting properties with good strength and ductility.
ASTM B884 covers niobium-titanium alloy billets, bars, and rods at 46% to 48% titanium. This material is used in the manufacture of wire for superconducting applications. Nb47Ti alloy has a two-phase microstructure (β phase matrix with α-Ti precipitates) that provides effective flux pinning, enabling high critical current density in superconducting wires.
Nb47Ti alloy is primarily used for superconducting materials and as an intermediate alloy for titanium alloys. In superconducting applications, it is used for ITER project wires, MRI/NMR equipment superconducting magnets, and particle accelerator magnets. The material exhibits excellent process plasticity and can be drawn into fine superconducting wires.
Our Nb47Ti niobium titanium alloy rods are available in custom diameters, including large-size bars (≥Ф140mm). Typical room-temperature tensile strength is ≥350 MPa, yield strength ≥330 MPa, and elongation ≥20%. Surface finishes include machined, polished, and annealed.
Features Of Niobium Titanium Alloy Rod Nb47Ti
Optimal Composition: Ti content 46%–48% (nominal 47%) for best superconducting performance.
ASTM B884 Compliant: Manufactured to the standard specification for niobium-titanium alloy billets, bars, and rods for superconducting applications.
Excellent Superconducting Properties: Two-phase microstructure provides effective flux pinning for high critical current density.
Good Strength and Ductility: Room-temperature tensile strength ≥350 MPa, yield strength ≥330 MPa, elongation ≥20%.
Uniform Microstructure: Grain size ≥3 achievable through controlled forging processes.
Customizable Dimensions: Custom diameters available, including large-size bars ≥Ф140mm.
Surface Finishes: Machined, polished, annealed.
ISO 9001 Certified: Full traceability and quality assurance.
Specifications Of Niobium Titanium Alloy Rod Nb47Ti
| Parameter | Specification |
|---|---|
| Material | Niobium-titanium alloy (Nb47Ti) |
| Standard | ASTM B884 |
| Titanium Content | 46% – 48% (nominal 47%) |
| Niobium | Balance |
| Density | ~6.5 g/cm³ |
| Melting Point | ~2450°C |
| Tensile Strength (RT) | ≥350 MPa |
| Yield Strength (RT) | ≥330 MPa |
| Elongation | ≥20% |
| Reduction of Area | ≥80% |
| Grain Size | ≥3 |
| Diameter Range | Customizable (including ≥Ф140mm) |
| Surface Finish | Machined, polished, annealed |
| Product Standard | ASTM B884 |
| Certification | ISO 9001 |
