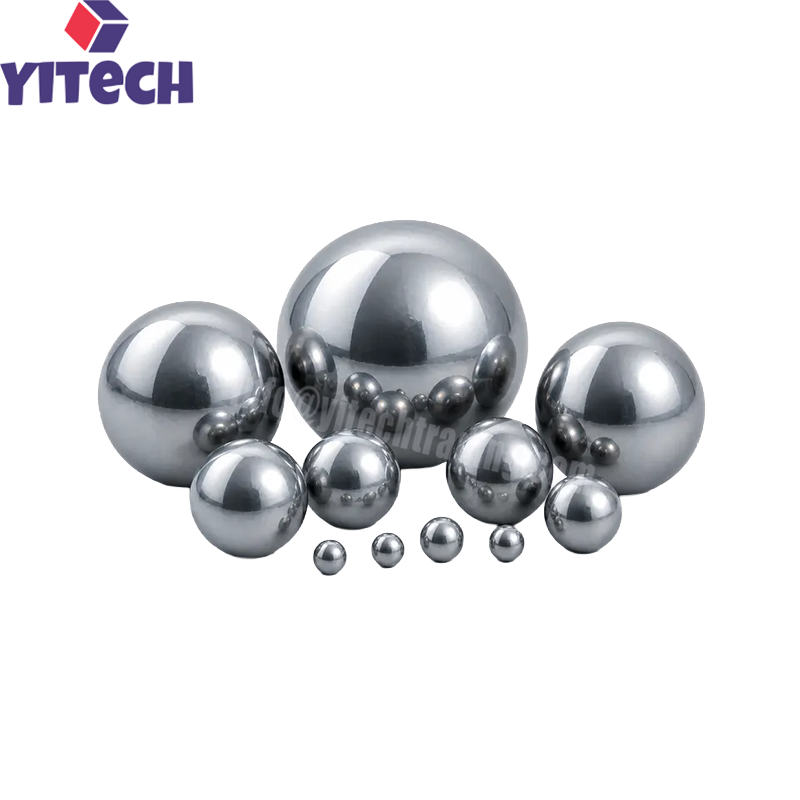

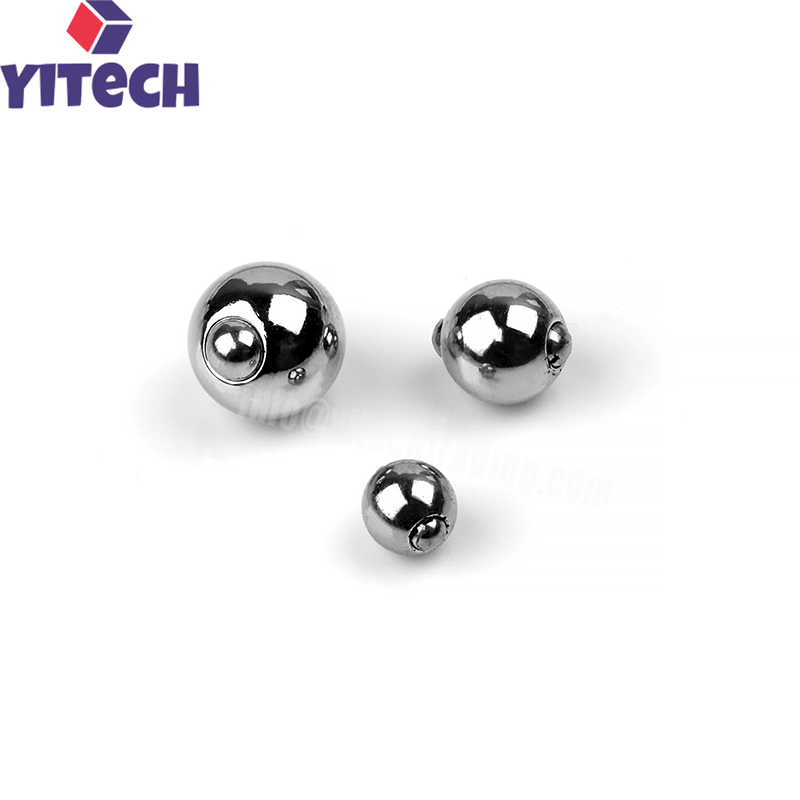

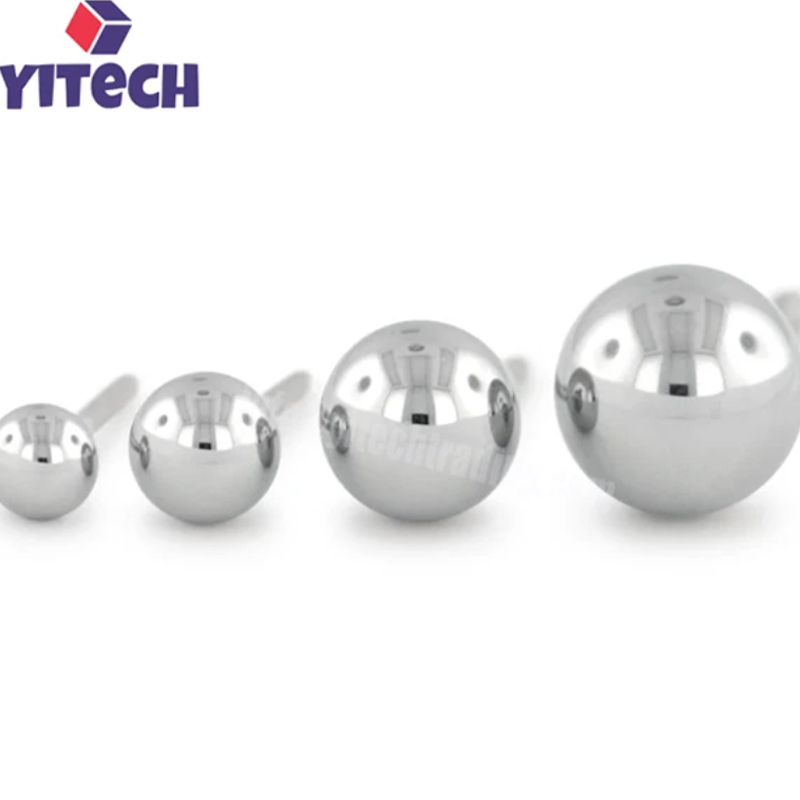

Custom Niobium Beads | High Purity Niobium Metal Beads
- Custom high-purity niobium beads with purity ≥99.9%
- Melting point 2477°C — the fourth-highest among all elements
- Density 8.57 g/cm³ with excellent dimensional stability
- Outstanding corrosion resistance to acids, alkalis, and most molten metals
- Superior high-temperature strength and creep resistance
- Low neutron absorption cross-section for nuclear applications
- Ideal for evaporation coating, alloy additives, and superconducting materials
- Available in custom sizes and weights per customer requirements
- Surface finishes: bright, pickled, polished
- ISO 9001 certified manufacturing
Description Of Custom Niobium Beads
Custom Niobium Beads are high-purity niobium metal beads manufactured from high-purity niobium (≥99.9%) through vacuum melting, forging, and precision processing. Niobium is a silver-grey refractory metal with a melting point of 2477°C, excellent corrosion resistance, and superior superconducting properties. These beads are available in custom sizes and weights to suit specific application requirements.
Niobium offers a unique combination of properties that make it ideal for demanding applications. With a melting point of 2477°C (the fourth-highest among all elements, after tungsten, tantalum, and rhenium), niobium beads can withstand extreme temperatures. The material also offers excellent corrosion resistance to acids, alkalis, and most molten metals, and it does not react with reactive metals like titanium, zirconium, and hafnium.
Custom niobium beads are widely used in evaporation coating (PVD) as an evaporation source, as alloy additives for titanium alloys and superalloys, in superconducting materials, and in laboratory research. They can be supplied in bright, pickled, or polished surface conditions, with custom sizes and weights available upon request.
Features Of Custom Niobium Beads
Custom Sizes Available: Beads can be manufactured in custom sizes and weights per customer requirements.
High Purity: Purity ≥99.9%, ensuring minimal contamination in critical applications.
High Melting Point: 2477°C, the fourth-highest among all elements, enabling use in extreme high-temperature environments.
Excellent Corrosion Resistance: Resists acids, alkalis, and most molten metals.
Superior High-Temperature Strength: Maintains mechanical strength and creep resistance at elevated temperatures.
Non-Reactive with Reactive Metals: Does not react with titanium, zirconium, and hafnium.
Multiple Surface Finishes: Bright, pickled, polished.
ISO 9001 Certified: Full traceability and quality assurance.
Specifications Of Custom Niobium Beads
| Parameter | Specification |
|---|---|
| Material | Niobium (Nb) |
| Purity | ≥99.9% |
| Density | 8.57 g/cm³ |
| Melting Point | 2477°C |
| Boiling Point | 4744°C |
| Young's Modulus | 105 GPa |
| Thermal Conductivity | 5.37 W/(m·K) |
| Thermal Expansion | 7.3 µm/(m·K) |
| Bead Size | Customizable |
| Bead Weight | Customizable |
| Surface Finish | Bright, pickled, polished |
| Certification | ISO 9001 |
