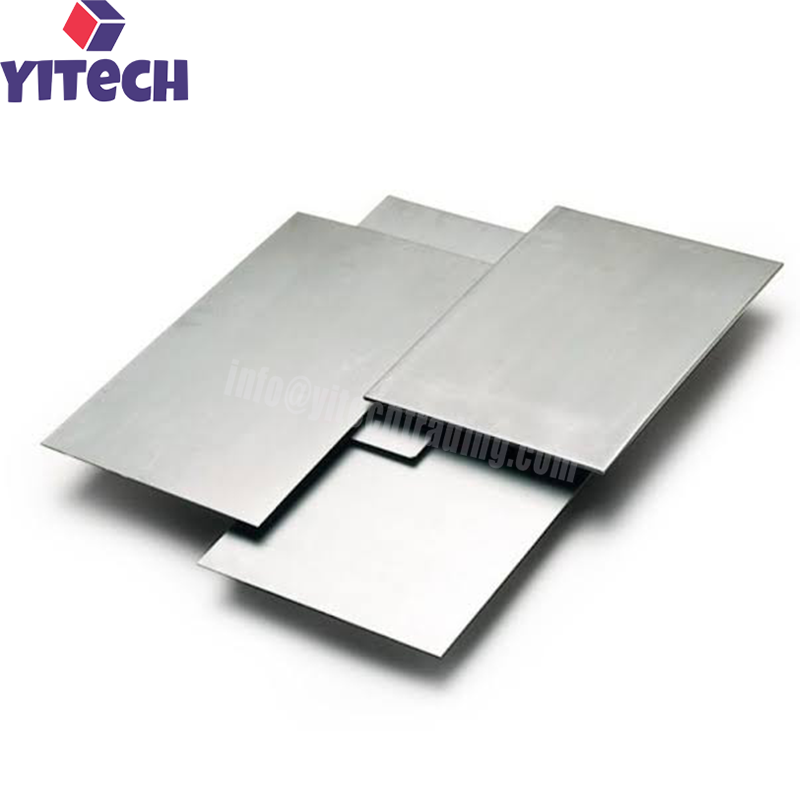

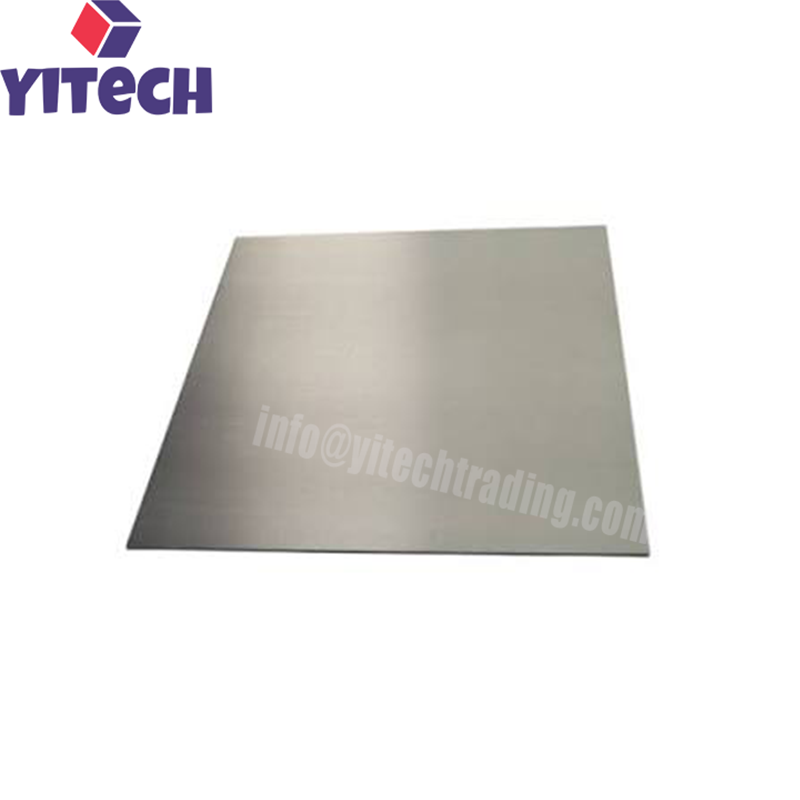

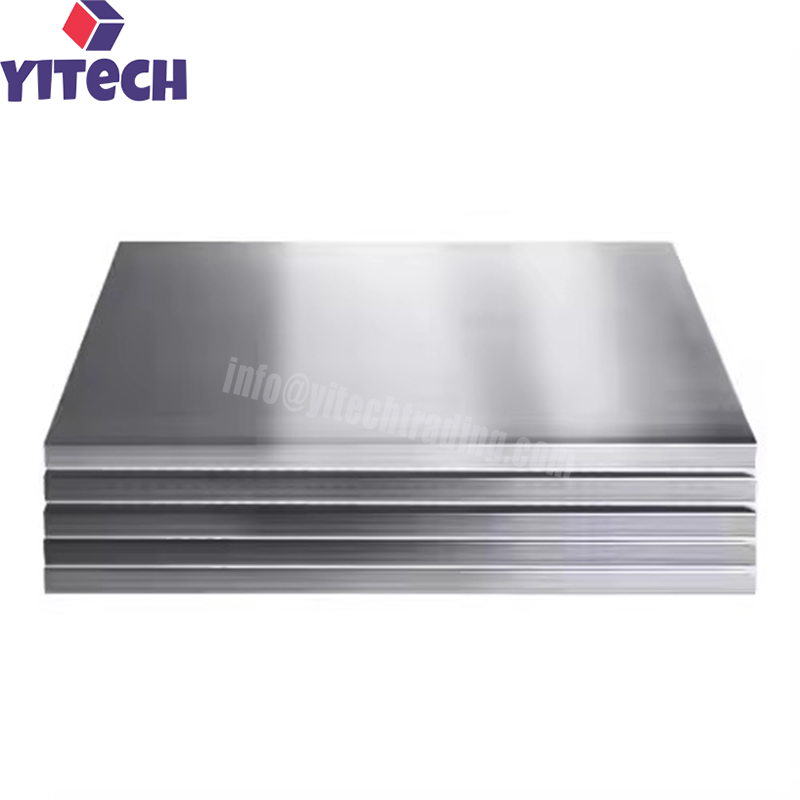

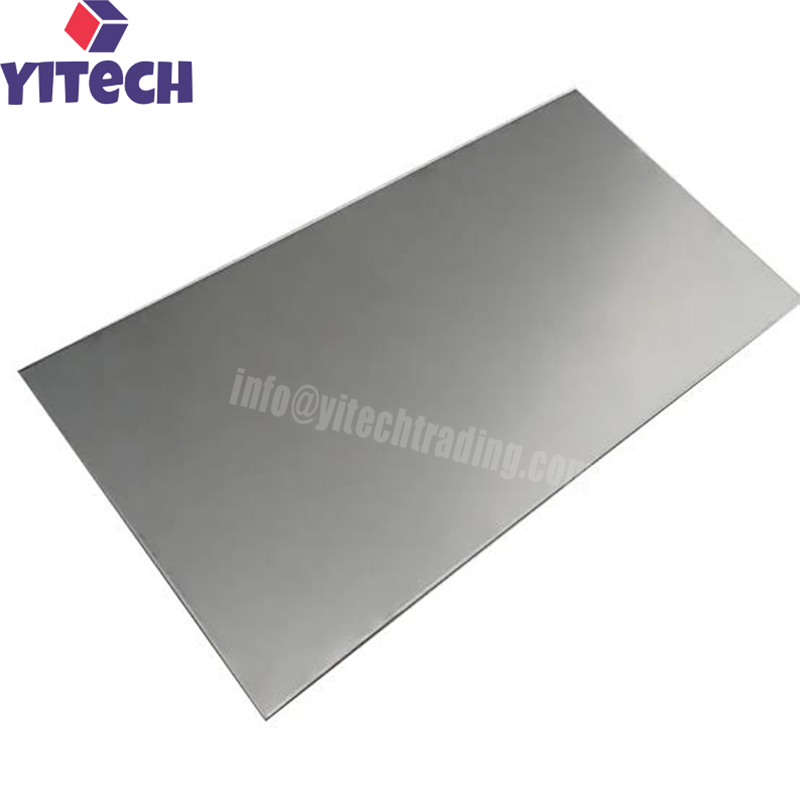

Niobium Plate & Sheet | ASTM B393 Alloy Sheet
- Manufactured to ASTM B393 standard for niobium and niobium alloy strip, sheet, and plate
- Available in R04200 (Nb1), R04210 (Nb2), R04251 (Nb-1Zr), and R04261 grades
- High-purity niobium with excellent corrosion resistance and high-temperature stability
- Melting point 2477°C and density 8.57 g/cm³
- Superior superconducting properties for particle accelerator and MRI applications
- Low neutron absorption cross-section for nuclear reactor components
- Excellent formability, weldability, and machinability
- Thickness 0.1–50mm, width up to 1000mm, length up to 3000mm
Description Of Niobium Plate & Sheet
Niobium Plate & Sheet are flat-rolled products manufactured from niobium and niobium alloys to ASTM B393 standard. Niobium is a silver-grey refractory metal with a melting point of 2477°C, excellent corrosion resistance, and superior superconducting properties. These products are essential in some of the most demanding applications, including superconducting particle accelerators, nuclear reactors, and high-temperature assemblies.
The ASTM B393 standard covers five grades of wrought niobium and niobium alloy strip, sheet, and plate: R04200-Type 1 (reactor grade unalloyed niobium), R04210-Type 2 (commercial grade unalloyed niobium), R04251-Type 3 (reactor grade niobium alloy containing 1% zirconium), R04261-Type 4 (commercial grade niobium alloy containing 1% zirconium), and R04220-Type 5 (RRR grade pure niobium).
Niobium plates and sheets are widely used in superconducting radio frequency (SRF) cavities for particle accelerators, where niobium's superconducting properties enable efficient acceleration of charged particles. They are also used in nuclear reactors, chemical processing equipment, semiconductor manufacturing, and high-temperature assemblies. Our niobium plates and sheets are available in thicknesses from 0.1mm to 50mm, widths up to 1000mm, and lengths up to 3000mm, with surface finishes including pickled, machined, polished, and annealed.
Features Of Niobium Plate & Sheet
ASTM B393 Compliant: Manufactured to ASTM B393 standard for niobium and niobium alloy strip, sheet, and plate.
Multiple Grades Available: R04200 (Nb1), R04210 (Nb2), R04251 (Nb-1Zr), R04261, R04220.
High Melting Point: 2477°C, enabling use in extreme high-temperature environments.
Superior Superconducting Properties: Critical for superconducting accelerators and MRI applications.
Excellent Corrosion Resistance: Resists acids, alkalis, and harsh chemical environments.
Low Neutron Absorption: Suitable for nuclear reactor applications.
Good Formability: Can be machined, bent, and welded into complex shapes.
Customizable Dimensions: Thickness 0.1–50mm, width up to 1000mm, length up to 3000mm.
Surface Finishes: Pickled, machined, polished, annealed.
ISO 9001 Certified: Full traceability and quality assurance.
Specifications Of Niobium Plate & Sheet
| Parameter | Specification |
|---|---|
| Material | Niobium and niobium alloy |
| Standard | ASTM B393 |
| Grades | R04200 (Nb1), R04210 (Nb2), R04251 (Nb-1Zr), R04261, R04220 |
| Density | 8.57 g/cm³ |
| Melting Point | 2477°C |
| Boiling Point | 4744°C |
| Young's Modulus | 105 GPa |
| Thermal Conductivity | 5.37 W/(m·K) |
| Thermal Expansion | 7.3 µm/(m·K) |
| Thickness Range | 0.1 – 50 mm (customizable) |
| Width Range | Up to 1000 mm (customizable) |
| Length Range | Up to 3000 mm (customizable) |
| Surface Finish | Pickled, machined, polished, annealed |
| Product Standard | ASTM B393 |
| Certification | ISO 9001 |
