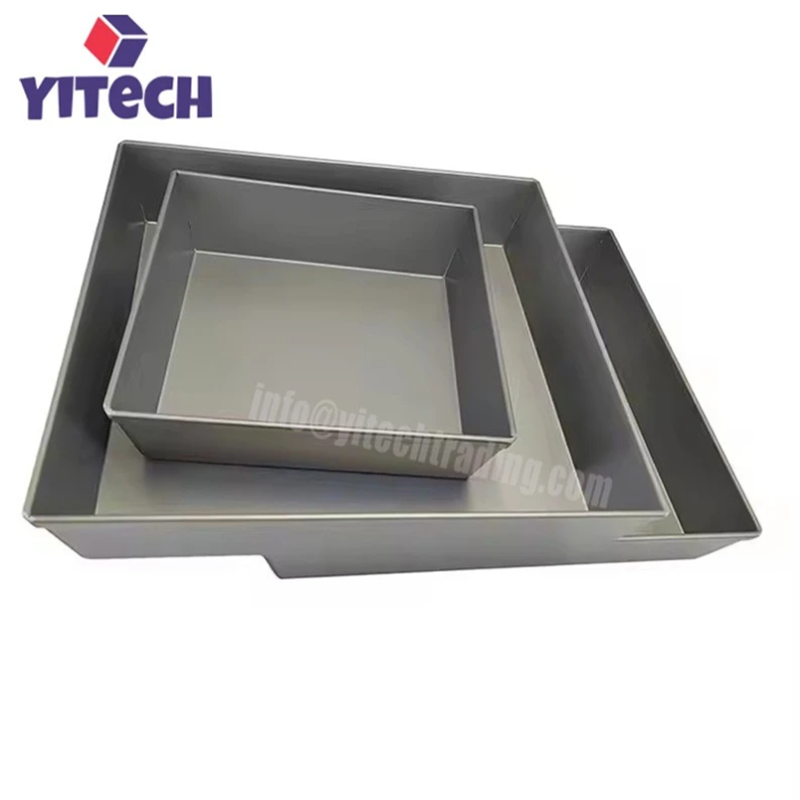

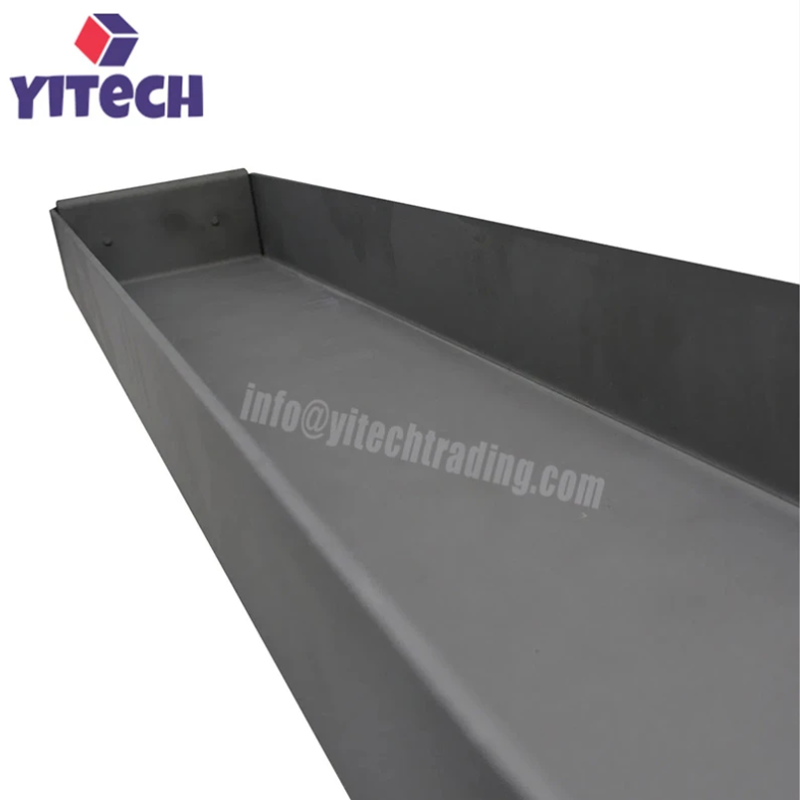

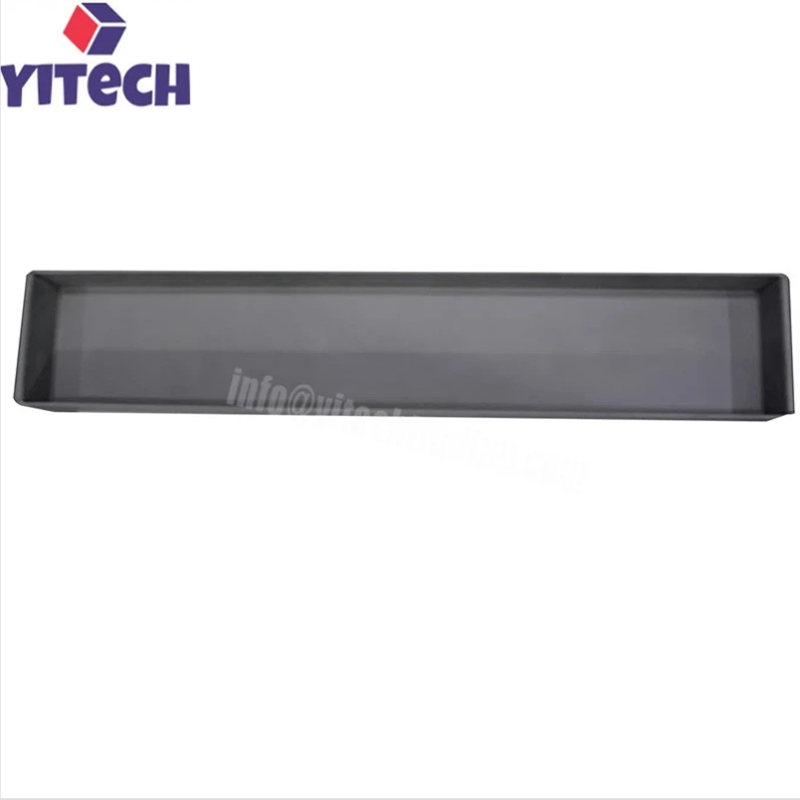

Custom Molybdenum Boat For Thermal Evaporation

Description Of Custom Molybdenum Boat For Thermal Evaporation

Custom Molybdenum Boat For Thermal Evaporation is a tailor-made evaporation source manufactured from high-purity molybdenum (Mo1 grade, purity ≥99.95%) through powder metallurgy, rolling, and precision machining processes. Unlike standard models, each custom molybdenum boat is produced according to customer-specific drawings and requirements, including dimensions, wall thickness, boat shape, hole patterns, and surface finish.

In thermal evaporation processes, molybdenum boats serve as both a container for the evaporant and a resistive heating element. When electric current passes through the boat, it generates heat through resistance, melting and vaporizing the material placed in the recess. The vaporized atoms then travel through the vacuum chamber and deposit onto the substrate, forming a thin functional film. Typical evaporation materials include aluminum, silver, gold, copper, chromium, and other metals.

Molybdenum offers an excellent combination of properties for thermal evaporation. With a melting point of 2610°C–2620°C, it can withstand the high temperatures required for evaporating many metals. Its density of 10.2 g/cm³ is significantly lower than tungsten (19.3 g/cm³), making molybdenum boats lighter and easier to handle. Molybdenum also offers excellent thermal conductivity (~138 W/m·K), low vapor pressure, and good corrosion resistance against many molten metals. Compared to tungsten boats, molybdenum boats are more cost-effective and easier to machine, while still providing reliable performance for many evaporation applications.

Custom molybdenum boats are available in stamped, folded, welded, and riveted configurations. Custom sizes, shapes (round bottom, flat bottom, multi-slot, etc.), thicknesses, and hole patterns are available upon request. They are widely used in PVD, OLED, semiconductor, and optical coating industries.

Applications Of Custom Molybdenum Boat For Thermal Evaporation

Thermal Evaporation and PVD: Custom molybdenum boats are widely used in thermal evaporation systems for depositing aluminum, silver, gold, copper, chromium, and other metals onto substrates. They are essential in optical coating, decorative coating, and functional thin-film deposition.

Semiconductor and Electronics: Used for metallization in semiconductor manufacturing, OLED electrode deposition, and thin-film transistor fabrication, where high purity and high-temperature stability are critical.

Optical Coating: Used for producing anti-reflective coatings, reflective layers, and filter coatings for lenses, mirrors, and optical instruments.

Decorative Coating: Used for gold plating, silver plating, and decorative coatings on consumer electronics, automotive parts, and fashion accessories.

Solar Cells and Photovoltaics: Used for depositing thin-film solar cell layers and photovoltaic device electrodes.

Research and Development: Used in laboratories for material evaporation experiments and thin-film deposition studies, especially where custom boat geometries are required.

Usage Precautions and Limitations Of Custom Molybdenum Boat For Thermal Evaporation

Atmosphere Requirements: Molybdenum oxidizes rapidly at temperatures above 500°C in air, forming volatile molybdenum trioxide (MoO₃). Custom molybdenum boats must be used exclusively in high-vacuum or inert gas atmospheres to prevent oxidation and ensure optimal performance.

Deformation During Use: Due to thin wall thickness and high operating temperatures, molybdenum boats may deform during use. If deformation becomes severe, the boat should be replaced.

Embrittlement After Use: Molybdenum can become brittle after high-temperature exposure. Used boats should not be bent or mechanically stressed.

Gradual Heating: To prevent thermal shock and cracking, the boat should be heated gradually with a controlled voltage increase during the initial heating stage.

Handling and Storage: Molybdenum boats are brittle at room temperature. Handle with care to avoid chipping or cracking. Store in a dry, clean environment.

Power and Temperature Control: Proper power settings are critical for stable evaporation rates and long boat life. Excessive power can cause rapid deformation and premature failure.
