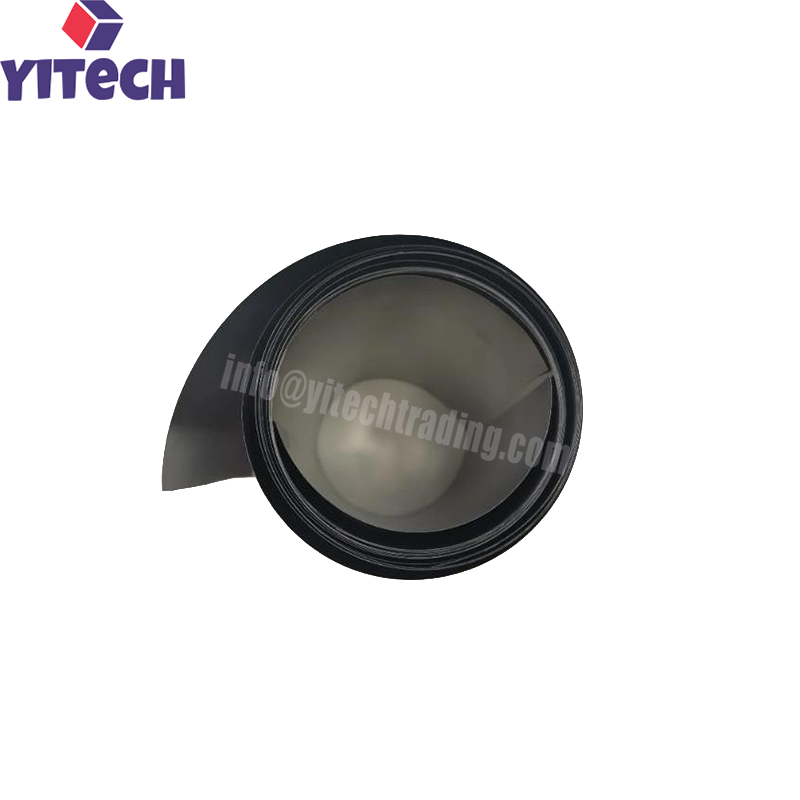

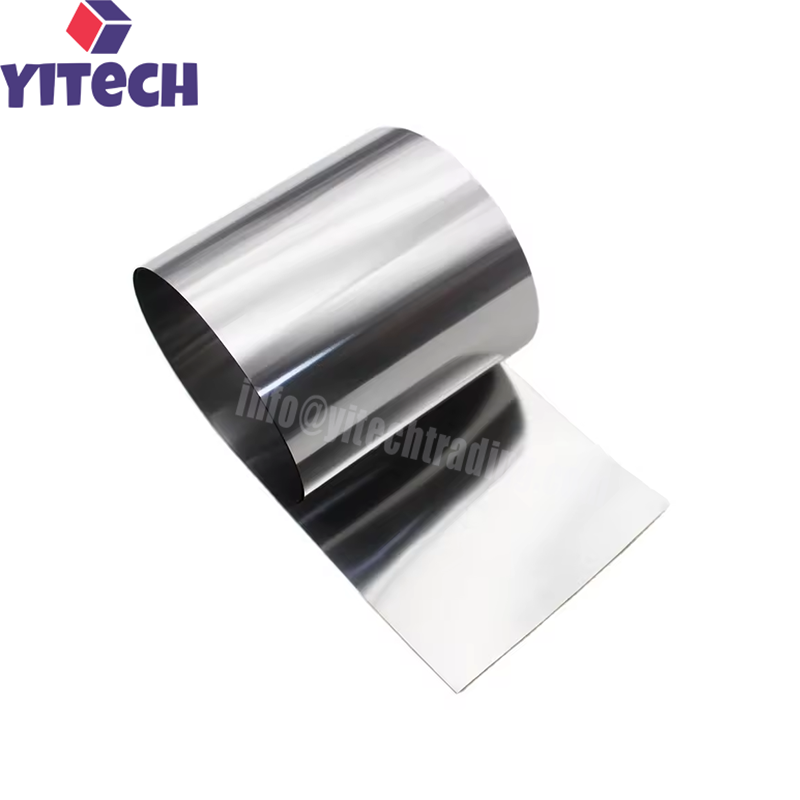

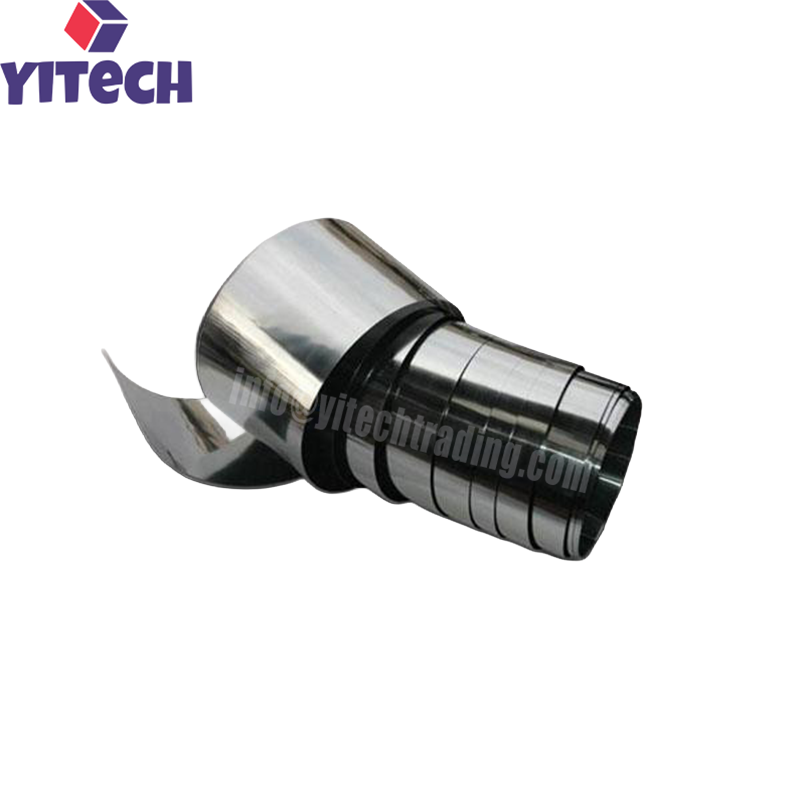

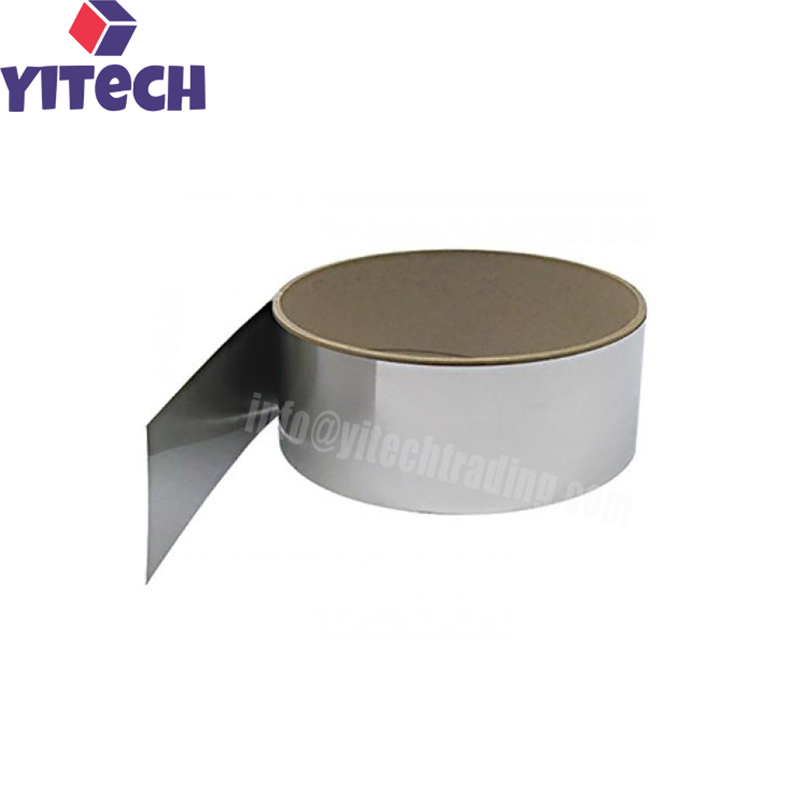

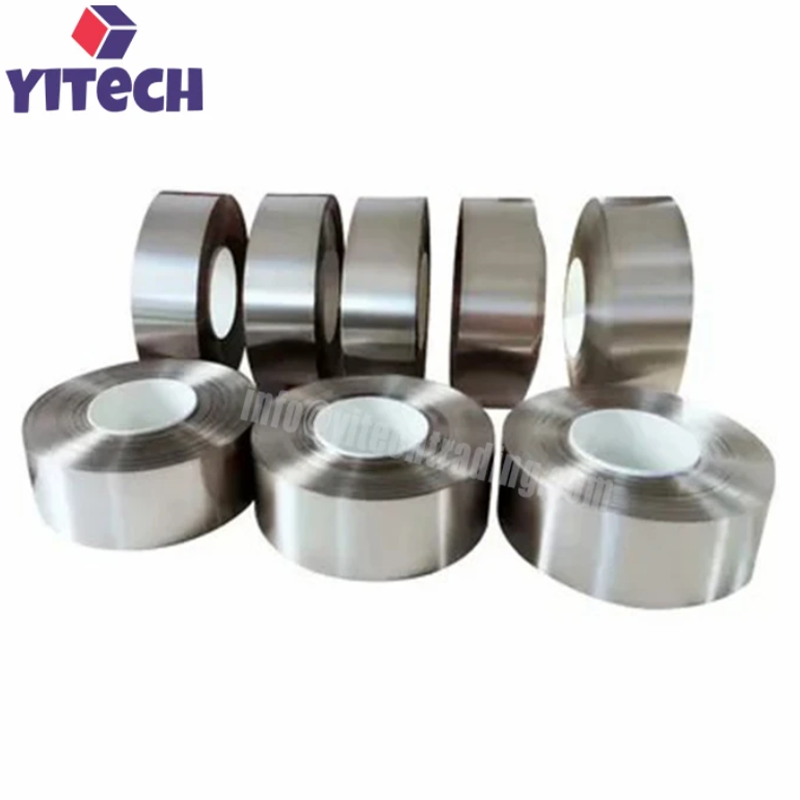

UNS R60702 Zirconium Foil
- High-purity unalloyed zirconium, UNS R60702 (Zr702)
- Manufactured to ASTM B551 / ASME SB-551 standard
- Purity up to 99.9% (3N) for minimal contamination
- Zr + Hf ≥ 99.2%, with Hf ≤ 4.5%
- Outstanding corrosion resistance in hydrochloric, sulfuric, nitric, and organic acids
- Low neutron absorption cross-section — ideal for nuclear applications
- Strong oxygen affinity — used as a getter in vacuum tubes and electronic devices
- Good formability and ductility for complex shapes and deep drawing
- Thickness 0.01–0.5mm, width up to 300mm, custom lengths available
- Surface finishes: bright, pickled, polished, annealed
Description Of UNS R60702 Zirconium Foil
UNS R60702 Zirconium Foil is a thin, flexible sheet of high-purity zirconium metal manufactured to ASTM B551 standard. It is produced from high-purity zirconium sponge or crystal bars through vacuum arc remelting (VAR), forging, hot rolling, cold rolling, and precision annealing processes. The foil is available in thicknesses from 0.01mm to 0.5mm, widths up to 300mm, and custom lengths.
Zirconium is a silver-grey transition metal with a density of 6.51 g/cm³ and a melting point of 1852°C. It offers outstanding corrosion resistance in hydrochloric acid, sulfuric acid, nitric acid, acetic acid, and strong alkalis. Its low neutron absorption cross-section makes it indispensable in the nuclear industry for fuel cladding and core structural components. Zirconium also has a strong affinity for oxygen, nitrogen, and hydrogen, making it an effective getter material in vacuum tubes, electronic devices, and high-purity gas purification systems.
UNS R60702 zirconium foils are widely used in nuclear reactor components, chemical processing equipment, electronics, getters, optical coatings, medical devices, and research laboratories. The foil can be supplied in bright, pickled, polished, or annealed condition, with custom thicknesses, widths, and shapes available upon request. All products are manufactured under ISO 9001 quality systems and comply with ASTM B551 / ASME SB-551 standards.
Features Of UNS R60702 Zirconium Foil
High Purity: UNS R60702 with purity up to 99.9% (3N), ensuring minimal contamination in critical applications.
ASTM B551 Compliant: Manufactured to ASTM B551 / ASME SB-551 standard for zirconium plate, sheet, and strip.
Excellent Corrosion Resistance: Resists hydrochloric acid, sulfuric acid, nitric acid, acetic acid, and strong alkalis.
Low Neutron Absorption: Low thermal neutron absorption cross-section for nuclear applications.
Strong Oxygen Affinity: Effective getter material for vacuum tubes and electronic devices.
Good Formability: Can be cut, punched, bent, and deep-drawn into complex shapes.
High Melting Point: 1852°C for high-temperature applications.
Low Density: 6.51 g/cm³, lighter than steel and many refractory metals.
Customizable Dimensions: Thickness 0.01–0.5mm, width up to 300mm, custom lengths.
Surface Finishes: Bright, pickled, polished, annealed.
Standard Compliance: ASTM B551 / ASME SB-551.
ISO 9001 Certified: Full traceability and quality assurance.
Specifications Of UNS R60702 Zirconium Foil
| Parameter | Specification |
|---|---|
| Material | Unalloyed zirconium |
| UNS Designation | R60702 (Zr702) |
| Standard | ASTM B551 / ASME SB-551 |
| Purity | ≥99.9% (3N) |
| Chemical Composition (nominal) | Zr + Hf ≥ 99.2%; Hf ≤ 4.5%; Fe + Cr ≤ 0.20%; H ≤ 0.005%; N ≤ 0.025%; C ≤ 0.05%; O ≤ 0.16% |
| Density | 6.51 g/cm³ |
| Melting Point | 1852°C |
| Boiling Point | ~4400°C |
| Thickness | 0.01 – 0.5 mm (customizable) |
| Width | Up to 300 mm (customizable) |
| Length | Customizable (coil or sheet) |
| Thickness Tolerance | ±0.005 mm (typical for thin foil) |
| Surface Finish | Bright, pickled, polished, annealed |
| Tensile Strength | ≥380 MPa (Zr702) |
| Yield Strength | ≥205 MPa (Zr702) |
| Elongation | ≥16% (Zr702) |
| Product Standard | ASTM B551 / ASME SB-551 |
| Certification | ISO 9001 |
