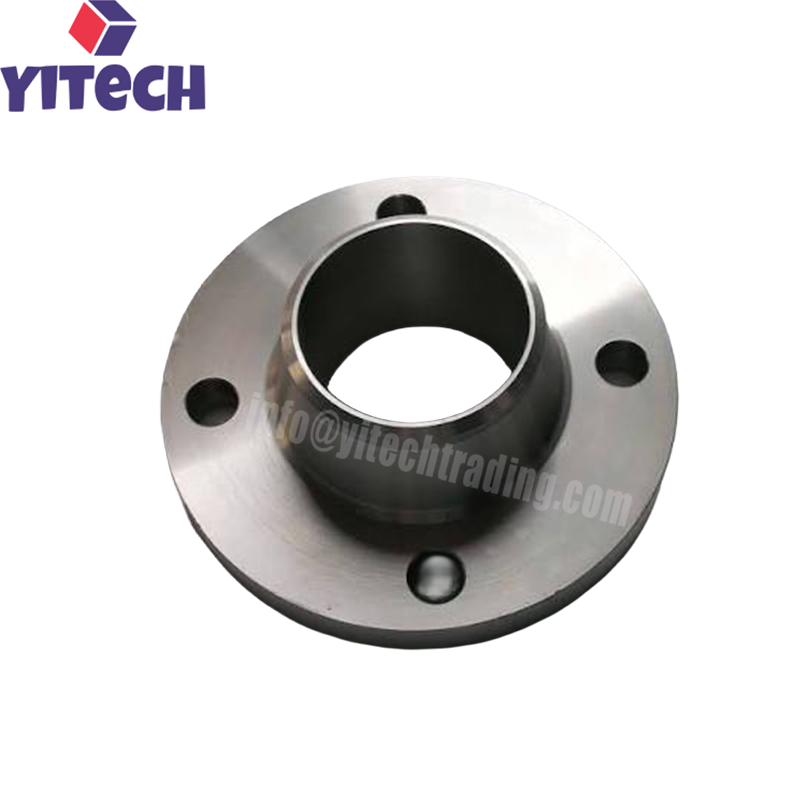

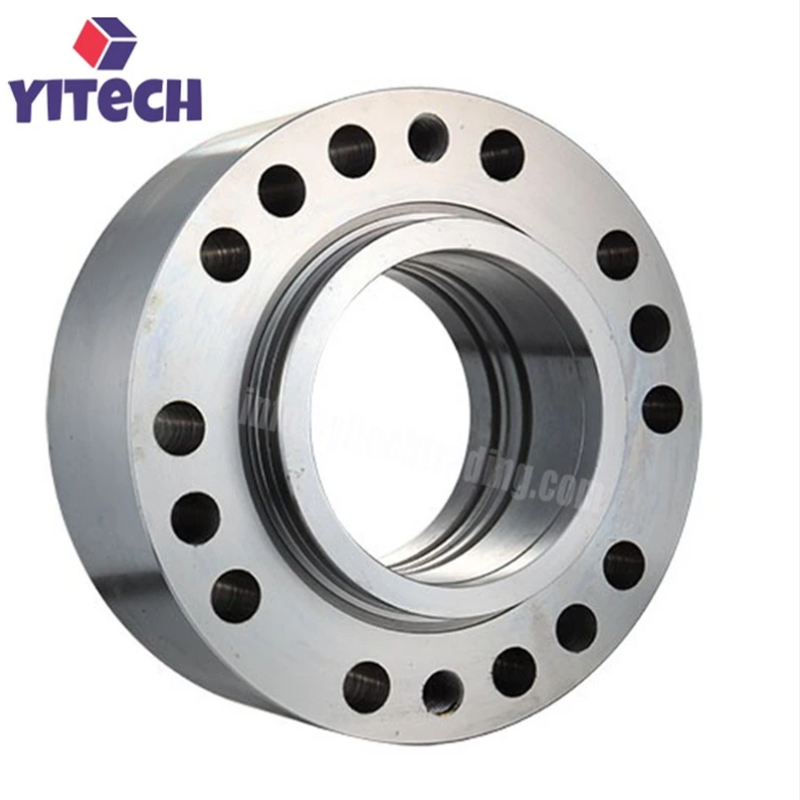

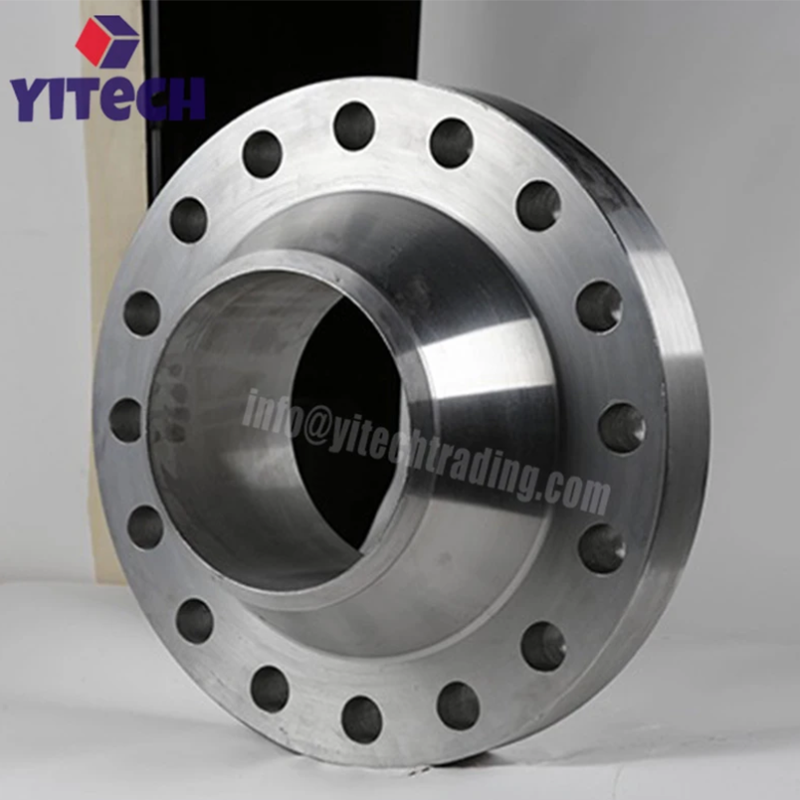

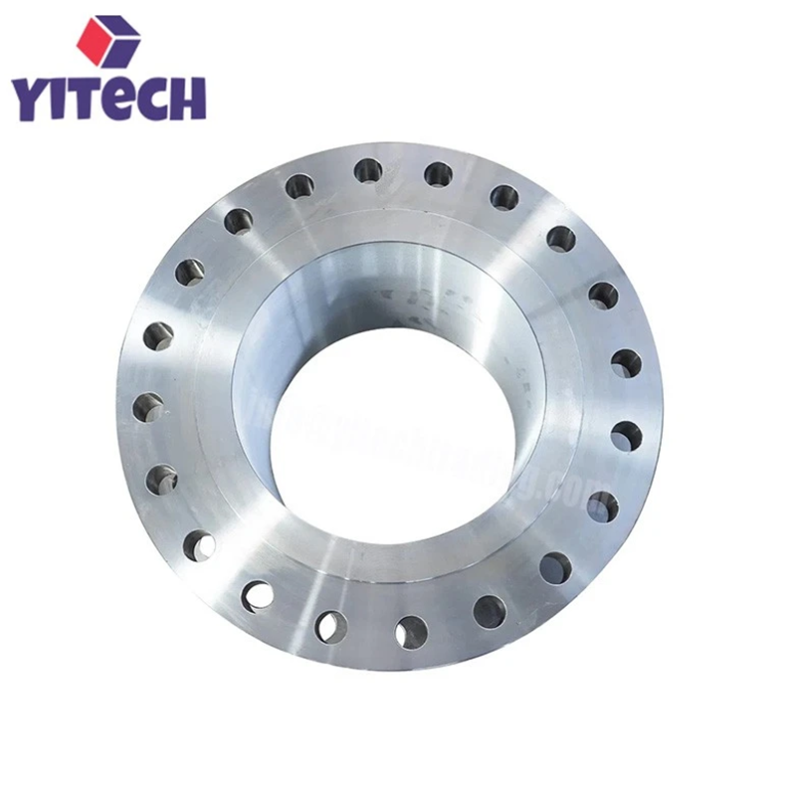

Pipe Fittings Titanium Alloy Flanges

Description Of Pipe Fittings Titanium Alloy Flanges

Pipe Fittings Titanium Alloy Flanges are precision components used to connect pipes, valves, pumps, and other equipment in piping systems. They are manufactured from titanium and titanium alloys through forging, machining, and heat treatment processes, and are available in a wide range of grades, types, sizes, and pressure ratings to suit different applications.

Titanium alloy flanges offer a unique combination of properties that make them ideal for demanding environments. With a density of approximately 4.5 g/cm³, titanium is about 60% lighter than steel, reducing the overall weight of piping systems. Titanium also offers excellent corrosion resistance in seawater, chlorides, nitric acid, and many organic acids, due to a stable, protective oxide film that forms naturally on its surface. The material is non-magnetic, non-toxic, and biocompatible, and maintains good mechanical strength at temperatures up to 600°C (depending on grade).

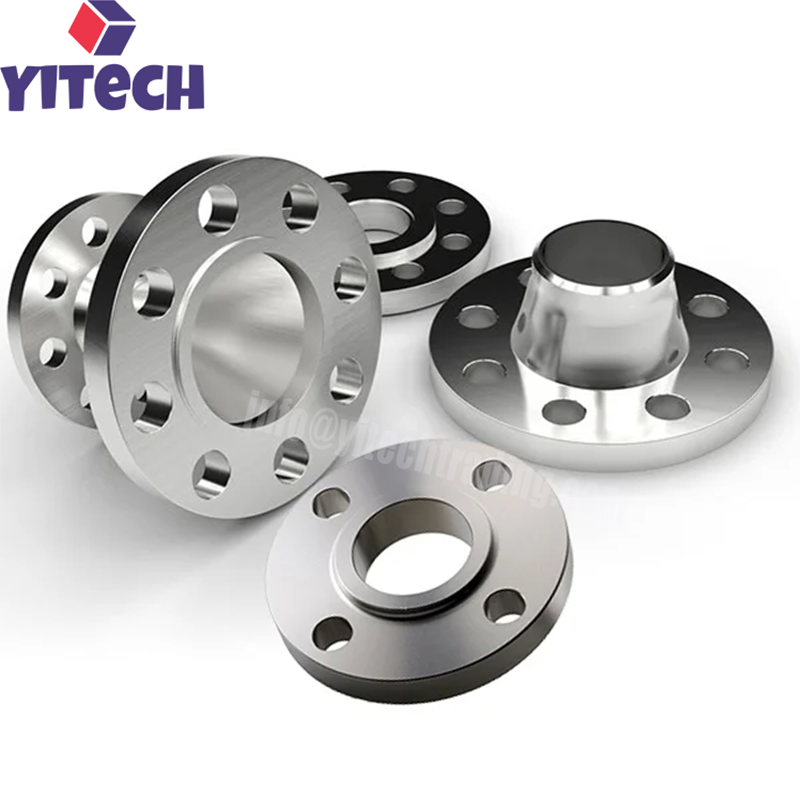

Titanium alloy flanges are available in multiple types: Weld Neck (WN), Slip-On (SO), Blind (BL), Threaded (TH), and Lap Joint (LJ). They can be manufactured to international standards including ASTM B381, ASME B16.5, DIN, EN, and JIS. Common grades include commercially pure titanium (GR1, GR2, GR3, GR4) for excellent corrosion resistance and formability, and titanium alloys (GR5, GR7, GR9, GR12) for higher strength or enhanced corrosion resistance. Sizes range from 1/2" to 24" with pressure ratings from Class 150 to Class 2500. Face types include Raised Face (RF), Flat Face (FF), and Ring Type Joint (RTJ). Surface finishes can be machined, polished, or sandblasted.

Features Of Pipe Fittings Titanium Alloy Flanges

• Excellent Corrosion Resistance: Titanium flanges resist seawater, chlorides, acids, alkalis, and many organic media.

• Lightweight: Density ~4.5 g/cm³, about 60% lighter than steel, reducing piping system weight.

• High Strength-to-Weight Ratio: Titanium alloys offer strength comparable to or exceeding many steels.

• Multiple Grades Available: GR1, GR2, GR3, GR4, GR5, GR7, GR9, GR12 to suit different corrosion and strength requirements.

• Wide Range of Types: WN, SO, BL, TH, LJ flanges available.

• Standard Compliance: ASTM B381, ASME B16.5, DIN, EN, JIS.

• Size Range: 1/2" to 24" (custom sizes available).

• Pressure Ratings: Class 150 to Class 2500.

• Face Types: RF, FF, RTJ.

• Surface Finishes: Machined, polished, sandblasted.

• Non-Magnetic and Non-Toxic: Suitable for medical and electronic applications.

• Good High-Temperature Performance: Maintains mechanical properties up to 600°C (depending on grade).

Applications Of Pipe Fittings Titanium Alloy Flanges

• Chemical and Petrochemical Industry: Piping systems handling corrosive chemicals, acids, alkalis, and chlorides. Titanium flanges resist attack from aggressive media.

• Marine and Offshore: Seawater piping, desalination plants, offshore platforms, and shipbuilding. Titanium's resistance to seawater corrosion is outstanding.

• Oil and Gas: Downhole tools, wellhead equipment, and pipeline systems where corrosion resistance and high strength are required.

• Aerospace and Defense: Fuel systems, hydraulic systems, and structural piping where lightweight and high strength are critical.

• Power Generation: Heat exchangers, condenser tubing, and cooling water systems in power plants.

• Medical and Pharmaceutical: Clean piping systems for pharmaceutical production and medical devices, benefiting from titanium's biocompatibility.

• Water Treatment: Desalination and wastewater treatment plants where corrosion resistance is essential.

Specifications Of Pipe Fittings Titanium Alloy Flanges
