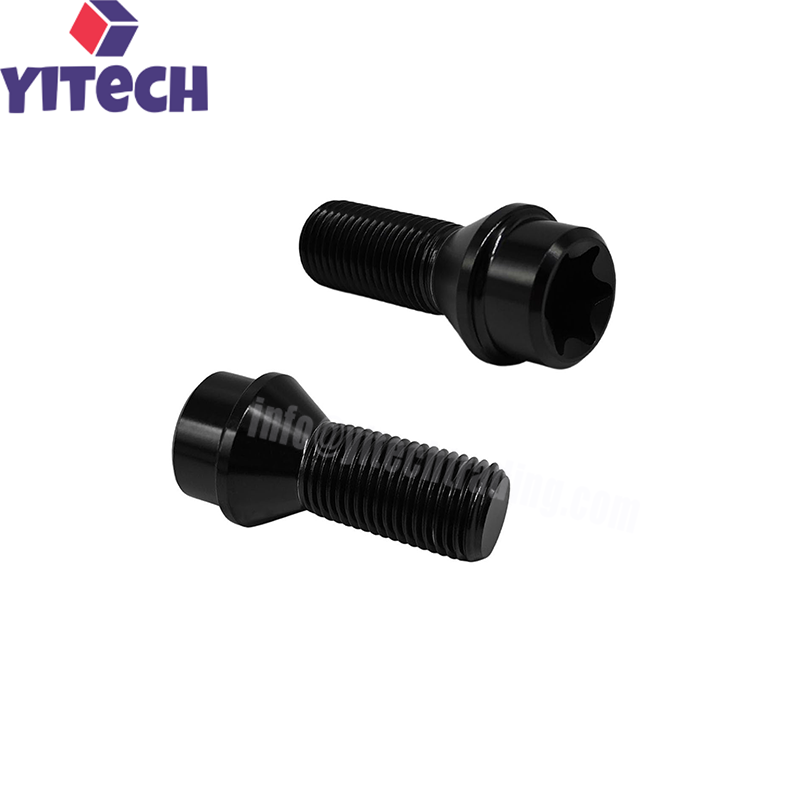

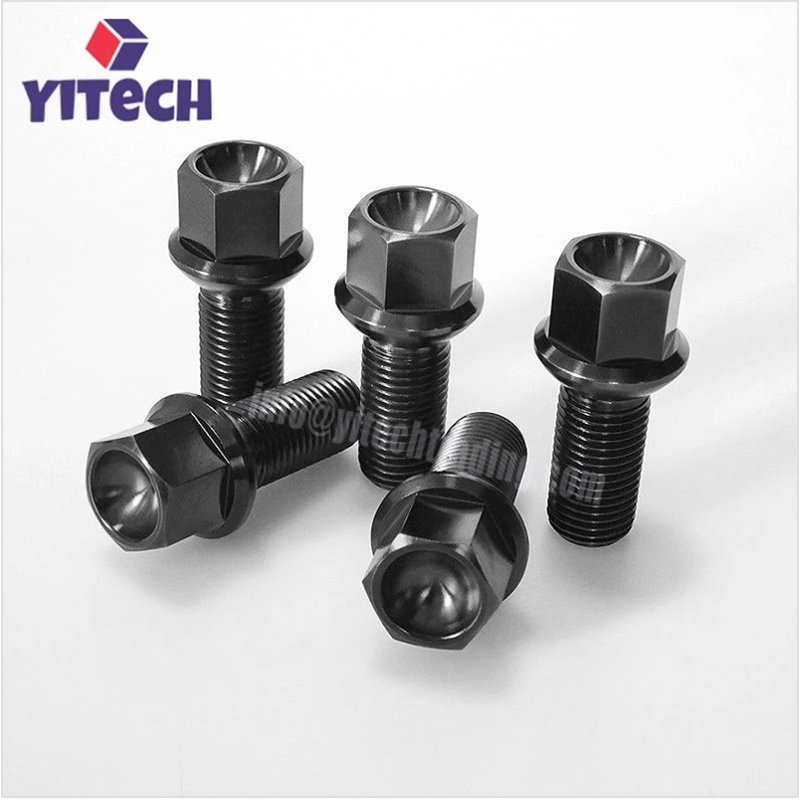

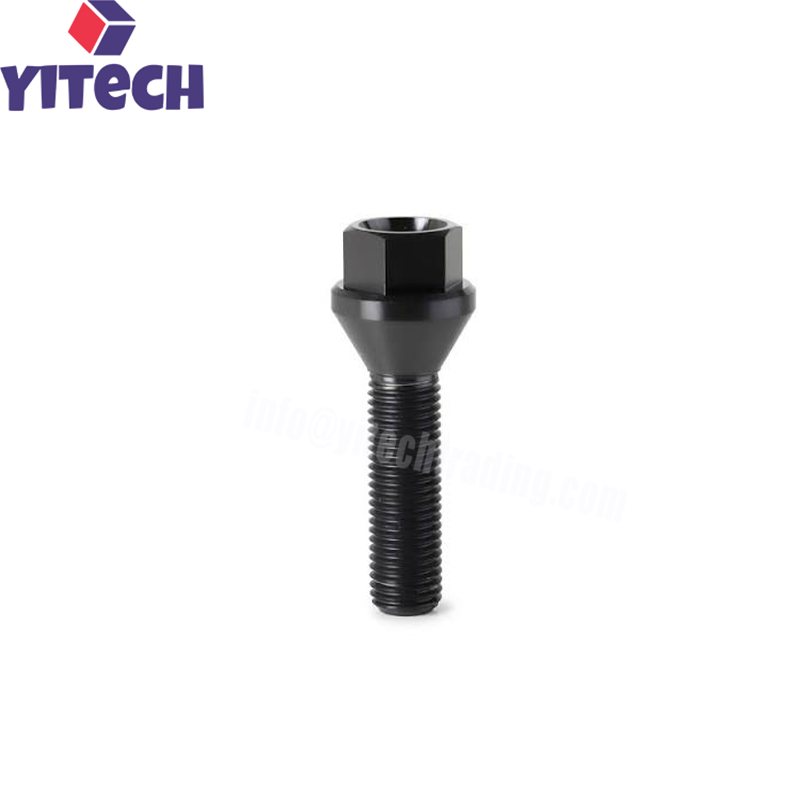

ISO Certificate M12 M14 Gr2 Titanium Fastener
- Standard M12 and M14 metric thread sizes, with custom sizes available
- Excellent corrosion resistance in seawater, chlorides, acids, and alkalis
- Lightweight — density 4.51 g/cm³, about 60% lighter than steel
- High strength-to-weight ratio — tensile strength ≥345 MPa
- Non-magnetic, non-toxic, and biocompatible
- Available as bolts, nuts, washers, studs, and custom fasteners
- Surface finishes: machined, polished, anodized, PVD coated
Description Of ISO Certificate M12 M14 Gr2 Titanium Fastener
ISO Certificate M12 M14 Gr2 Titanium Fastener refers to precision fasteners manufactured from Grade 2 commercially pure titanium (UNS R50400) with ISO 9001:2015 certification. These fasteners are available in standard M12 and M14 metric thread sizes, and include bolts, nuts, washers, studs, and custom designs. They are widely used in applications where corrosion resistance, lightweight, and reliable performance are critical.
Grade 2 titanium is the most widely used commercially pure titanium grade, offering an excellent balance of strength, ductility, and corrosion resistance. It has a density of 4.51 g/cm³, tensile strength of at least 345 MPa, and excellent resistance to seawater, chlorides, acids, and alkalis. The material is non-magnetic, non-toxic, and biocompatible, making it suitable for medical and food-processing applications.
The manufacturing process begins with high-quality Gr2 titanium bar stock, which is CNC machined to precise dimensions and thread profiles. M12 and M14 threads are manufactured to ISO metric standards (DIN 13, ISO 965). Fasteners are then inspected for dimensions, thread quality, and mechanical properties. The ISO 9001:2015 certificate ensures that the entire production process—from raw material to finished product—is controlled and traceable.
These fasteners are available with a variety of surface finishes, including machined, polished, anodized, and PVD coated. Custom sizes, thread forms, and head styles are available upon request.
Features Of ISO Certificate M12 M14 Gr2 Titanium Fastener
ISO 9001:2015 Certified: Full traceability and quality assurance from raw material to finished product.
Grade 2 Titanium: Commercially pure titanium with excellent corrosion resistance and moderate strength.
Standard M12 & M14 Sizes: Metric threads manufactured to ISO 965 / DIN 13 standards.
Excellent Corrosion Resistance: Resists seawater, chlorides, acids, alkalis, and many organic media.
Lightweight: Density 4.51 g/cm³, about 60% lighter than steel.
High Strength-to-Weight Ratio: Tensile strength ≥345 MPa, yield strength ≥275 MPa.
Non-Magnetic and Non-Toxic: Suitable for medical and electronic applications.
Biocompatible: Compliant with medical implant requirements (ISO 5832-2).
Multiple Fastener Types: Bolts, nuts, washers, studs, and custom designs.
Surface Finishes: Machined, polished, anodized, PVD coated.
Custom Sizes Available: Non-standard dimensions and thread forms available upon request.
Specifications Of ISO Certificate M12 M14 Gr2 Titanium Fastener
| Parameter | Specification |
|---|---|
| Standard | ASTM B348, ISO 5832-2, DIN 13, ISO 965 |
| Certification | ISO 9001:2015 |
| Thread Sizes | M12, M14 (custom sizes available) |
| Thread Pitch | M12×1.75, M14×2.0 (standard); fine pitch available |
| Density | 4.51 g/cm³ |
| Tensile Strength | ≥345 MPa |
| Yield Strength | ≥275 MPa |
| Elongation | ≥20% |
| Elastic Modulus | ~105 GPa |
| Hardness | ~70 HRB |
| Operating Temperature | Up to 300°C (continuous); 600°C (short-term) |
| Surface Finish | Machined, polished, anodized, PVD coated |
| Fastener Types | Bolts, nuts, washers, studs, custom |
| Head Styles | Hex, socket head, button head, flat head, custom |
