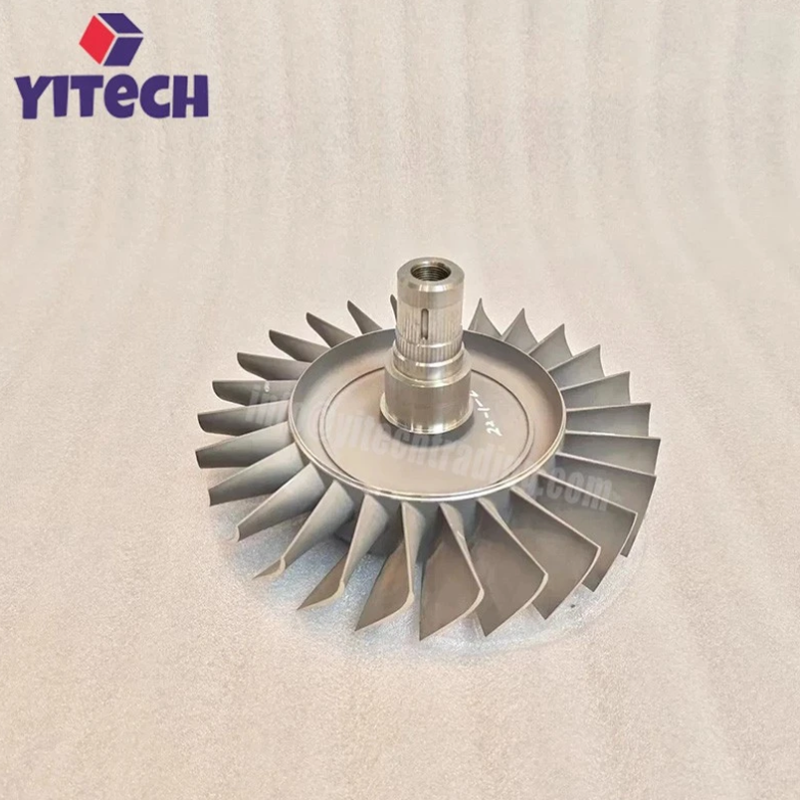

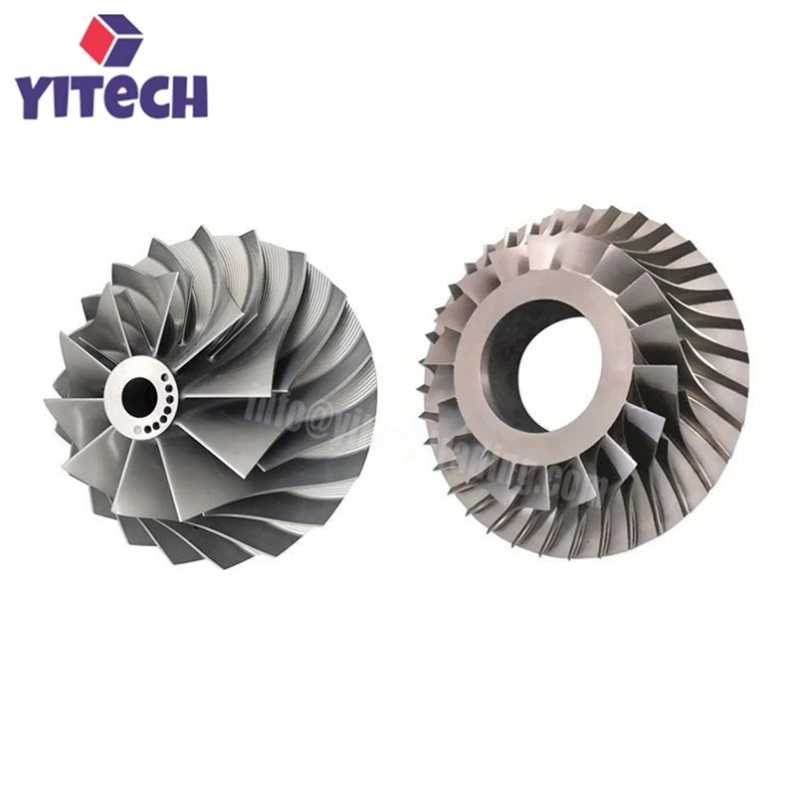

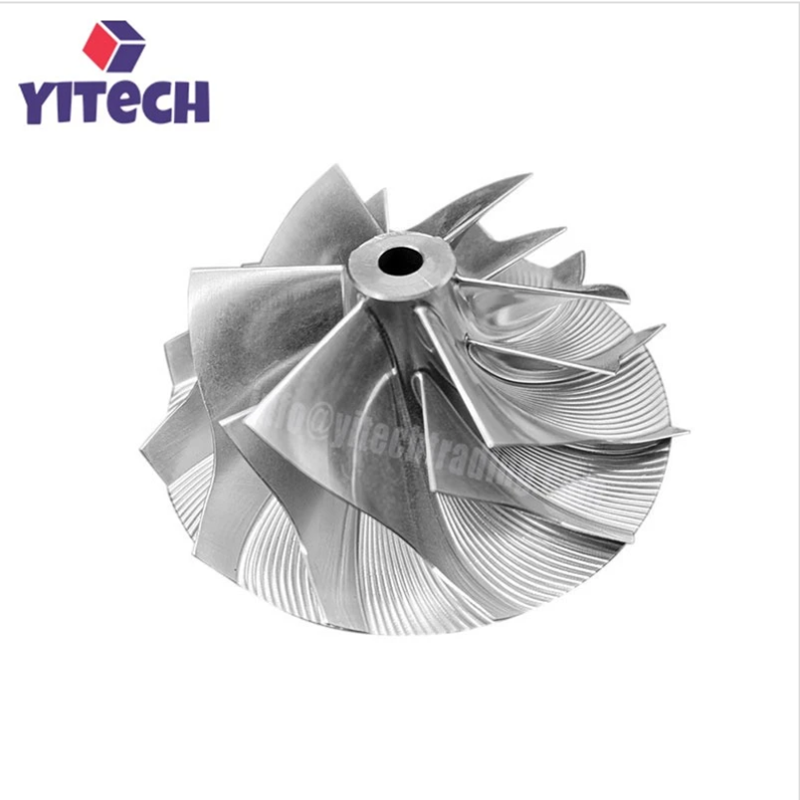

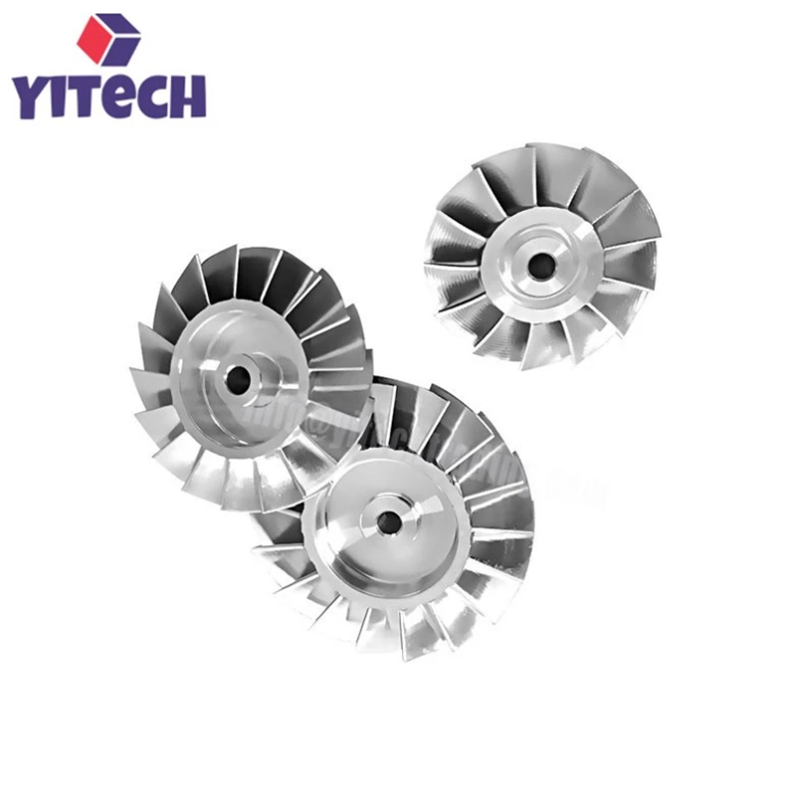

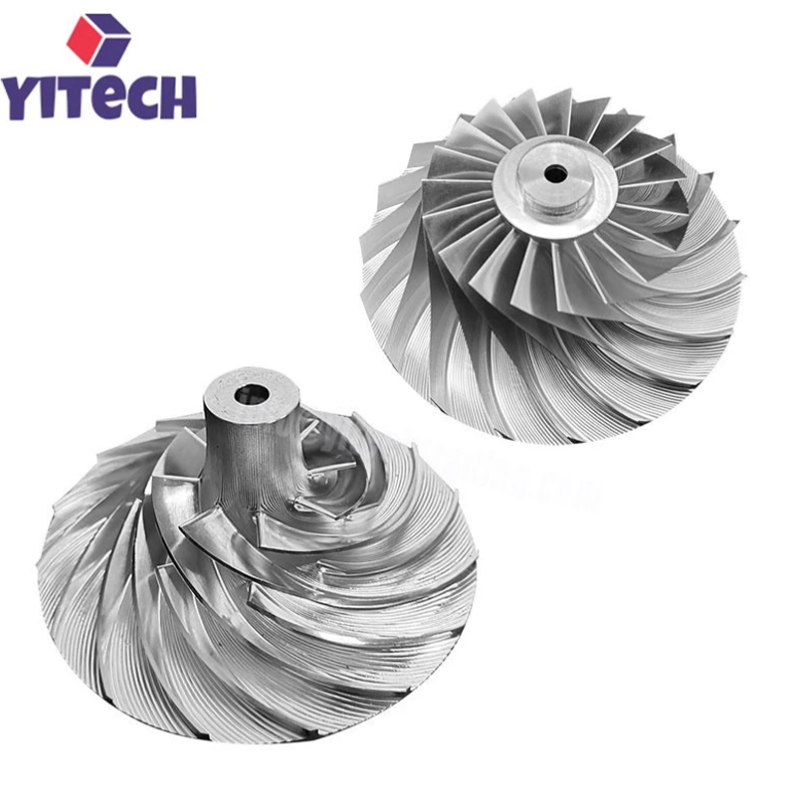

5 Axis CNC Machining Titanium Alloy Machining Parts Turbine
- High-strength titanium alloys: Ti-6Al-4V, Ti-6242, Ti-6246, and more
- Tight tolerances down to ±0.005mm and surface roughness Ra ≤0.4μm
- Excellent strength-to-weight ratio — 60% lighter than steel with comparable strength
- Outstanding corrosion resistance and high-temperature stability up to 600°C
- Full inspection: CMM, optical comparator, surface roughness tester, X-ray, FPI
- Surface finishes: machined, polished, shot-peened, anodized, coated
- Ideal for turbine blades, impellers, discs, casings, and shrouds
Description Of 5 Axis CNC Machining Titanium Alloy Machining Parts Turbine
5 Axis CNC Machining Titanium Alloy Machining Parts Turbine refers to precision titanium alloy components for turbine applications manufactured using 5-axis simultaneous CNC machining technology. These parts include turbine blades, impellers, turbine discs, casings, shrouds, and other complex geometries used in aircraft engines, gas turbines, turbochargers, and industrial turbines.
The manufacturing process begins with high-quality titanium alloy blanks (forgings, bar stock, or castings) in materials such as Ti-6Al-4V, Ti-6242, or Ti-6246. 5-axis CNC machining centers with high-speed spindles (up to 20,000 RPM) and advanced CAM programming are used to achieve complex airfoil profiles, twisted blades, and intricate internal features in a single setup. This reduces setup errors, improves dimensional accuracy, and shortens lead times.
Titanium alloys offer exceptional properties for turbine applications: density of approximately 4.5 g/cm³ (60% lighter than steel), high tensile strength up to 1,100 MPa, excellent corrosion resistance, and good high-temperature performance up to 600°C. The machined parts are inspected using CMM, optical comparators, and surface roughness testers to ensure compliance with tight tolerances (±0.005mm) and surface finish requirements (Ra ≤0.4μm). Post-processing options include polishing, shot-peening, anodizing, and coating.
Features Of 5 Axis CNC Machining Titanium Alloy Machining Parts Turbine
5-Axis Simultaneous Machining: Complex turbine geometries, twisted blades, and airfoil profiles machined in a single setup for superior accuracy.
High-Speed Spindles: Up to 20,000 RPM for efficient titanium machining with excellent surface finish.
Advanced CAM Programming: Optimized tool paths for titanium alloys, reducing cycle time and tool wear.
Tight Tolerances: ±0.005mm dimensional accuracy for critical turbine components.
Excellent Surface Finish: Ra ≤0.4μm, with polishing and shot-peening available for improved fatigue life.
Titanium Alloy Expertise: Proven experience machining Ti-6Al-4V, Ti-6242, Ti-6246, and other high-temperature alloys.
Full Inspection: CMM, optical comparator, surface roughness tester, X-ray, and fluorescent penetrant inspection.
Material Traceability: Full certification and traceability from raw material to finished part.
Post-Processing: Polishing, shot-peening, anodizing, and coating services available.
Specifications Of 5 Axis CNC Machining Titanium Alloy Machining Parts Turbine
| Parameter | Specification |
|---|---|
| Material | Titanium alloy (Ti-6Al-4V, Ti-6242, Ti-6246, etc.) |
| Machining Process | 5-axis simultaneous CNC machining |
| Axis Configuration | 5-axis (X, Y, Z, A, B or C) |
| Spindle Speed | Up to 20,000 RPM |
| Tolerance | ±0.005 mm (standard); ±0.002 mm (high-precision) |
| Surface Roughness | Ra ≤0.4μm (machined); Ra ≤0.1μm (polished) |
| Max Part Size | Up to 800 mm diameter × 600 mm height |
| Material Density | 4.43 – 4.65 g/cm³ |
| Tensile Strength | 900 – 1,100 MPa |
| Operating Temperature | Up to 600°C (depending on alloy) |
| Inspection | CMM, optical comparator, surface roughness tester, X-ray, FPI |
| Surface Finish | Machined, polished, shot-peened, anodized, coated |
