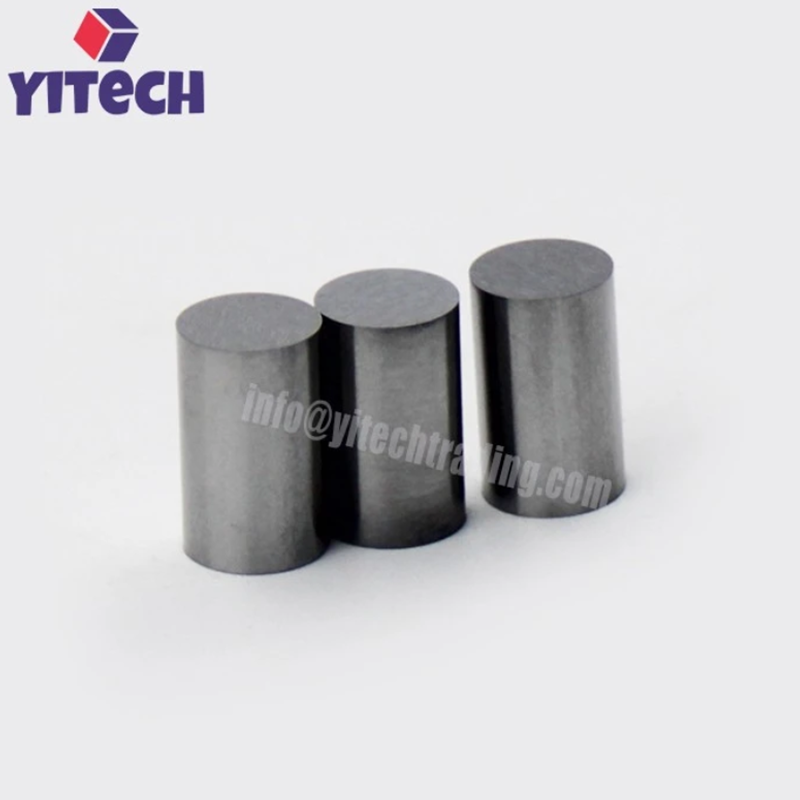

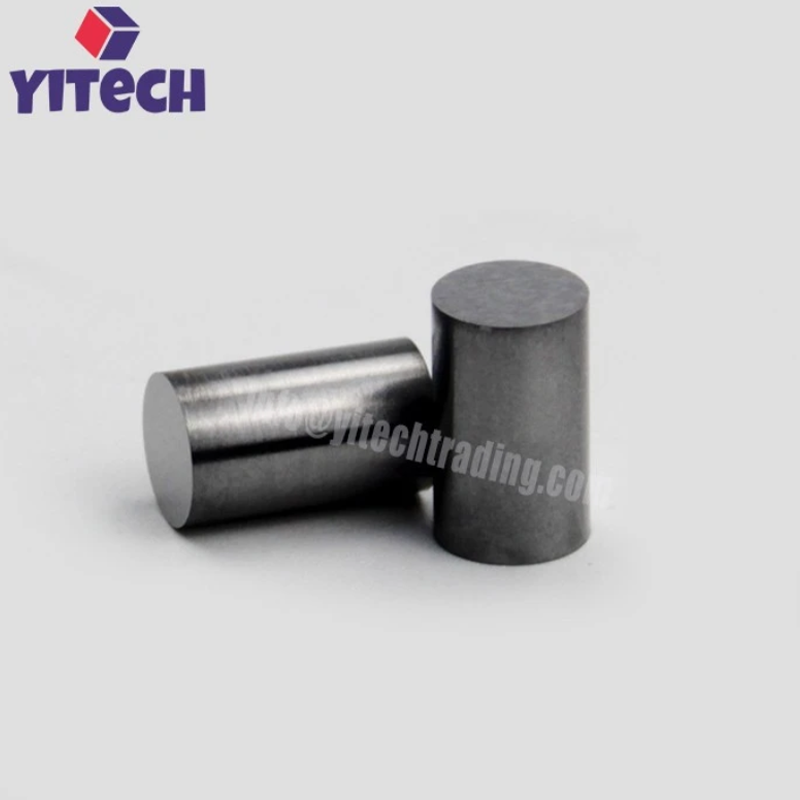

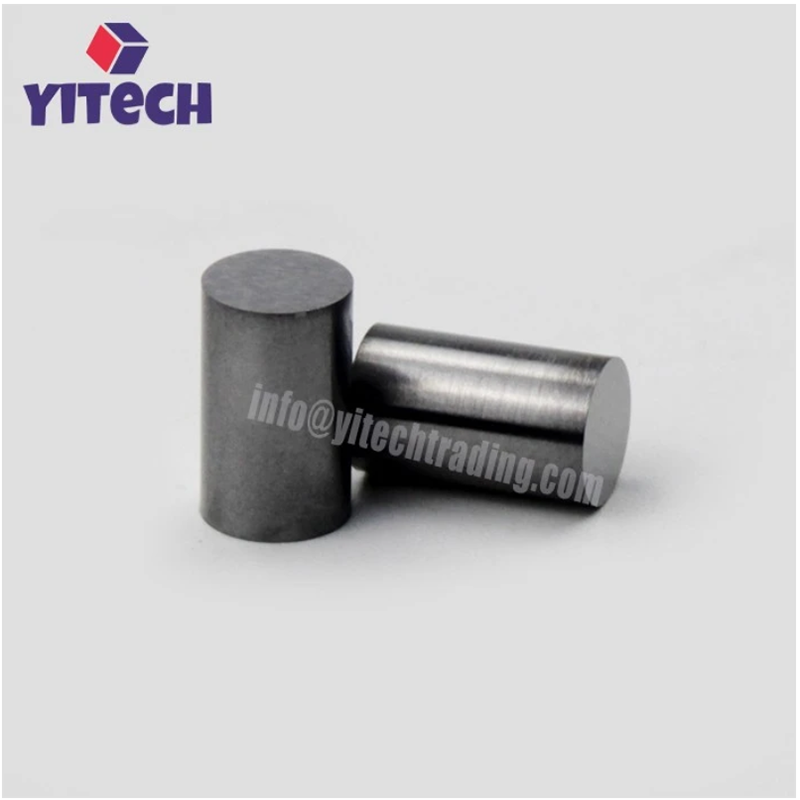

High Purity Beryllium Rod | Pure Beryllium Bar Supplier
- High-purity beryllium rod with 99.9% purity (3N grade)
- Pure beryllium bar for demanding applications
- Low density 1.848 g/cm³ — ideal for X-ray and aerospace applications
- High X-ray transmissivity for low-energy X-ray detection
- Excellent thermal conductivity (2.01 W/cm/K)
- Superior strength-to-weight ratio and corrosion resistance
- Ideal for X-ray windows, sputtering targets, and aerospace components
- Custom diameters and lengths available per customer requirements
- Surface finishes: machined, polished, ground
Description Of High Purity Beryllium Rod
High Purity Beryllium Rod is a high-purity beryllium metal rod manufactured from pure beryllium with 99.9% purity (3N grade). As a pure beryllium bar supplier, we provide beryllium rods in custom diameters and lengths tailored to specific application requirements. Beryllium is a lightweight, silver-grey metal with a density of 1.848 g/cm³, excellent X-ray transmissivity, and superior mechanical strength.
Beryllium offers a unique combination of properties that make it ideal for demanding applications. With low density and low atomic number (Z=4), beryllium provides high transmissivity for low-energy X-rays, minimizing spectral contamination and improving detection sensitivity. The material also offers high strength, excellent thermal conductivity, and good thermal stability.
High purity beryllium rods are available in custom diameters and lengths, with surface finishes including machined, polished, and ground. Typical applications include X-ray windows, sputtering targets, aerospace components, and analytical instruments.
Features Of High Purity Beryllium Rod
High Purity: 99.9% purity (3N grade), ensuring minimal spectral contamination.
Low Density: 1.848 g/cm³, enabling high X-ray transmissivity.
High Strength: Superior mechanical strength for structural applications.
Excellent Thermal Conductivity: 2.01 W/cm/K for efficient heat dissipation.
Corrosion Resistance: Resists moisture, solvents, and many chemicals.
Customizable Dimensions: Custom diameters and lengths available.
Surface Options: Machined, polished, ground.
ISO 9001 Certified: Full traceability and quality assurance.
Specifications Of High Purity Beryllium Rod
| Parameter | Specification |
|---|---|
| Material | Beryllium (Be) |
| Purity | ≥99.9% (3N grade) |
| Density | 1.848 g/cm³ |
| Melting Point | 1277°C |
| Boiling Point | 2970°C |
| Young's Modulus | 287 GPa |
| Thermal Conductivity | 2.01 W/cm/K |
| Thermal Expansion | 11.3 µm/(m·K) |
| Electrical Resistivity | 4.0 µΩ·cm |
| Shape | Rod / Bar |
| Diameter Range | Customizable |
| Length | Customizable |
| Surface Finish | Machined, polished, ground |
