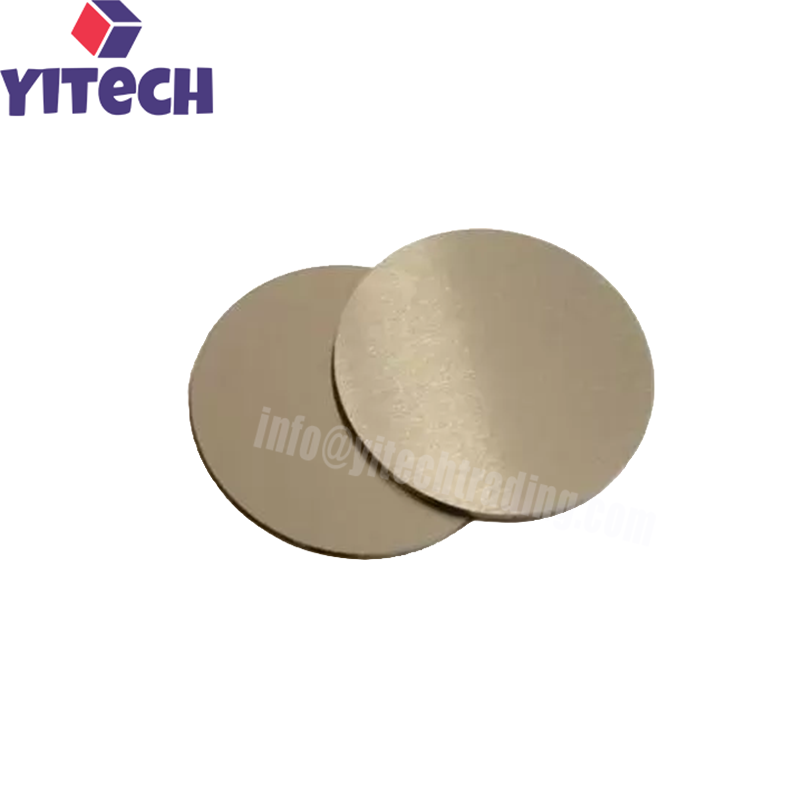

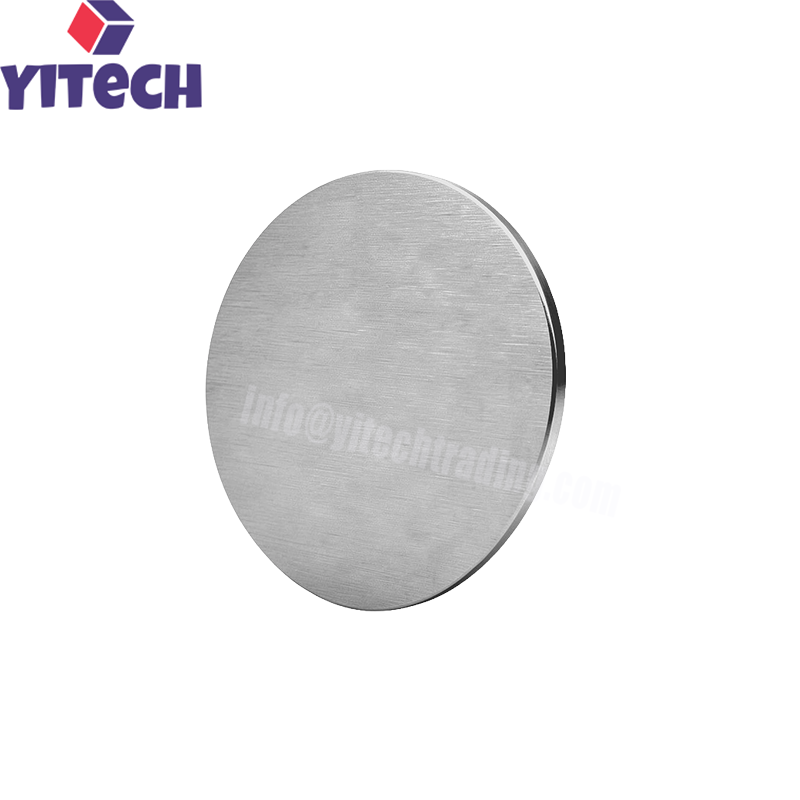

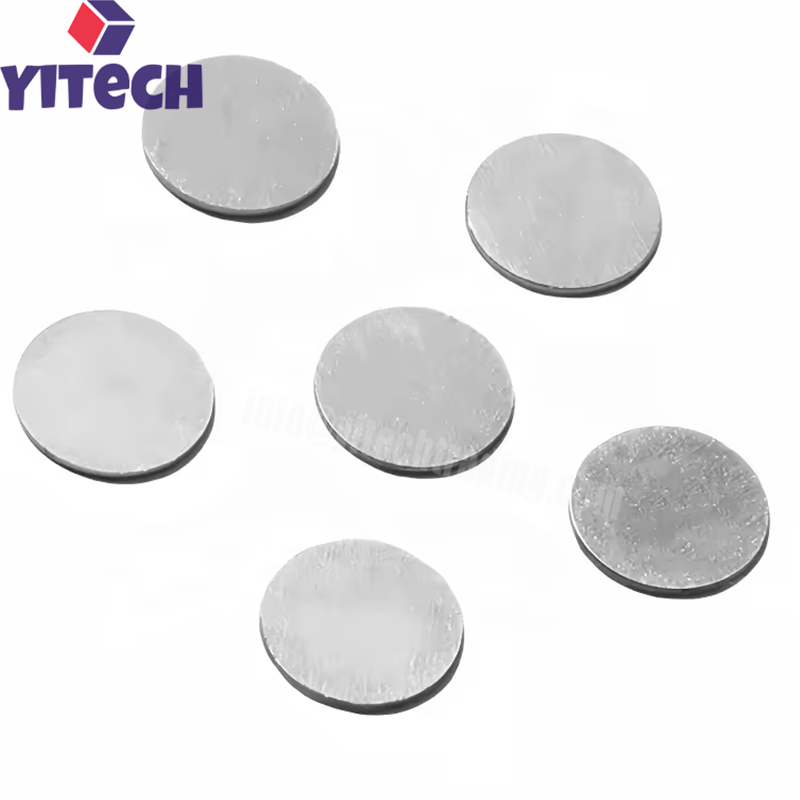

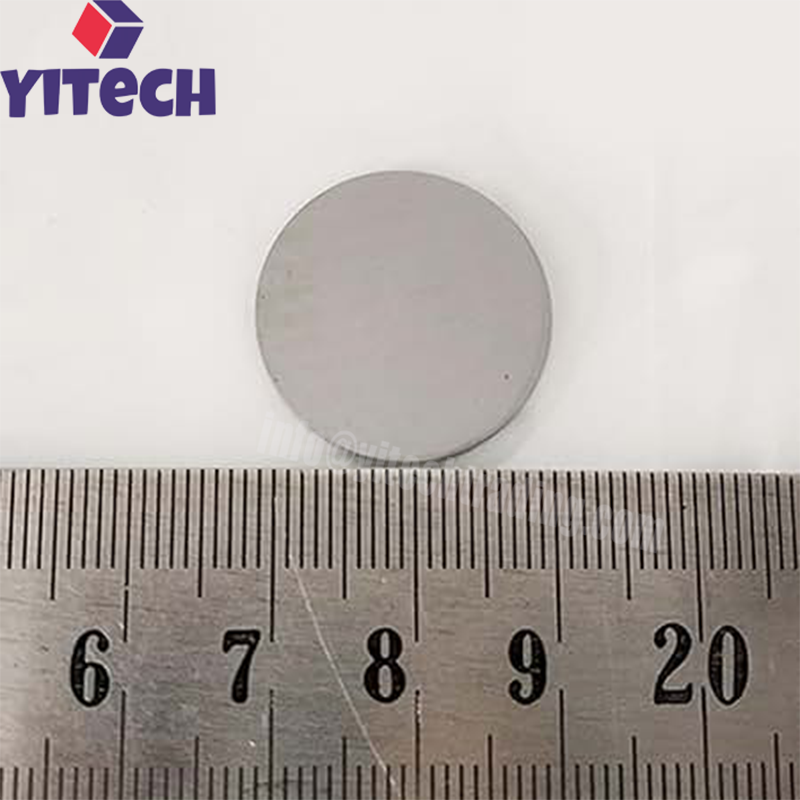

Beryllium Sheet | High Purity Beryllium Sheet 99.9%
- High-purity beryllium sheet with 99.9% purity (3N grade)
- Low density 1.848 g/cm³ — ideal for X-ray window applications
- High X-ray transmissivity for low-energy X-ray detection
- Excellent vacuum tightness with leak rate < 3×10⁻¹⁰ mbar·L/s
- Available in ultra-thin gauges from 8μm
- Superior strength-to-weight ratio and corrosion resistance
- Ideal for X-ray detectors, EDXRF, WDXRF, XRD, and medical imaging
- Custom thickness, width, and length available per customer requirements
- Surface finishes: as-rolled, vacuum-tight, optically-dense
- ISO 9001 certified manufacturing
Description Of Beryllium Sheet
Beryllium Sheet is a thin, high-purity beryllium metal sheet manufactured from pure beryllium with 99.9% purity (3N grade). Beryllium is a lightweight, silver-grey metal with a density of 1.848 g/cm³, excellent X-ray transmissivity, and superior mechanical strength. These sheets are widely used as X-ray windows in detectors, spectrometers, and medical imaging equipment.
Beryllium offers a unique combination of properties that make it ideal for X-ray window applications. With low density and low atomic number (Z=4), beryllium provides high transmissivity for low-energy X-rays, minimizing spectral contamination and improving detection sensitivity. The material also offers high strength even in thin gauges, excellent vacuum tightness, and good thermal stability.
High purity beryllium sheets are available in ultra-thin gauges from 8μm, with surface finishes including as-rolled, vacuum-tight, and optically-dense. Custom thicknesses, widths, and lengths are available upon request. Typical applications include X-ray detectors (EDXRF, WDXRF, XRD), medical imaging systems, X-ray tubes, and analytical instruments.
Features Of Beryllium Sheet
High Purity: 99.9% purity (3N grade), ensuring minimal spectral contamination in X-ray analysis.
Low Density: 1.848 g/cm³, enabling high X-ray transmissivity for low-energy detection.
Ultra-Thin Gauges: Available from 8μm, ideal for high-resolution X-ray windows.
Excellent Vacuum Tightness: Leak rate < 3×10⁻¹⁰ mbar·L/s for reliable vacuum isolation.
High Strength: Superior mechanical strength even in thin gauges.
Corrosion Resistance: Resists moisture, solvents, and many chemicals.
Customizable Dimensions: Custom thickness, width, and length available.
Surface Options: As-rolled, vacuum-tight, optically-dense.
ISO 9001 Certified: Full traceability and quality assurance.
Applications Of Beryllium Sheet
X-Ray Detectors: Beryllium sheets are used as X-ray windows in EDXRF, WDXRF, and XRD detectors, providing high transmissivity for low-energy X-rays.
Medical Imaging: Beryllium sheets are used in X-ray tubes and detectors for mammography, CT scan systems, and other medical imaging equipment.
Analytical Instruments: Beryllium sheets are used in X-ray spectroscopy, electron microscopy, and other analytical equipment.
Semiconductor Inspection: Beryllium sheets are used in semiconductor inspection equipment for X-ray analysis.
Vacuum Systems: Beryllium sheets are used as vacuum viewports and barriers in UHV systems.
Aerospace and Research: Beryllium sheets are used in high-energy physics research and aerospace applications.
Specifications Of Beryllium Sheet
| Parameter | Specification |
|---|---|
| Material | Beryllium (Be) |
| Purity | ≥99.9% (3N grade) |
| Density | 1.848 g/cm³ |
| Melting Point | 1277°C |
| Boiling Point | 2970°C |
| Young's Modulus | 287 GPa |
| Thermal Conductivity | 2.01 W/cm/K |
| Thermal Expansion | 11.3 µm/(m·K) |
| Electrical Resistivity | 4.0 µΩ·cm |
