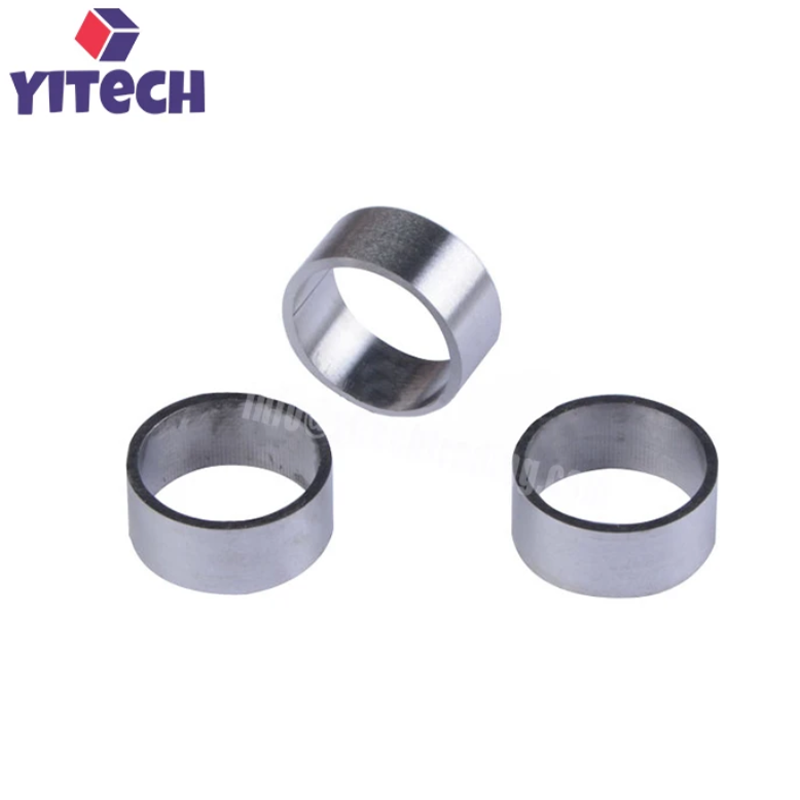

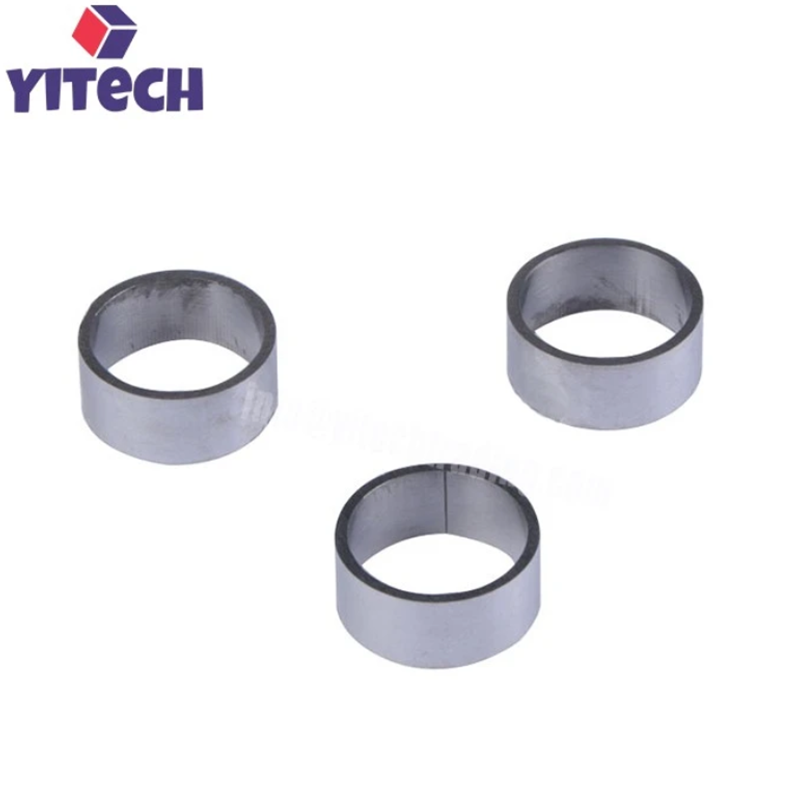

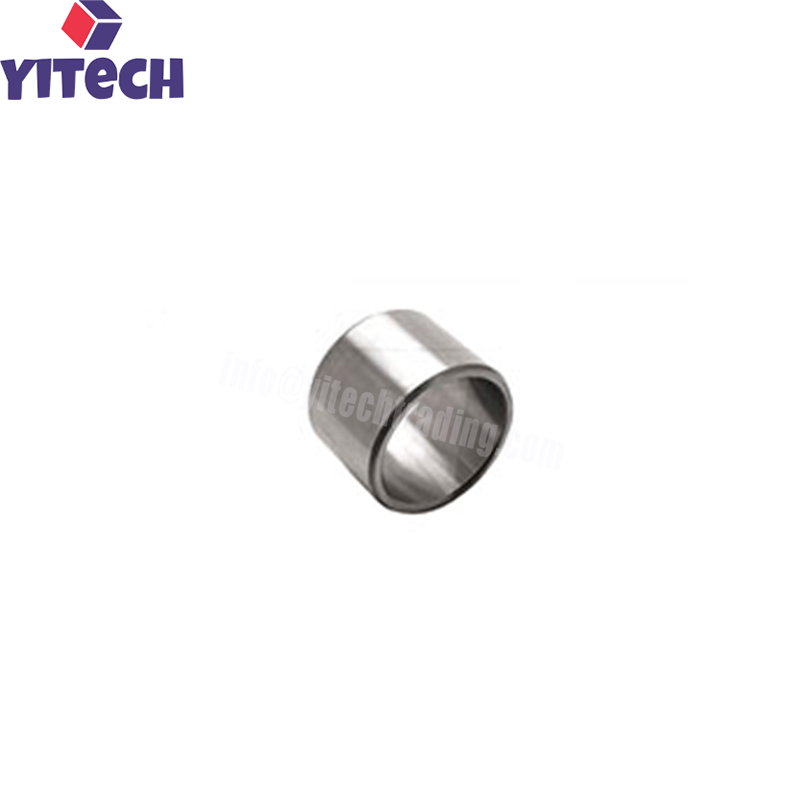

High Purity Beryllium Ring | Custom Beryllium Component Supplier
- High-purity beryllium ring with 99.9% purity (3N grade)
- Custom sizes and shapes available per customer requirements
- Low density 1.848 g/cm³ — ideal for X-ray and vacuum applications
- High X-ray transmissivity for low-energy X-ray detection
- Excellent vacuum tightness with leak rate < 3×10⁻¹⁰ mbar·L/s
- Superior strength-to-weight ratio and corrosion resistance
- Ideal for X-ray windows, vacuum components, and aerospace applications
- Surface finishes: machined, polished, ground
- Direct supplier with ISO 9001 certified manufacturing
Description Of High Purity Beryllium Ring
High Purity Beryllium Ring is a high-purity beryllium metal ring manufactured from pure beryllium with 99.9% purity (3N grade). As a custom beryllium component supplier, we provide beryllium rings in custom sizes and shapes tailored to specific application requirements. Beryllium is a lightweight, silver-grey metal with a density of 1.848 g/cm³, excellent X-ray transmissivity, and superior mechanical strength.
Beryllium offers a unique combination of properties that make it ideal for demanding applications. With low density and low atomic number (Z=4), beryllium provides high transmissivity for low-energy X-rays, minimizing spectral contamination and improving detection sensitivity. The material also offers high strength, excellent vacuum tightness, and good thermal stability.
High purity beryllium rings are available in custom sizes and shapes, with surface finishes including machined, polished, and ground. Typical applications include X-ray windows, vacuum components, aerospace structural components, and analytical instruments.
Features Of High Purity Beryllium Ring
High Purity: 99.9% purity (3N grade), ensuring minimal spectral contamination.
Custom Sizes: Custom sizes and shapes available per customer requirements.
Low Density: 1.848 g/cm³, enabling high X-ray transmissivity.
High Strength: Superior mechanical strength for structural applications.
Excellent Vacuum Tightness: Suitable for UHV applications.
Corrosion Resistance: Resists moisture, solvents, and many chemicals.
Customizable Dimensions: Custom sizes and shapes available.
Surface Options: Machined, polished, ground.
ISO 9001 Certified: Full traceability and quality assurance.
Precautions Of High Purity Beryllium Ring
Health Hazards: Beryllium is a toxic material. Inhalation of beryllium dust or fumes can cause serious lung disease (berylliosis). Use in well-ventilated areas or fume hoods. Wear appropriate personal protective equipment (PPE), including gloves and respirators.
Handling and Storage: Handle beryllium rings with care to avoid generating dust or particles. Store in a dry, clean environment, away from strong acids and bases.
Cleaning: Clean with high-purity solvents (methanol, isopropanol, or ethanol). Avoid abrasive cleaners that could damage the surface or generate dust.
Machining Guidelines: Use sharp carbide tooling, adequate cooling, and appropriate cutting speeds. Avoid generating fine dust. Collect and dispose of machining chips properly.
Specifications Of High Purity Beryllium Ring
| Parameter | Specification |
|---|---|
| Material | Beryllium (Be) |
| Purity | ≥99.9% (3N grade) |
| Density | 1.848 g/cm³ |
| Melting Point | 1277°C |
| Boiling Point | 2970°C |
| Young's Modulus | 287 GPa |
| Thermal Conductivity | 2.01 W/cm/K |
| Thermal Expansion | 11.3 µm/(m·K) |
| Electrical Resistivity | 4.0 µΩ·cm |
| Shape | Ring, custom |
| Dimensions | Customizable |
| Surface Finish | Machined, polished, ground |
