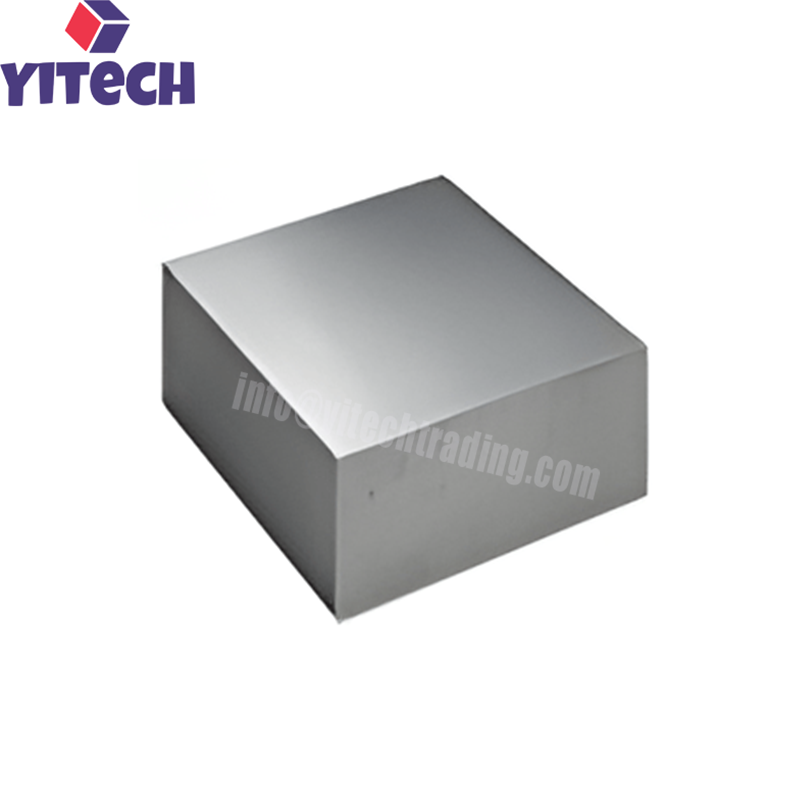

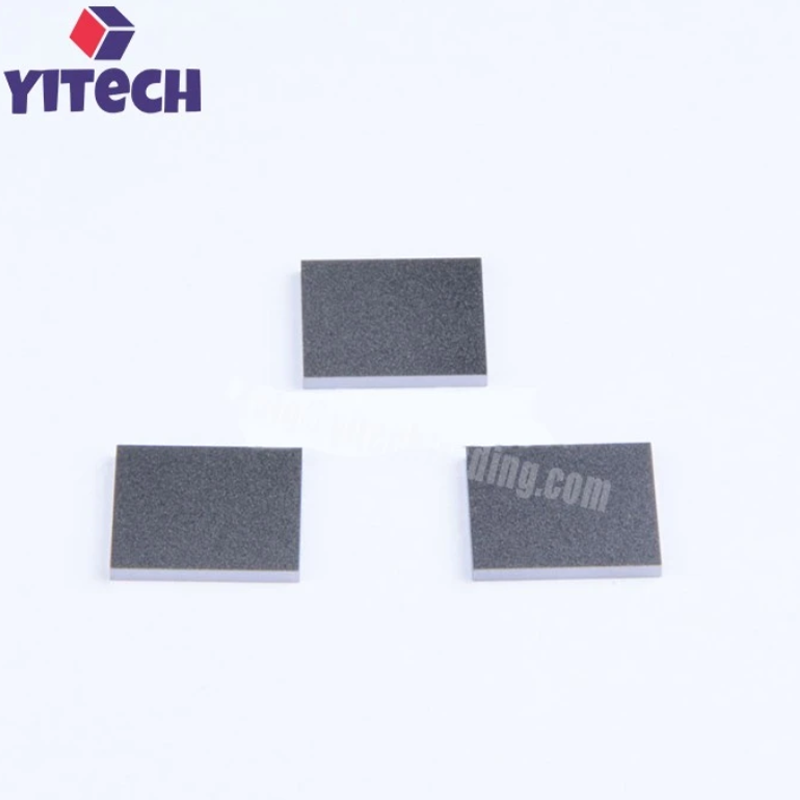

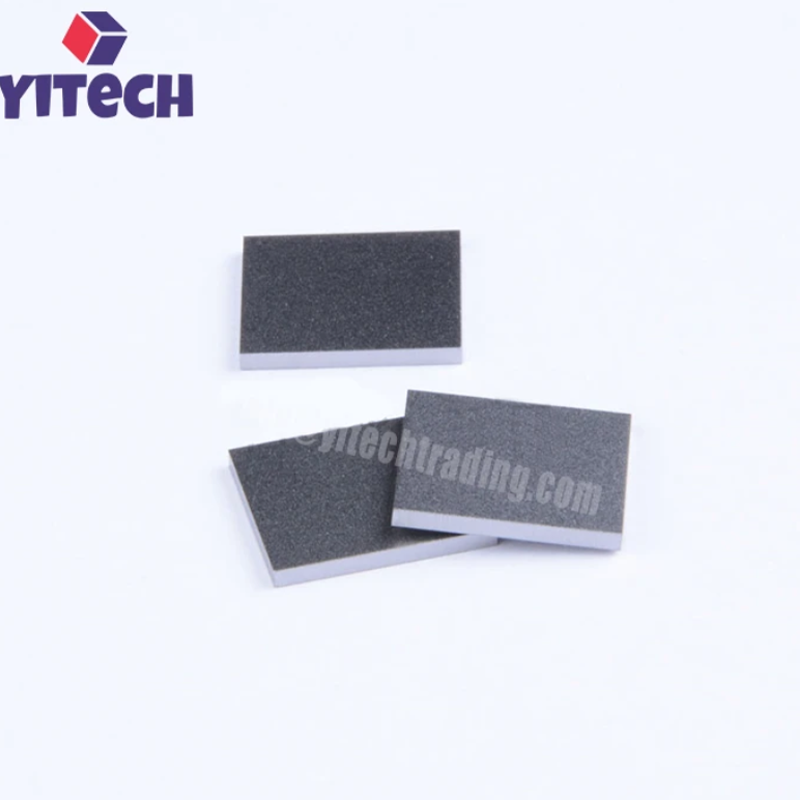

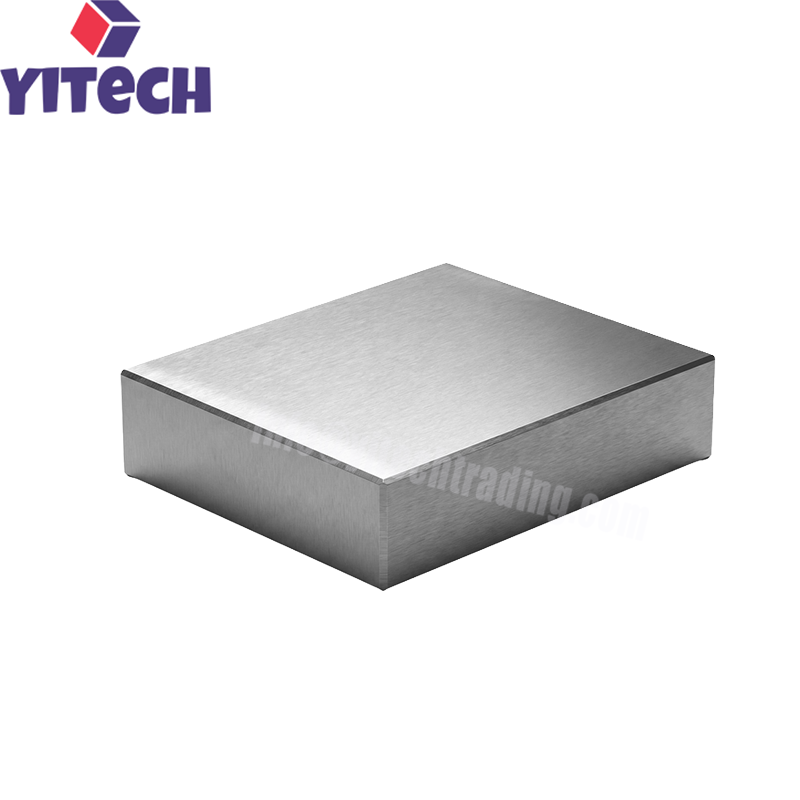

High Purity Beryllium Block 99.9% for X-Ray Window
- High-purity beryllium block with 99.9% purity (3N grade)
- Specifically designed for X-ray window applications
- Low density 1.848 g/cm³ — ideal for X-ray window applications
- High X-ray transmissivity for low-energy X-ray detection
- Excellent vacuum tightness with leak rate < 3×10⁻¹⁰ mbar·L/s
- Superior strength-to-weight ratio and corrosion resistance
- Custom sizes and shapes available per customer requirements
- Ideal for X-ray detectors, EDXRF, WDXRF, XRD, and medical imaging
- Surface finishes: machined, polished, ground
- ISO 9001 certified manufacturing
Description Of High Purity Beryllium Block 99.9% for X-Ray Window
High Purity Beryllium Block 99.9% is a high-purity beryllium metal block specifically designed for X-ray window applications. Beryllium is a lightweight, silver-grey metal with a density of 1.848 g/cm³, excellent X-ray transmissivity, and superior mechanical strength. These blocks are used as the starting material for machining X-ray windows, which are critical components in X-ray detectors, spectrometers, and medical imaging equipment.
Beryllium offers a unique combination of properties that make it ideal for X-ray window applications. With low density and low atomic number (Z=4), beryllium provides high transmissivity for low-energy X-rays, minimizing spectral contamination and improving detection sensitivity. The material also offers high strength even in thin sections, excellent vacuum tightness, and good thermal stability.
High purity beryllium blocks are available in custom sizes and shapes, with surface finishes including machined, polished, and ground. Typical applications include X-ray detectors (EDXRF, WDXRF, XRD), medical imaging systems, X-ray tubes, and analytical instruments.
Features Of High Purity Beryllium Block 99.9% for X-Ray Window
High Purity: 99.9% purity (3N grade), ensuring minimal spectral contamination in X-ray analysis.
Designed for X-Ray Windows: Specifically optimized for X-ray window machining and applications.
Low Density: 1.848 g/cm³, enabling high X-ray transmissivity for low-energy detection.
High Strength: Superior mechanical strength for structural applications.
Excellent Vacuum Tightness: Suitable for UHV applications.
Corrosion Resistance: Resists moisture, solvents, and many chemicals.
Customizable Dimensions: Custom sizes and shapes available per customer requirements.
Surface Options: Machined, polished, ground.
ISO 9001 Certified: Full traceability and quality assurance.
Specifications Of High Purity Beryllium Block 99.9% for X-Ray Window
| Parameter | Specification |
|---|---|
| Material | Beryllium (Be) |
| Purity | ≥99.9% (3N grade) |
| Density | 1.848 g/cm³ |
| Melting Point | 1277°C |
| Boiling Point | 2970°C |
| Young's Modulus | 287 GPa |
| Thermal Conductivity | 2.01 W/cm/K |
| Thermal Expansion | 11.3 µm/(m·K) |
| Electrical Resistivity | 4.0 µΩ·cm |
| Shape | Block, custom |
| Thickness/Dimensions | Customizable |
| Surface Finish | Machined, polished, ground |
| Certification | ISO 9001 |
