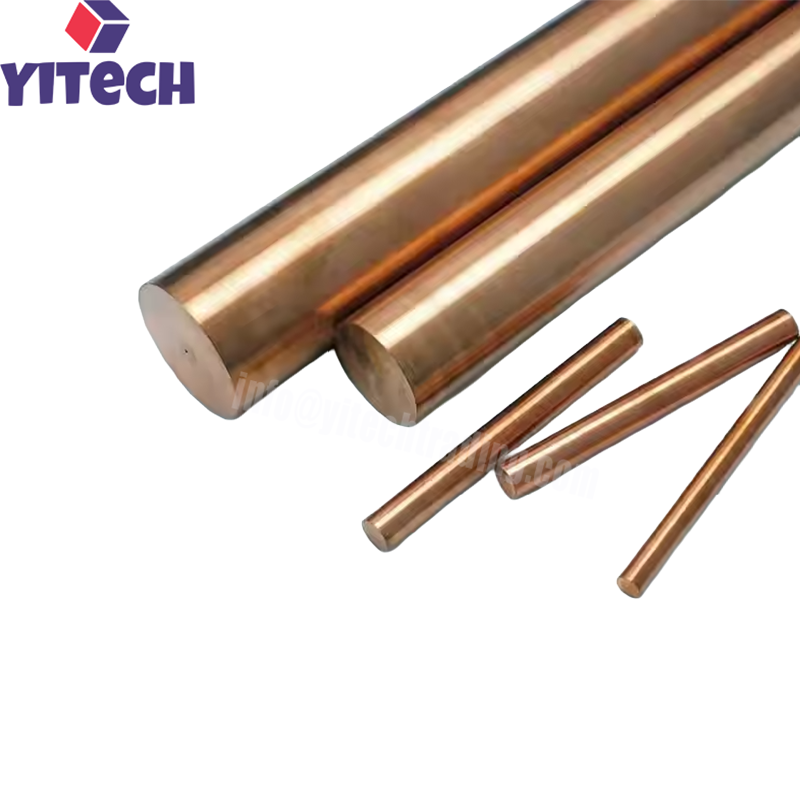

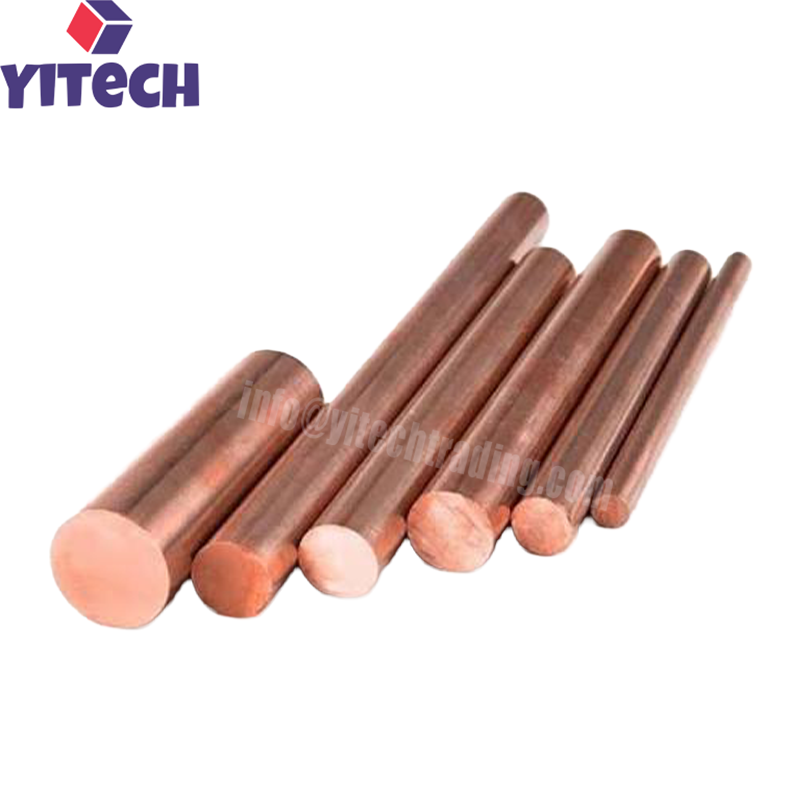

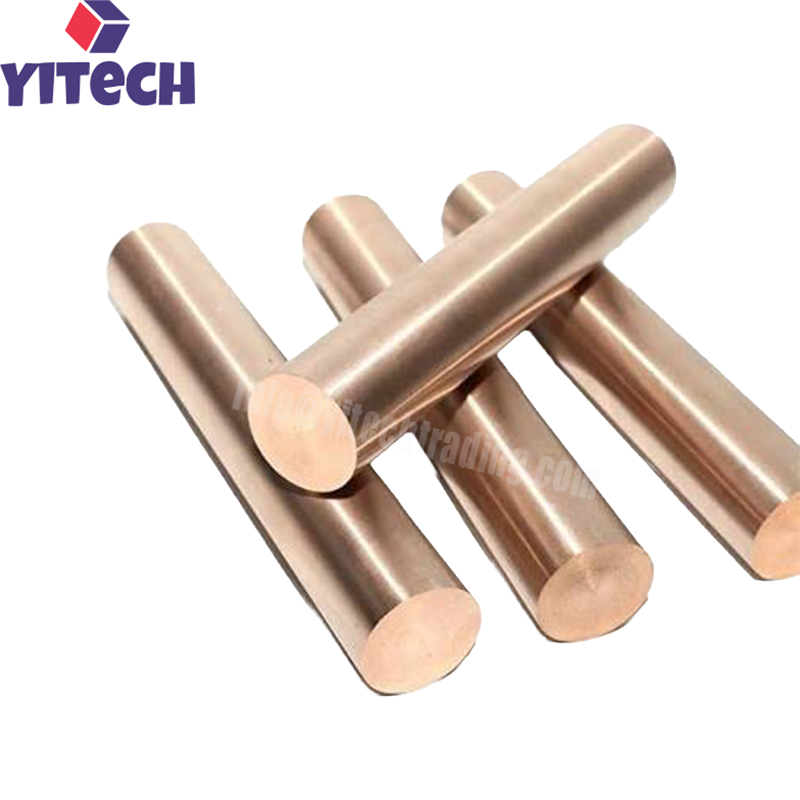

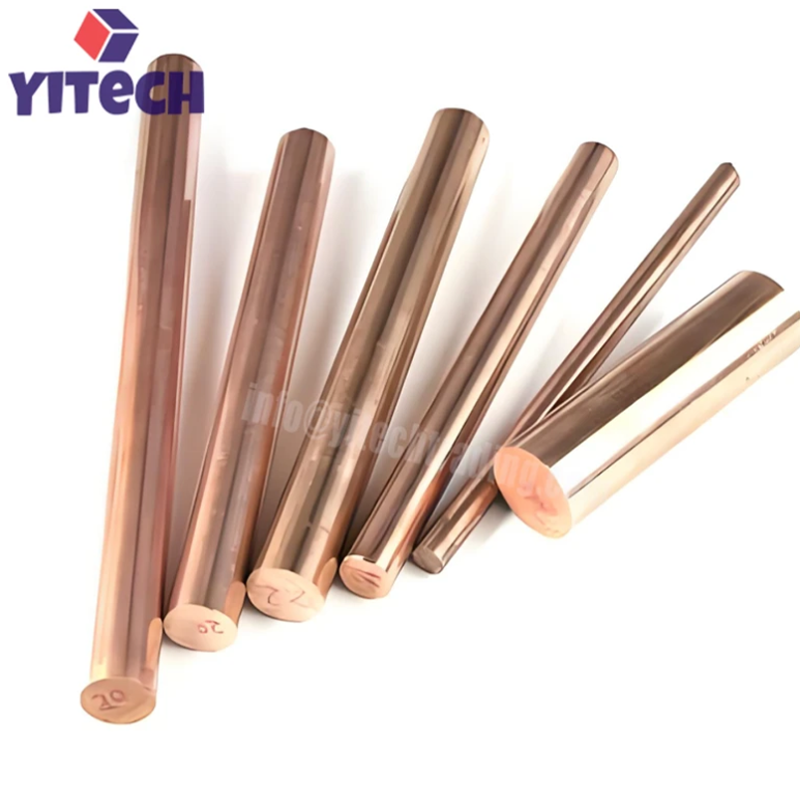

C17200 Beryllium Copper Round Bar ASTM B196
- High-strength C17200 beryllium copper round bar
- Manufactured to ASTM B196 standard
- UNS C17200 (also known as Alloy 25) with 1.8–2.0% beryllium
- Excellent electrical conductivity (22–28% IACS) and thermal conductivity
- Superior strength and hardness after age hardening
- Outstanding corrosion resistance and fatigue resistance
- Non-magnetic and non-sparking properties
- Available in TD04 (cold drawn + aged), TF00 (solution annealed + aged), and custom tempers
- Diameter range customizable
- Surface finishes: machined, polished, ground
- ISO 9001 certified manufacturing
Description Of C17200 Beryllium Copper Round Bar ASTM B196
C17200 Beryllium Copper Round Bar is a high-performance copper alloy round bar manufactured to ASTM B196 standard. C17200, also known as Alloy 25, contains 1.8–2.0% beryllium with the balance being copper. This alloy offers an exceptional combination of high strength, excellent electrical and thermal conductivity, and outstanding corrosion resistance, making it the most widely used beryllium copper alloy.
C17200 beryllium copper achieves its high strength through precipitation hardening (age hardening). After solution annealing and aging, the alloy develops tensile strength up to 1,400 MPa and hardness up to 40 HRC, while maintaining electrical conductivity of 22–28% IACS. This unique combination of properties makes C17200 ideal for applications requiring both high strength and good conductivity, such as springs, electrical connectors, and precision instruments.
C17200 beryllium copper round bars are available in a range of tempers including TD04 (cold drawn + aged) and TF00 (solution annealed + aged), with custom diameters and surface finishes available upon request. Typical applications include springs, connectors, switches, molds, and aerospace components.
Features Of C17200 Beryllium Copper Round Bar ASTM B196
High Strength: Tensile strength up to 1,400 MPa after age hardening.
High Hardness: Hardness up to 40 HRC after age hardening.
Excellent Electrical Conductivity: 22–28% IACS after age hardening.
Excellent Thermal Conductivity: 105–130 W/(m·K).
Outstanding Corrosion Resistance: Resists seawater, chlorides, and many chemicals.
Good Fatigue Resistance: Suitable for cyclic loading applications.
Non-Magnetic: Suitable for applications requiring non-magnetic properties.
Non-Sparking: Suitable for use in hazardous environments.
Multiple Tempers Available: TD04, TF00, and custom tempers.
Customizable Dimensions: Custom diameters and surface finishes available.
ISO 9001 Certified: Full traceability and quality assurance.
Specifications Of C17200 Beryllium Copper Round Bar ASTM B196
| Parameter | Specification |
|---|---|
| Material | Beryllium copper alloy |
| UNS Designation | C17200 (Alloy 25) |
| Standard | ASTM B196 |
| Beryllium Content | 1.80 – 2.00% |
| Density | 8.25 g/cm³ |
| Melting Point | 870°C |
| Tensile Strength | Up to 1,400 MPa (aged) |
| Yield Strength | Up to 1,200 MPa (aged) |
| Elongation | 1–10% (depending on temper) |
| Hardness | Up to 40 HRC (aged) |
| Electrical Conductivity | 22–28% IACS (aged) |
| Thermal Conductivity | 105–130 W/(m·K) |
| Thermal Expansion | 16.7 µm/(m·K) |
| Modulus of Elasticity | 128 GPa |
| Diameter Range | Customizable |
| Length | Customizable |
| Tempers | TD04, TF00, custom |
| Surface Finish | Machined, polished, ground |
| Product Standard | ASTM B196 |
| Certification | ISO 9001 |
