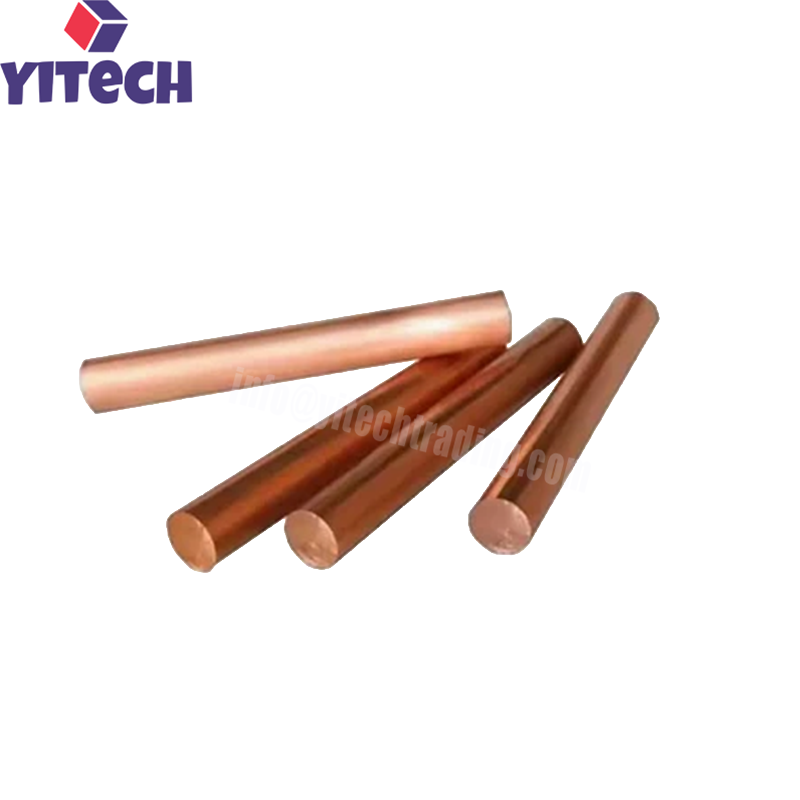

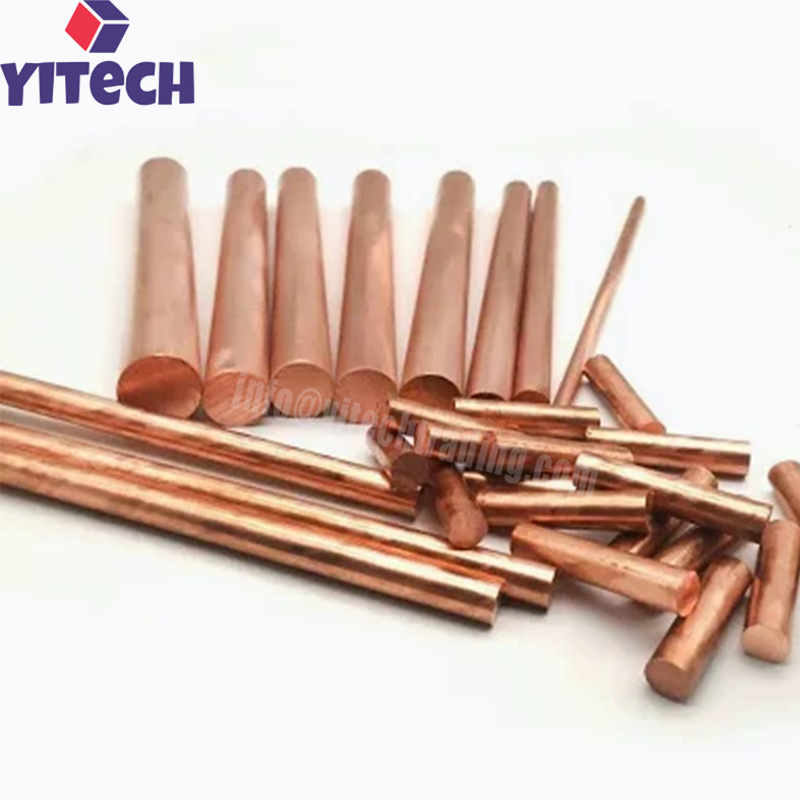

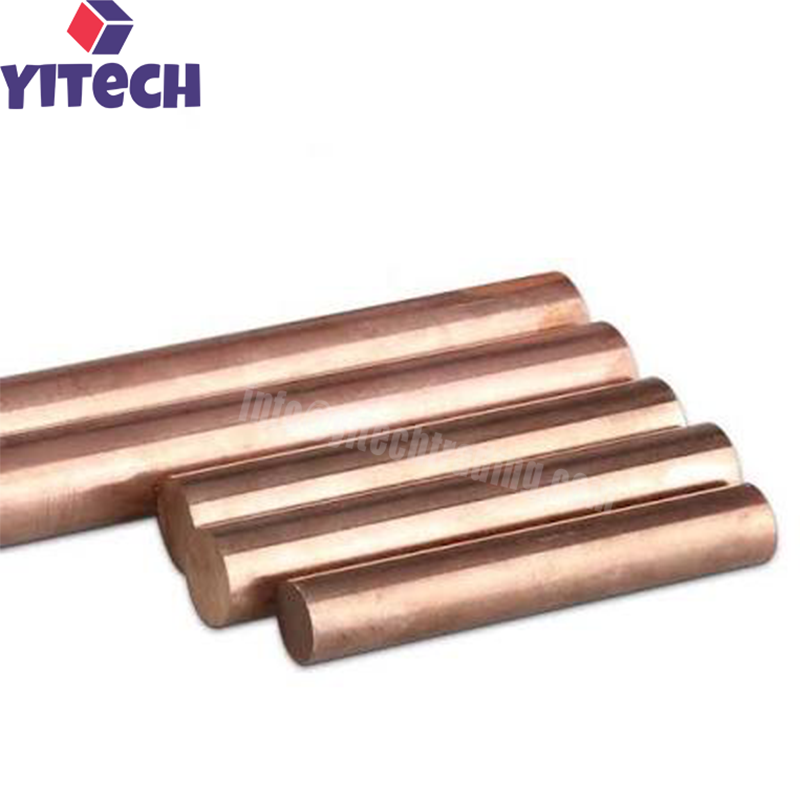

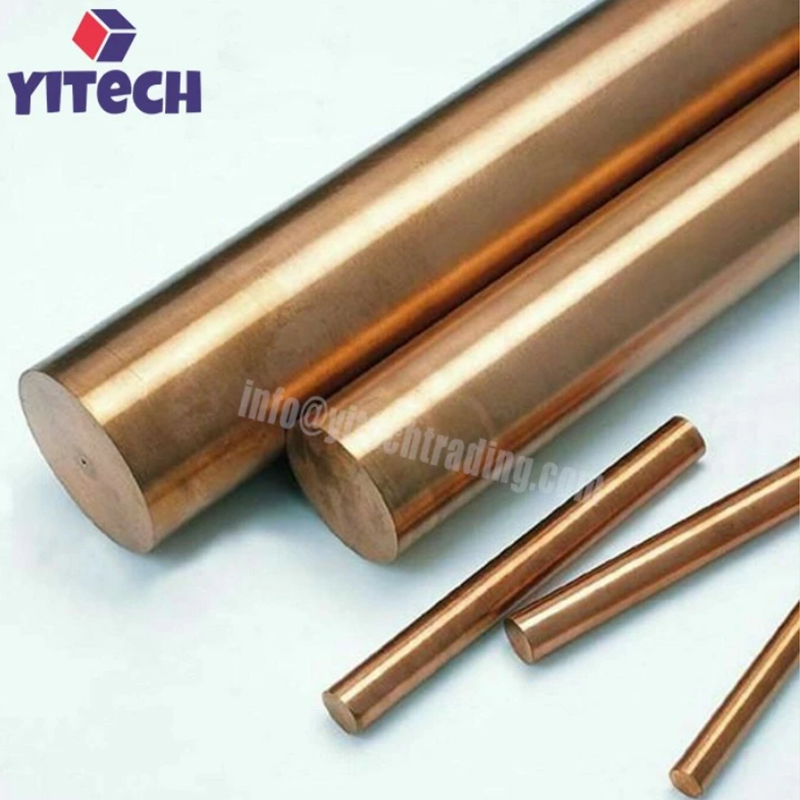

C17200 Beryllium Copper Rod ASTM B196

Description Of C17200 Beryllium Copper Rod ASTM B196

C17200 Beryllium Copper Rod is a high-performance copper alloy rod manufactured to ASTM B196 standard. C17200, also known as Alloy 25, contains 1.8–2.0% beryllium with the balance being copper. This alloy offers an exceptional combination of high strength, excellent electrical and thermal conductivity, and outstanding corrosion resistance, making it the most widely used beryllium copper alloy.

C17200 beryllium copper achieves its high strength through precipitation hardening (age hardening). After solution annealing and aging, the alloy develops tensile strength up to 1,400 MPa and hardness up to 40 HRC, while maintaining electrical conductivity of 22–28% IACS. This unique combination of properties makes C17200 ideal for applications requiring both high strength and good conductivity, such as springs, electrical connectors, molds, and precision instruments.

C17200 beryllium copper rods are available in a range of tempers including TD04 (cold drawn + aged) and TF00 (solution annealed + aged), with custom diameters and surface finishes available upon request. Typical applications include springs, connectors, switches, molds, and aerospace components.

Features Of C17200 Beryllium Copper Rod ASTM B196

• High Strength: Tensile strength up to 1,400 MPa after age hardening.

• High Hardness: Hardness up to 40 HRC after age hardening.

• Excellent Electrical Conductivity: 22–28% IACS after age hardening.

• Excellent Thermal Conductivity: 105–130 W/(m·K).

• Outstanding Corrosion Resistance: Resists seawater, chlorides, and many chemicals.

• Good Fatigue Resistance: Suitable for cyclic loading applications.

• Non-Magnetic: Suitable for applications requiring non-magnetic properties.

• Non-Sparking: Suitable for use in hazardous environments.

• Multiple Tempers Available: TD04, TF00, and custom tempers.

• Customizable Dimensions: Custom diameters and surface finishes available.

• ISO 9001 Certified: Full traceability and quality assurance.

Applications Of C17200 Beryllium Copper Rod ASTM B196

• Springs and Spring Contacts: C17200 beryllium copper rods are used for springs, spring contacts, and leaf springs, benefiting from their high strength and fatigue resistance.

• Electrical Connectors and Switches: Used for electrical connectors, switches, relays, and contactors, benefiting from their high conductivity and strength.

• Molds and Tooling: Used for plastic molds, blow molds, and die-casting inserts, benefiting from their high thermal conductivity and wear resistance.

• Precision Instruments: Used for precision instruments, gauges, and measuring equipment.

• Aerospace and Defense: Used for aircraft components, missile systems, and defense applications requiring high strength and non-magnetic properties.

• Oil and Gas: Used for downhole tools and valve components, benefiting from their non-sparking and corrosion-resistant properties.

• Medical Devices: Used for medical instruments, surgical tools, and implant components.

Specifications Of C17200 Beryllium Copper Rod ASTM B196
