ASTM B521 Tantalum Tube R05200
- Manufactured to ASTM B521 / ASME SB-521 standard
- UNS R05200 (pure tantalum) with purity ≥99.95%
- Melting point 2996°C — the fourth-highest among all metals
- Density 16.6 g/cm³ with excellent dimensional stability
- Outstanding corrosion resistance to acids, alkalis, and most chemical media
- Excellent biocompatibility for medical implant and device applications
- Seamless and welded construction available
- Custom outer diameter, wall thickness, and length available
- Surface finishes: bright, pickled, polished, annealed
Description Of ASTM B521 Tantalum Tube R05200

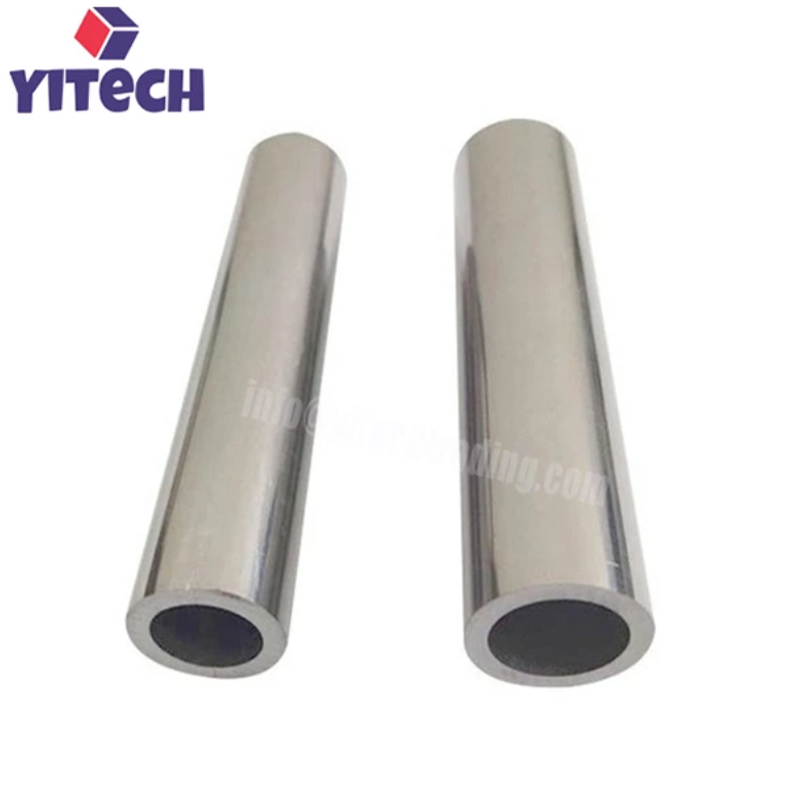

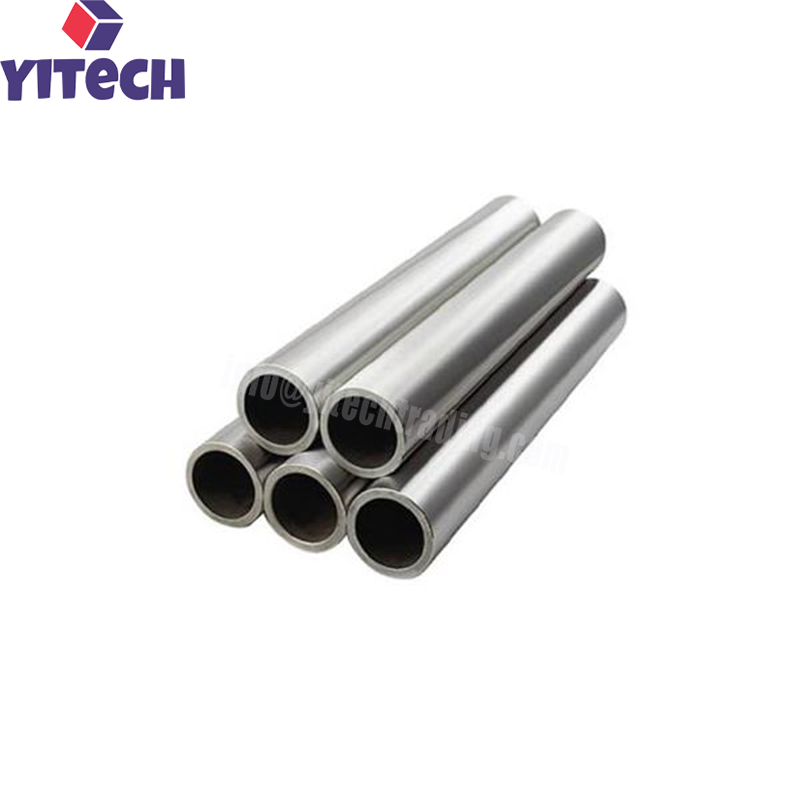

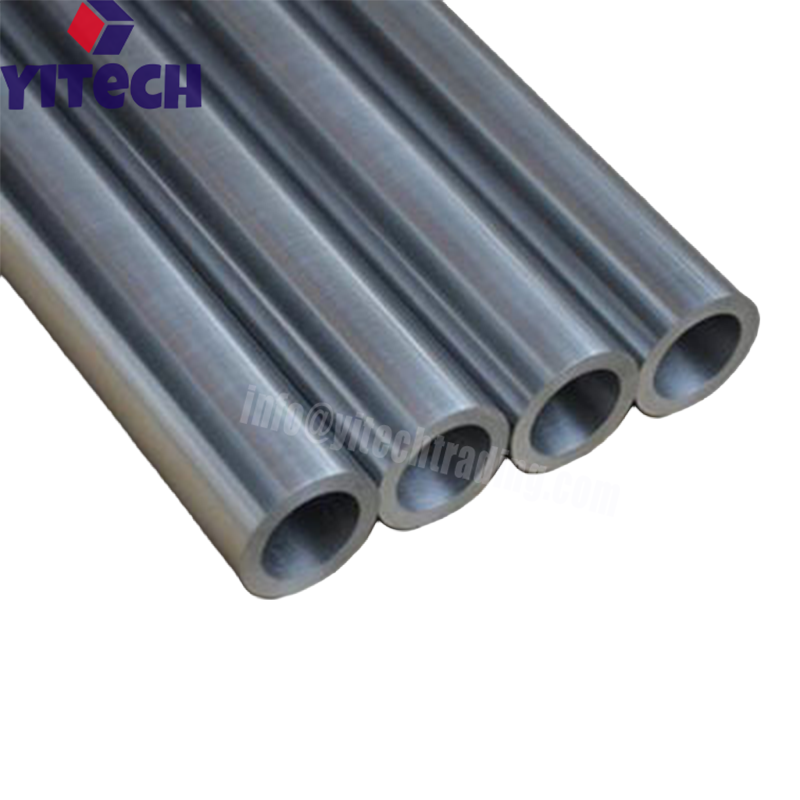

ASTM B521 Tantalum Tube R05200 is a seamless or welded tubular product manufactured from pure tantalum (UNS R05200) to ASTM B521 standard. Tantalum is a silver-grey refractory metal with a melting point of 2996°C, excellent corrosion resistance, and superior biocompatibility. These tubes are widely used in chemical processing equipment, medical devices, and analytical instruments.
Tantalum offers a unique combination of properties that make it ideal for tube applications. With a melting point of 2996°C (the fourth-highest among all metals, after tungsten, rhenium, and osmium), tantalum tubes can withstand extreme temperatures. The material also offers outstanding corrosion resistance to acids, alkalis, and most chemical media, and it is biocompatible, making it suitable for medical implant and device applications.
ASTM B521 tantalum tubes are available in custom outer diameters, wall thicknesses, and lengths, with surface finishes including bright, pickled, polished, and annealed. Typical applications include chemical processing equipment, medical devices, analytical instruments, and high-temperature sensors.
Features Of ASTM B521 Tantalum Tube R05200
High Purity: Purity ≥99.95%, ensuring minimal contamination in critical applications.
ASTM B521 Compliant: Manufactured to ASTM B521 / ASME SB-521 standard for tantalum and tantalum alloy tube.
High Melting Point: 2996°C, the fourth-highest among all metals.
Excellent Corrosion Resistance: Resists acids, alkalis, and most chemical media.
Excellent Biocompatibility: Suitable for medical implant and device applications.
Seamless and Welded Construction: Available in both configurations to suit different pressure and cost requirements.
Customizable Dimensions: Custom outer diameter, wall thickness, and length available.
Surface Finishes: Bright, pickled, polished, annealed.
ISO 9001 Certified: Full traceability and quality assurance.
Specifications Of ASTM B521 Tantalum Tube R05200
| Parameter | Specification |
|---|---|
| Material | Tantalum (Ta) |
| UNS Designation | R05200 |
| Standard | ASTM B521 / ASME SB-521 |
| Purity | ≥99.95% |
| Density | 16.6 g/cm³ |
| Melting Point | 2996°C |
| Boiling Point | 5425°C |
| Young's Modulus | 186 GPa |
| Thermal Conductivity | 57.5 W/(m·K) |
| Thermal Expansion | 6.3 µm/(m·K) |
| Outer Diameter (OD) | Customizable |
| Wall Thickness (WT) | Customizable |
| Length | Customizable |
| Construction | Seamless / Welded |
| Surface Finish | Bright, pickled, polished, annealed |
| Product Standard | ASTM B521 / ASME SB-521 |
| Certification | ISO 9001 |
