Stellite 6B Alloy Rod | Cobalt-Based Alloy Bar Supplier

Description Of Stellite 6B Alloy Rod

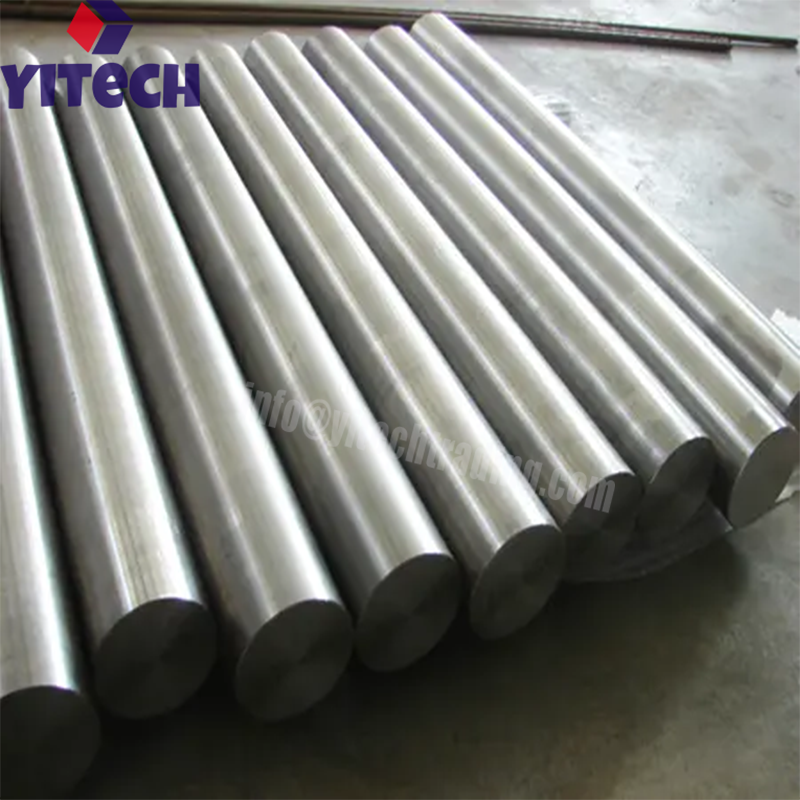

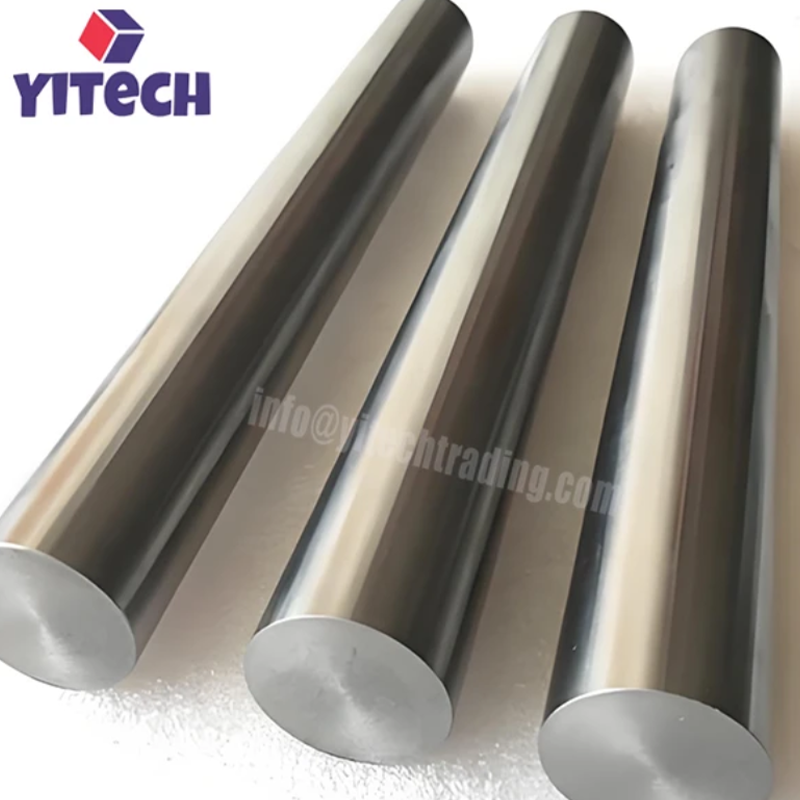

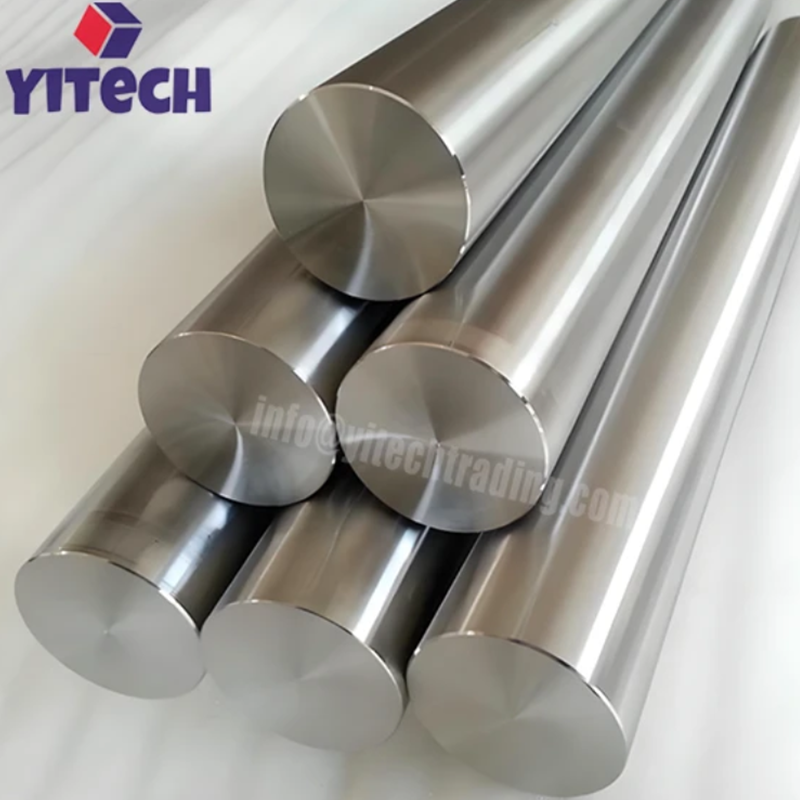

Stellite 6B Alloy Rod is a high-performance rod manufactured from Stellite 6B, a cobalt-chromium-tungsten alloy known for its exceptional wear resistance, corrosion resistance, and high-temperature strength. As a cobalt-based alloy bar supplier, we provide Stellite 6B rods in custom diameters and lengths tailored to specific application requirements.

Stellite 6B is a variant of the Stellite 6 family, with a slightly higher carbon content that provides increased hardness and wear resistance. The alloy contains approximately 30% chromium, 4.5% tungsten, and 1.2% carbon, offering outstanding resistance to abrasion, erosion, and galling. The material maintains its hardness and mechanical properties at elevated temperatures, making it ideal for high-wear and high-temperature applications.

Stellite 6B alloy rods are available in custom diameters and lengths, with surface finishes including machined, ground, and polished. Typical applications include valve components, pump sleeves, cutting tools, and wear-resistant parts.

Features Of Stellite 6B Alloy Rod

• Excellent Wear Resistance: Stellite 6B offers superior resistance to abrasion, erosion, and galling.

• Outstanding Corrosion Resistance: Resists harsh chemicals, acids, and seawater.

• Superior High-Temperature Strength: Maintains hardness and mechanical properties at elevated temperatures.

• High Hardness: Slightly higher carbon content provides increased hardness compared to Stellite 6.

• Good Impact Resistance: Cobalt matrix provides toughness to withstand impact loads.

• Non-Sparking: Suitable for use in hazardous environments.

• Customizable Dimensions: Custom diameters and lengths available.

• Surface Finishes: Machined, ground, polished.

Applications Of Stellite 6B Alloy Rod

• Valve Components: Stellite 6B rods are used for valve seats, valve balls, and valve trim in high-wear and high-pressure valves.

• Pump Components: Used for pump sleeves, wear rings, and bushings in centrifugal and positive displacement pumps.

• Cutting Tools: Used for cutting tool inserts, blades, and knives requiring high wear resistance.

• Wear-Resistant Parts: Used for wear plates, liners, and bushings in mining and material handling equipment.

• Oil and Gas: Used for downhole tools and surface equipment requiring wear and corrosion resistance.

• Chemical Processing: Used for components handling corrosive chemicals, acids, and slurries.

Specifications Of Stellite 6B Alloy Rod
