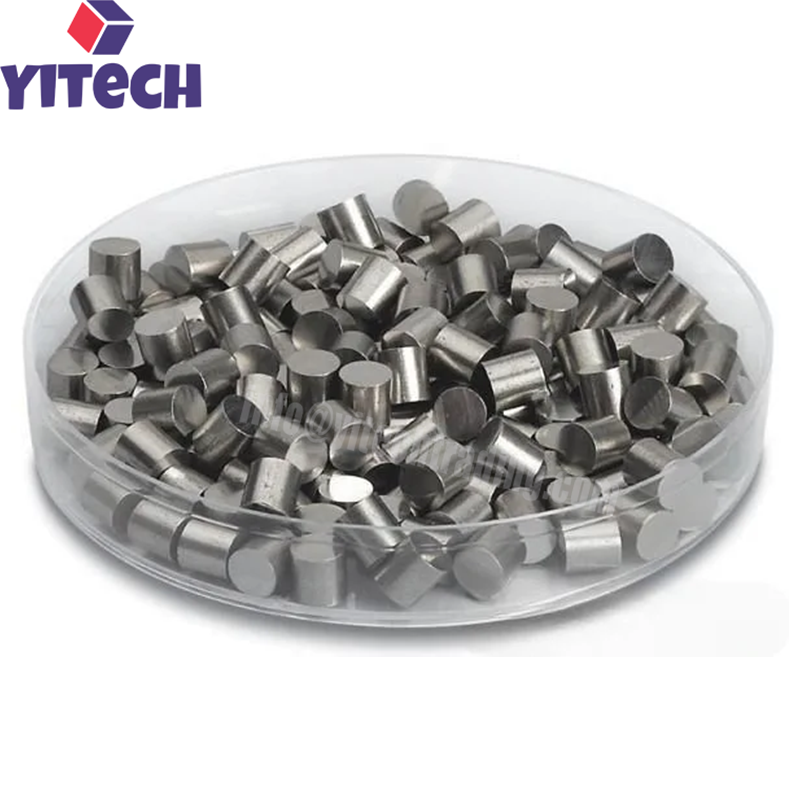

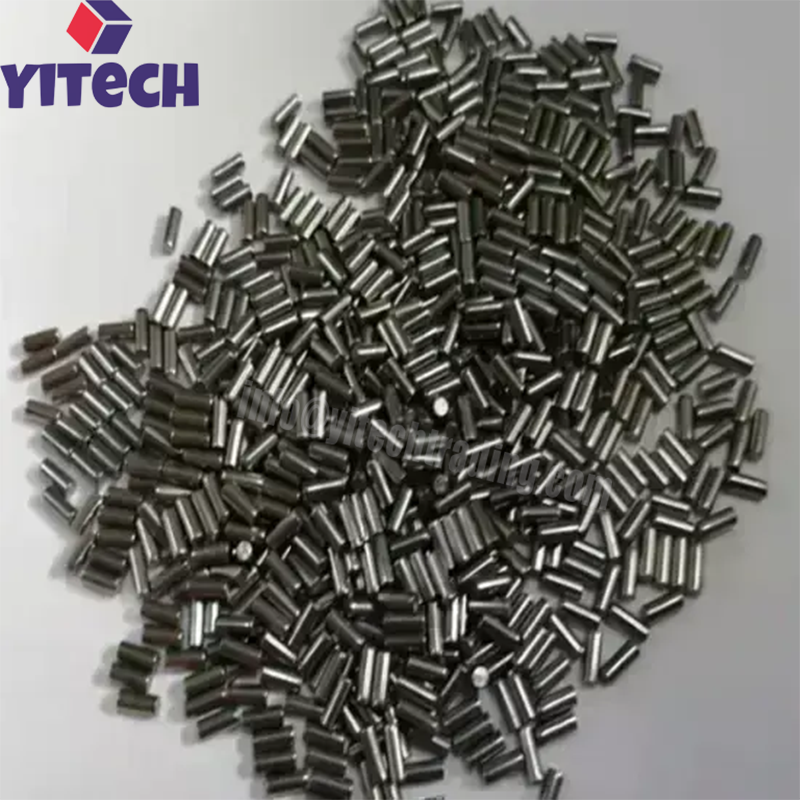

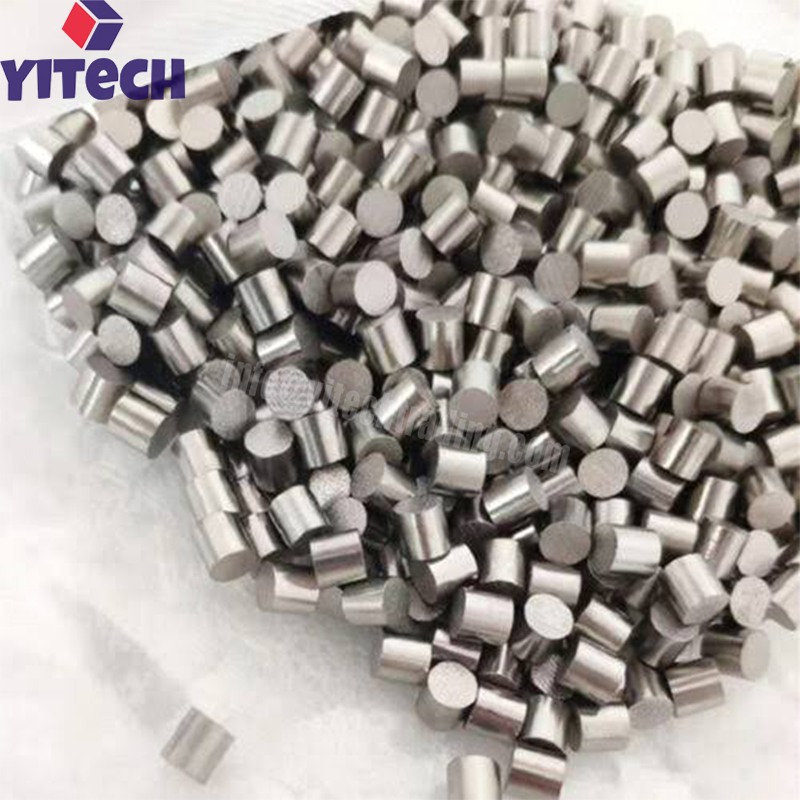

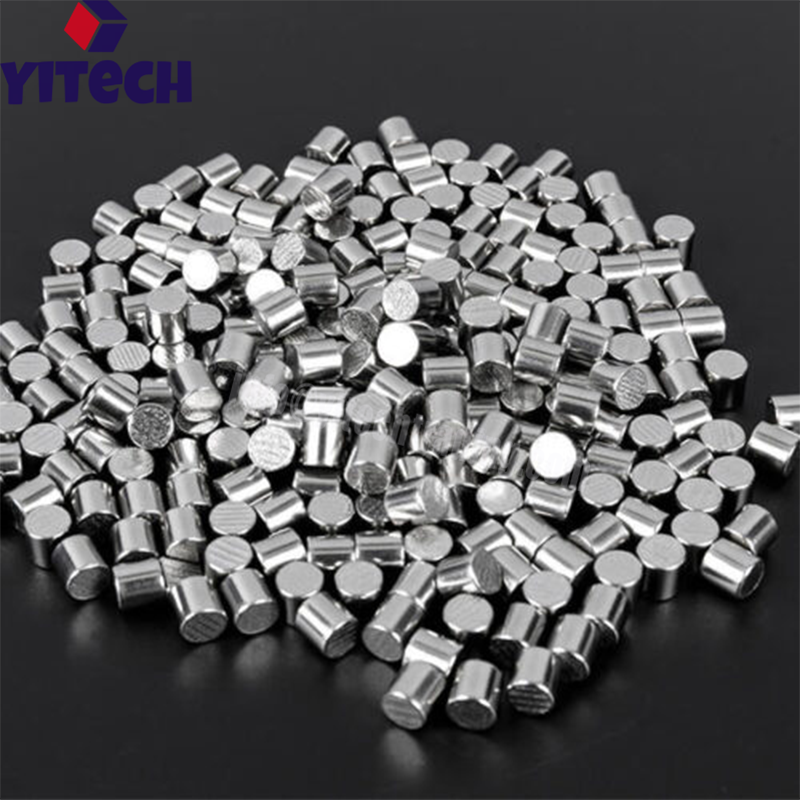

High Purity Cobalt Pellets 99.95% | Evaporation Co Pellets
- High-purity cobalt pellets with 99.95% purity
- Specifically designed for vacuum evaporation and thin-film deposition (PVD)
- Excellent thermal stability and low outgassing
- Uniform evaporation and consistent film thickness
- Low magnetic impurity content for magnetic thin film applications
- Custom sizes and weights available per customer requirements
- Surface finishes: bright, pickled, polished
- Ideal for semiconductor, optical coatings, and magnetic thin films
Description Of High Purity Cobalt Pellets 99.95%
High Purity Cobalt Pellets 99.95% are high-purity cobalt granules specifically designed for vacuum evaporation and thin-film deposition processes. Cobalt pellets are widely used as an evaporation source in physical vapor deposition (PVD) systems, including electron beam evaporation, thermal evaporation, and sputtering.
Cobalt offers excellent thermal stability, low vapor pressure, and uniform evaporation characteristics. The 99.95% purity ensures minimal contamination and stable film properties, which are critical for semiconductor, optical, and magnetic thin-film applications. The pellets are available in custom sizes and weights to suit different evaporation sources and crucibles.
High purity cobalt pellets are widely used in semiconductor interconnects, magnetic thin films, optical coatings, and various electronic devices. Typical applications include electron beam evaporation, thermal evaporation, and sputtering processes.
Features Of High Purity Cobalt Pellets 99.95%
High Purity: 99.95% purity, ensuring minimal contamination and stable film properties.
Excellent Thermal Stability: Cobalt offers excellent thermal stability and low vapor pressure.
Uniform Evaporation: Pellets provide uniform evaporation and consistent film thickness.
Low Outgassing: High purity and low impurity content minimize outgassing during evaporation.
Customizable Dimensions: Custom sizes and weights available.
Surface Finishes: Bright, pickled, polished.
Precautions Of High Purity Cobalt Pellets 99.95%
Health Hazards: Cobalt dust and fumes may cause allergic reactions or respiratory issues. Use in well-ventilated areas. Wear appropriate personal protective equipment (PPE), including gloves and respirators.
Handling and Storage: Handle with care to avoid surface contamination or mechanical damage. Store in a dry, clean environment.
Evaporation Parameters: Optimize evaporation power, pressure, and substrate temperature for the specific film requirements.
Cleaning: Clean with a soft cloth or mild solvent. Avoid abrasive cleaners that could damage the surface.
Specifications Of High Purity Cobalt Pellets 99.95%
| Parameter | Specification |
|---|---|
| Material | Cobalt (Co) |
| Purity | ≥99.95% |
| Density | 8.9 g/cm³ |
| Melting Point | 1495°C |
| Pellet Size | Customizable |
| Pellet Weight | Customizable |
| Surface Finish | Bright, pickled, polished |
