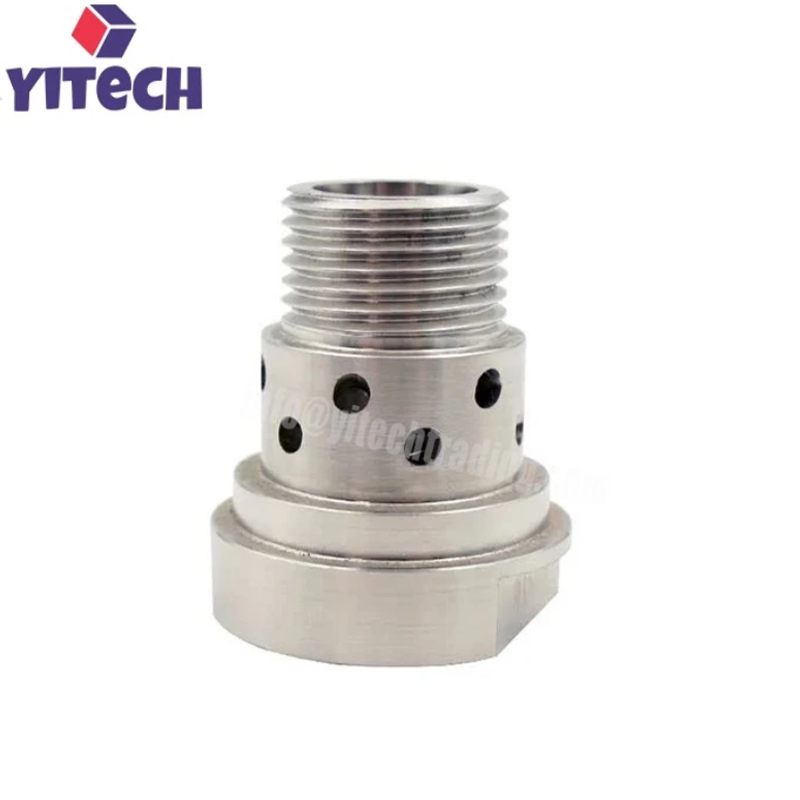

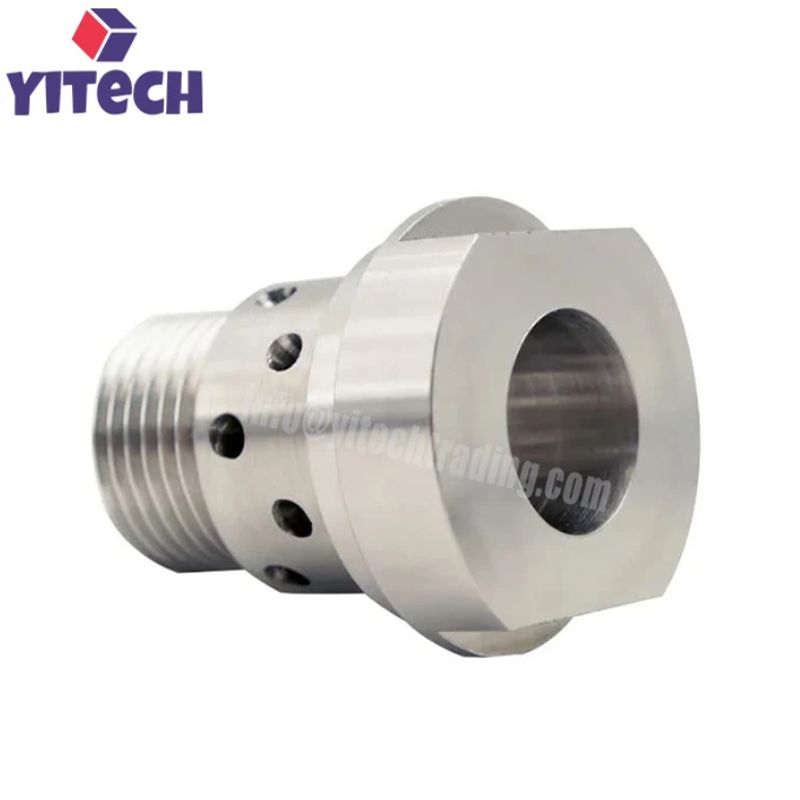

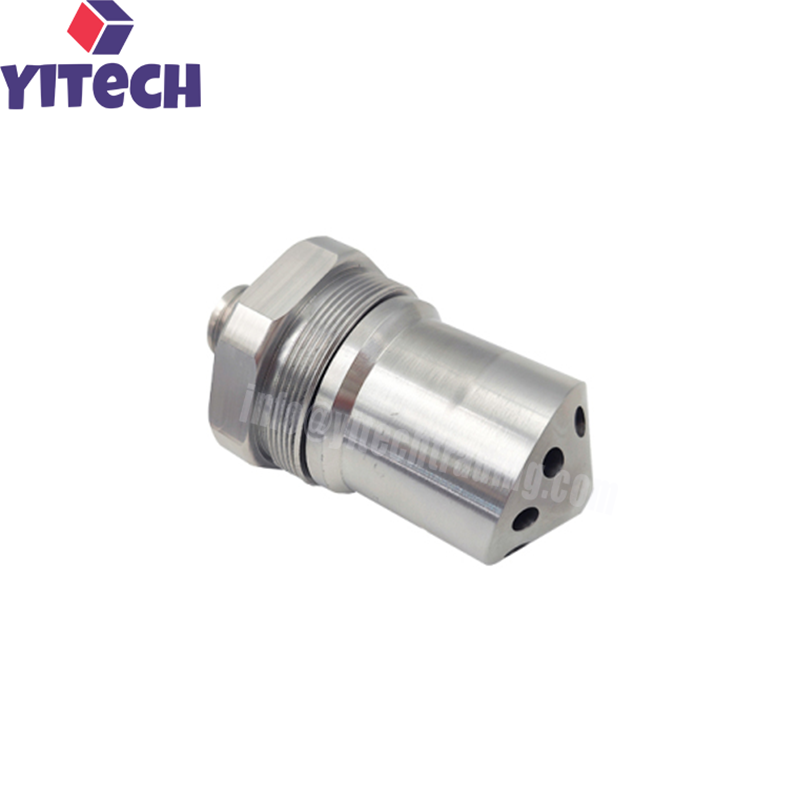

Cobalt Chrome Alloy Nozzle
- High-performance cobalt chrome alloy nozzle
- Manufactured from wear-resistant CoCr alloy (Stellite 6/12 or custom grades)
- Excellent abrasion resistance and erosion resistance
- Outstanding corrosion resistance in harsh environments
- Superior high-temperature strength and creep resistance
- Maintains hardness at elevated temperatures
- Ideal for sandblasting, thermal spraying, and fluid control
- Custom sizes and configurations available per customer requirements
- Surface finishes: machined, ground, polished
Description Of Cobalt Chrome Alloy Nozzle
Cobalt Chrome Alloy Nozzle is a high-performance nozzle manufactured from cobalt-chromium alloy, known for its exceptional wear resistance, corrosion resistance, and high-temperature strength. Cobalt chrome alloys, such as Stellite 6 and Stellite 12, are widely used in nozzle applications where severe abrasion, erosion, and high temperatures are present.
The cobalt chrome alloy provides outstanding resistance to abrasion and erosion, making these nozzles ideal for sandblasting, thermal spraying, and fluid control applications. The material maintains its hardness and mechanical properties at elevated temperatures, ensuring reliable performance in demanding environments.
Cobalt chrome alloy nozzles are available in custom sizes and configurations, with surface finishes including machined, ground, and polished. Typical applications include sandblasting nozzles, thermal spray nozzles, and fluid control nozzles.
Features Of Cobalt Chrome Alloy Nozzle
Excellent Wear Resistance: Cobalt chrome alloys offer superior resistance to abrasion, erosion, and galling.
Outstanding Corrosion Resistance: Resists harsh chemicals, acids, and seawater.
Superior High-Temperature Strength: Maintains hardness and mechanical properties at elevated temperatures.
Good Impact Resistance: Cobalt matrix provides toughness to withstand impact loads.
Non-Sparking: Suitable for use in hazardous environments.
Customizable Dimensions: Custom sizes and configurations available.
Specifications Of Cobalt Chrome Alloy Nozzle
| Parameter | Specification |
|---|---|
| Material | Cobalt-chromium alloy (Stellite 6 / 12) |
| Density | 8.44 g/cm³ |
| Melting Point | 1,285 – 1,350°C |
| Hardness | 38 – 48 HRC (depending on grade) |
| Tensile Strength | Up to 900 MPa |
| Yield Strength | Up to 700 MPa |
| Elongation | < 1% |
| Nozzle Size | Customizable |
| Nozzle Configuration | Customizable |
| Surface Finish | Machined, ground, polished |
